Home >> Eagle >> 1990 >> Premier LX >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Wiring Diagrams

Wiring Diagrams

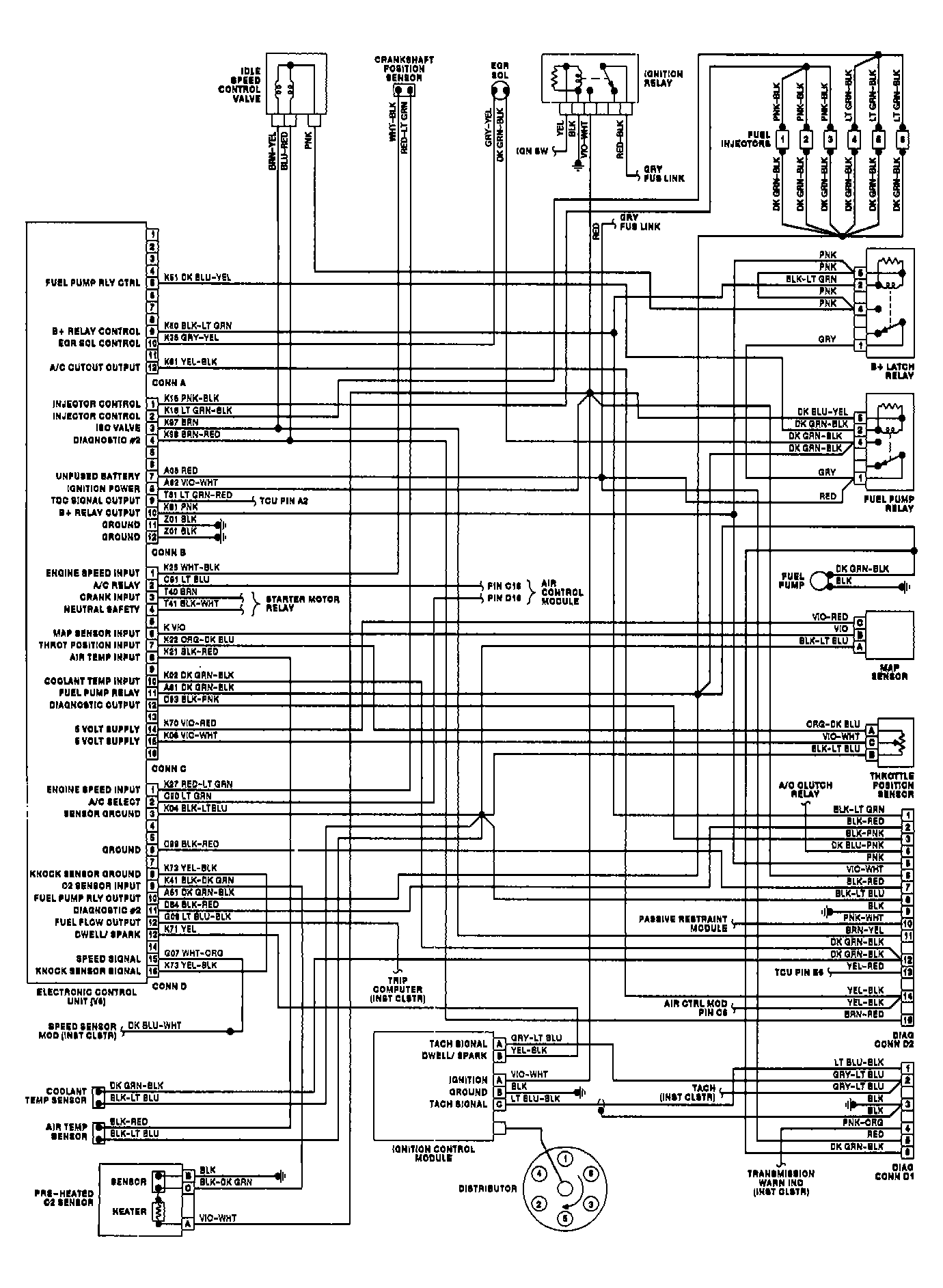

Fig 1: Monaco & Premier PFI System Wiring Diagram

G90H13323
