Component Location
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Carrier Switch "A" | In The Motor Assembly |
| Carrier Switch "B" | In Lock Box On Track Assembly |
| Chime Module | Behind Dash, Left Of Steering Column. |
| Fuse Box | Lower Left Side Of Dash, Near Parking Brake Release Lever. |
| Motor Relays | Under Front Seat Of Side They Control |
| Seat Belt Control Module | In The Trunk |

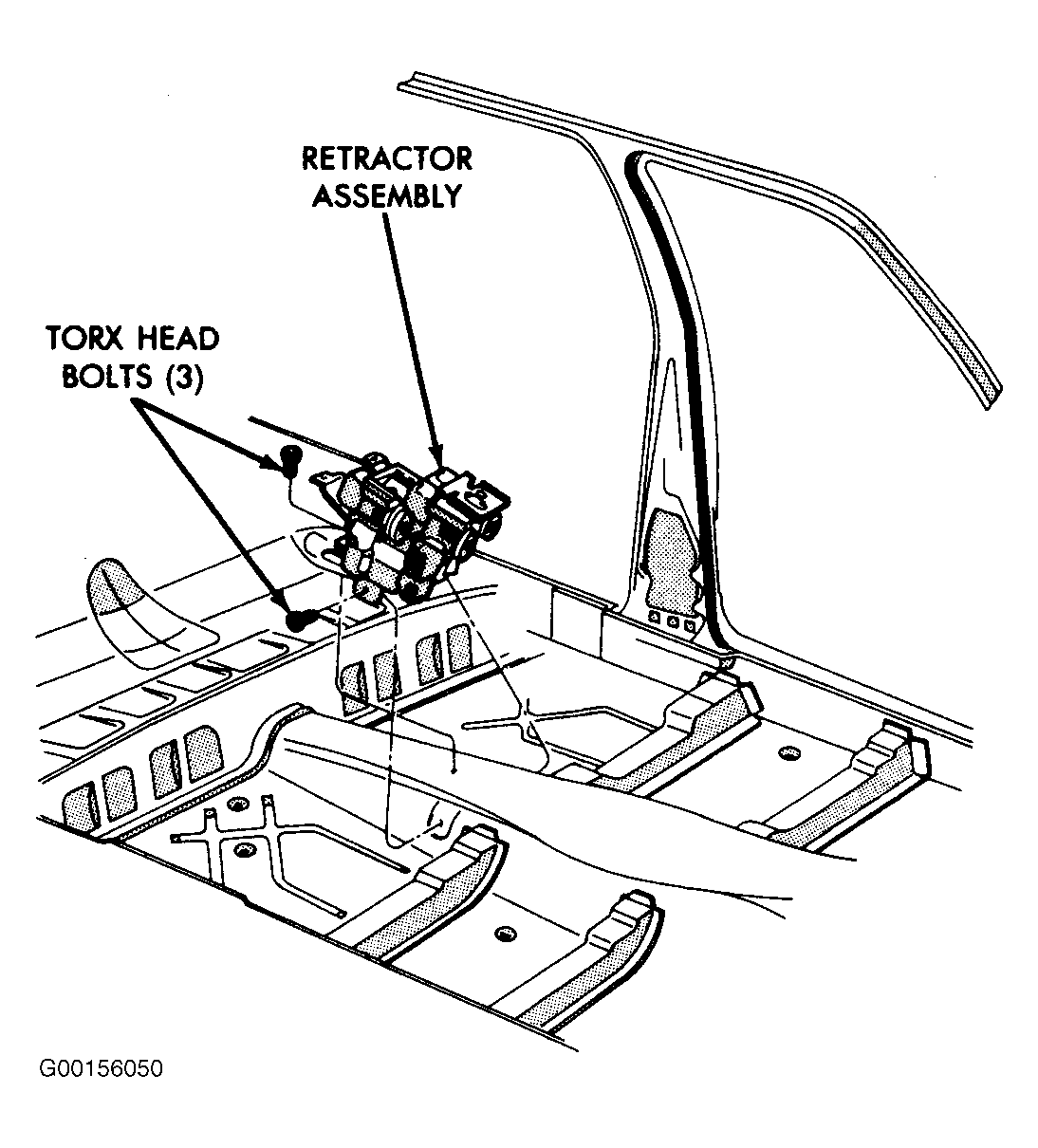

| Shoulder Belt Retractor Switch | Shoulder Belt Retractor Assembly. See Figure . |
