Fault 1222: Ignition Control Module Not Grounded

Fig 1: Fault 1222: Circuit Diagram

G90B16148

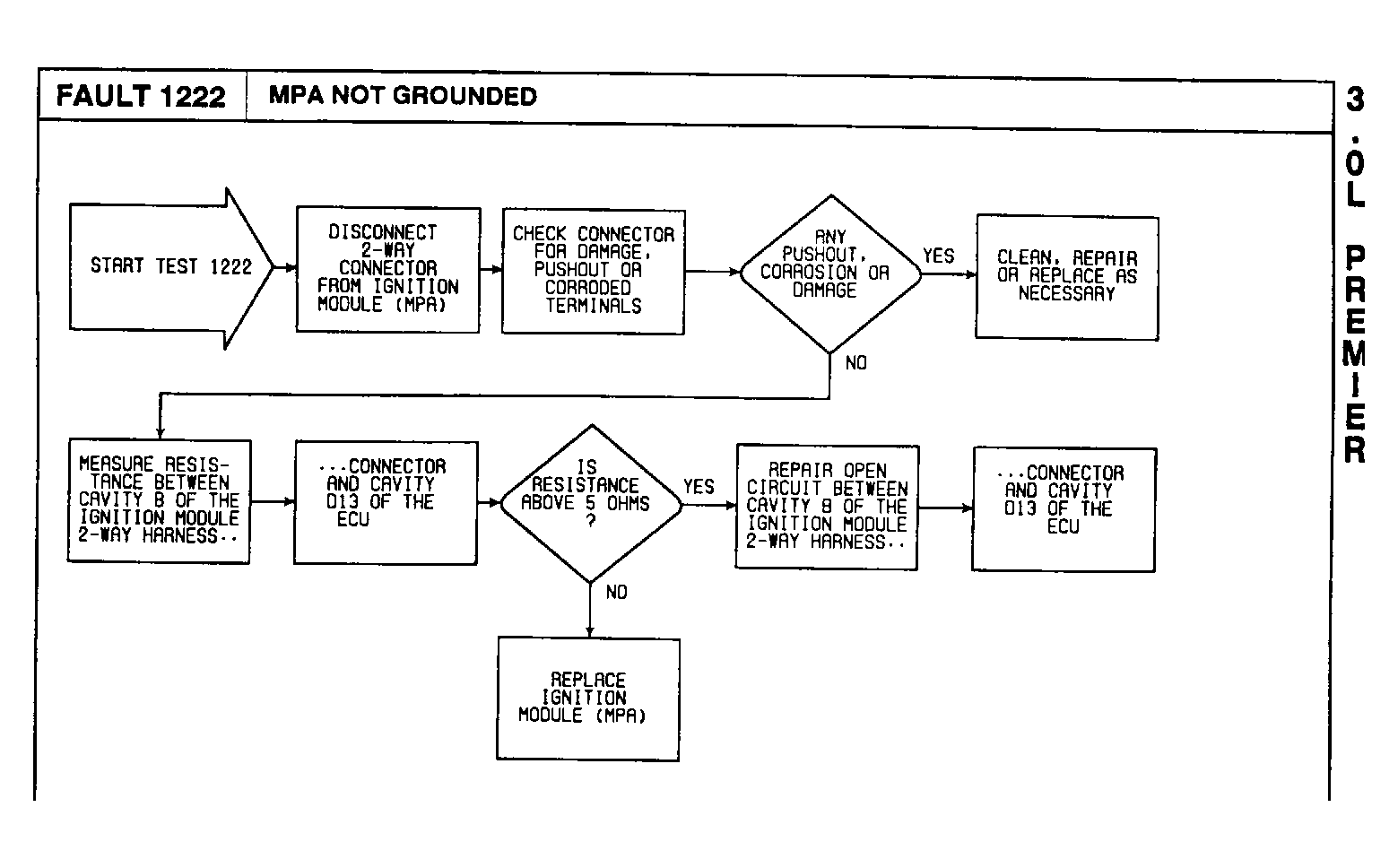

Fig 2: Fault 1222: Flow Chart

G90C03212
