Fault 1017: Mat Sensor Line High
Fault 1017: Mat Sensor Line High
Fig 1: Fault 1017: Circuit Diagram

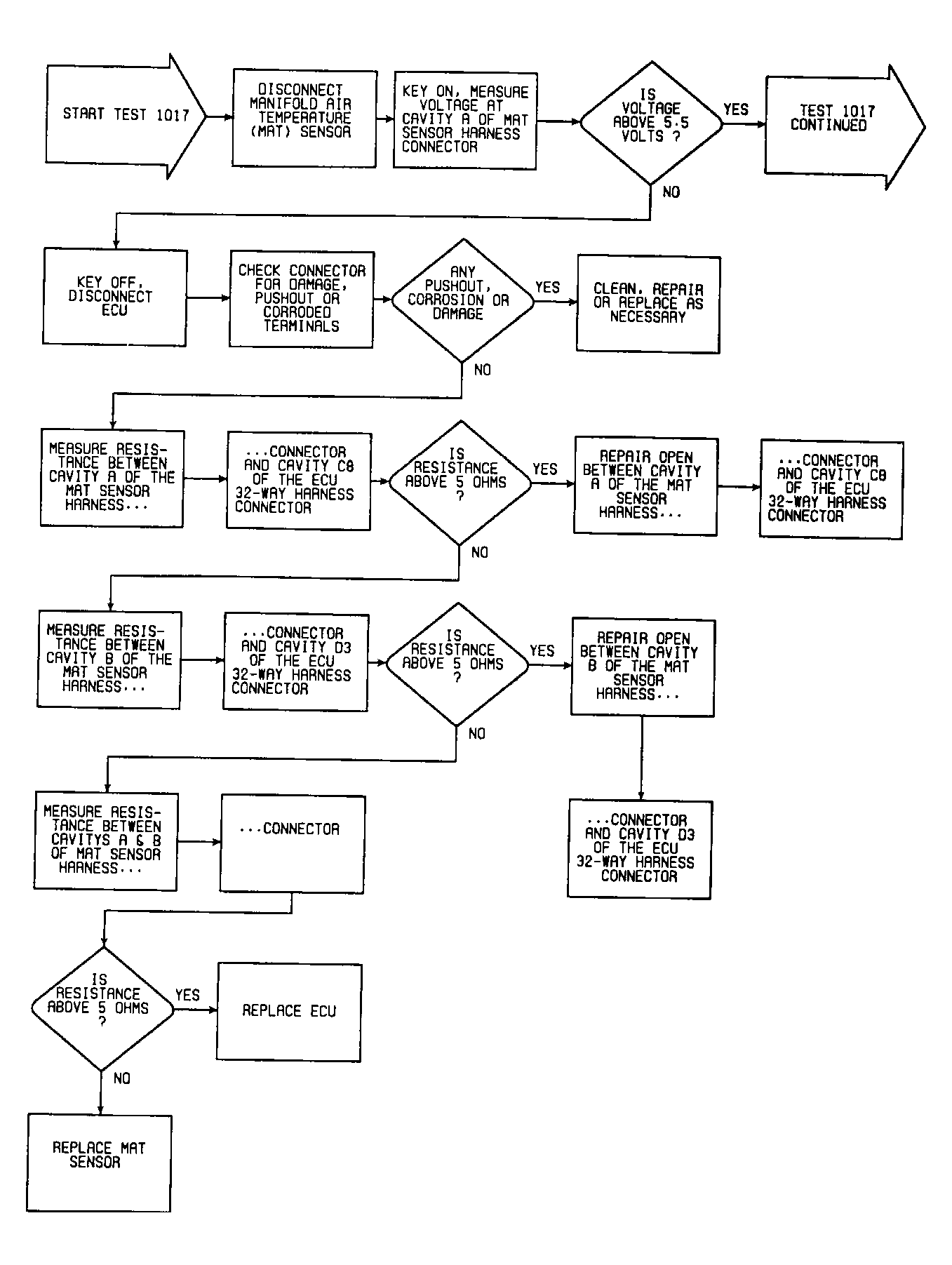

Fig 2: Fault 1017: Flow Chart (1 of 2)

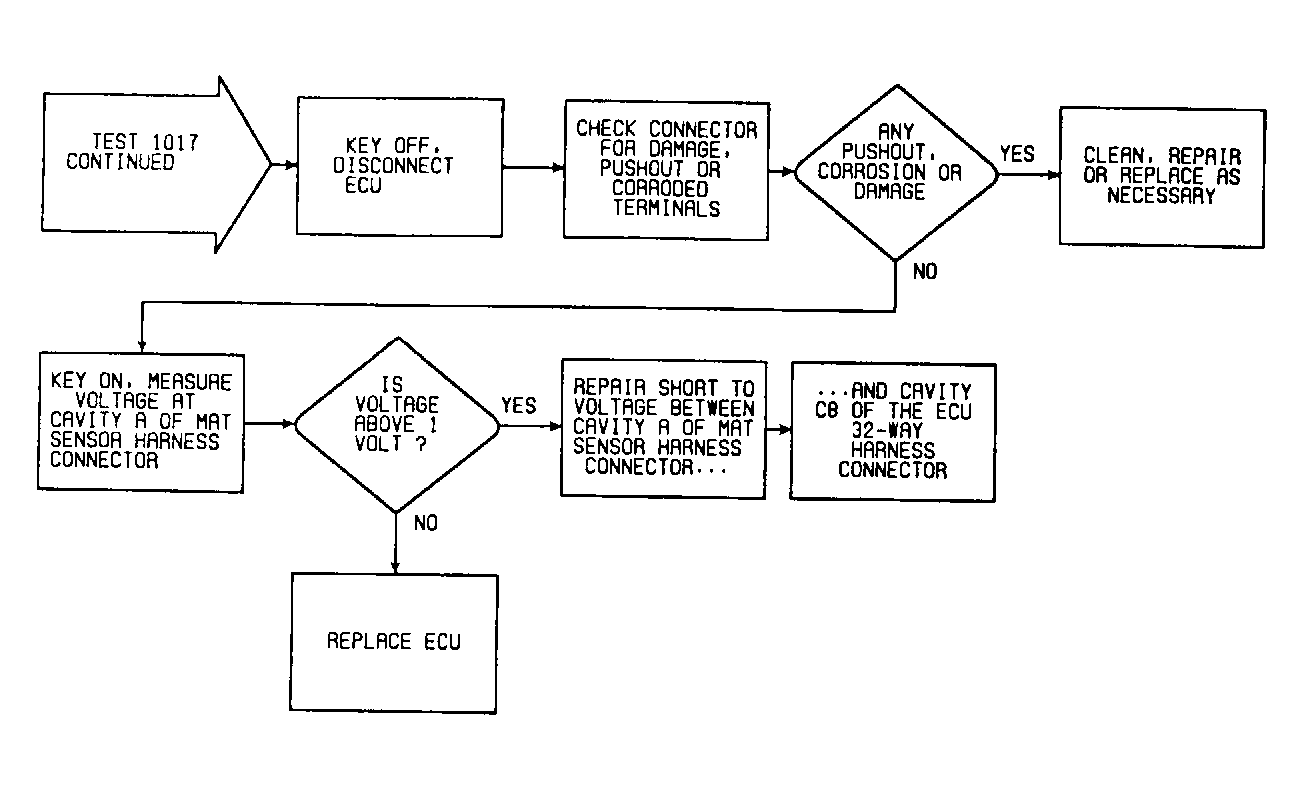

Fig 3: Fault 1017: Flow Chart (2 of 2)
