Fault 1016: Mat Sensor Line Low

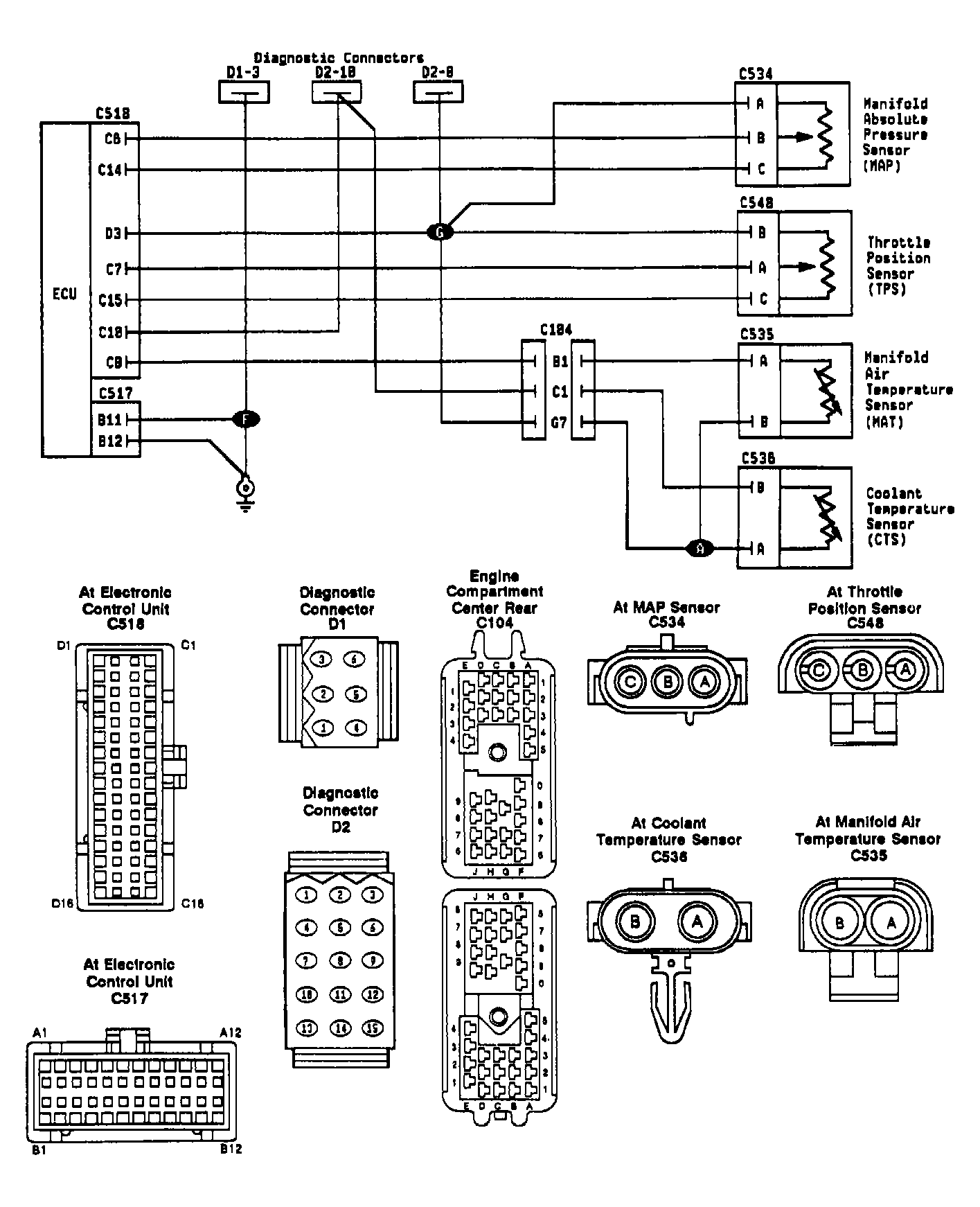

Fig 1: Fault 1016: Circuit Diagram

G90A16147

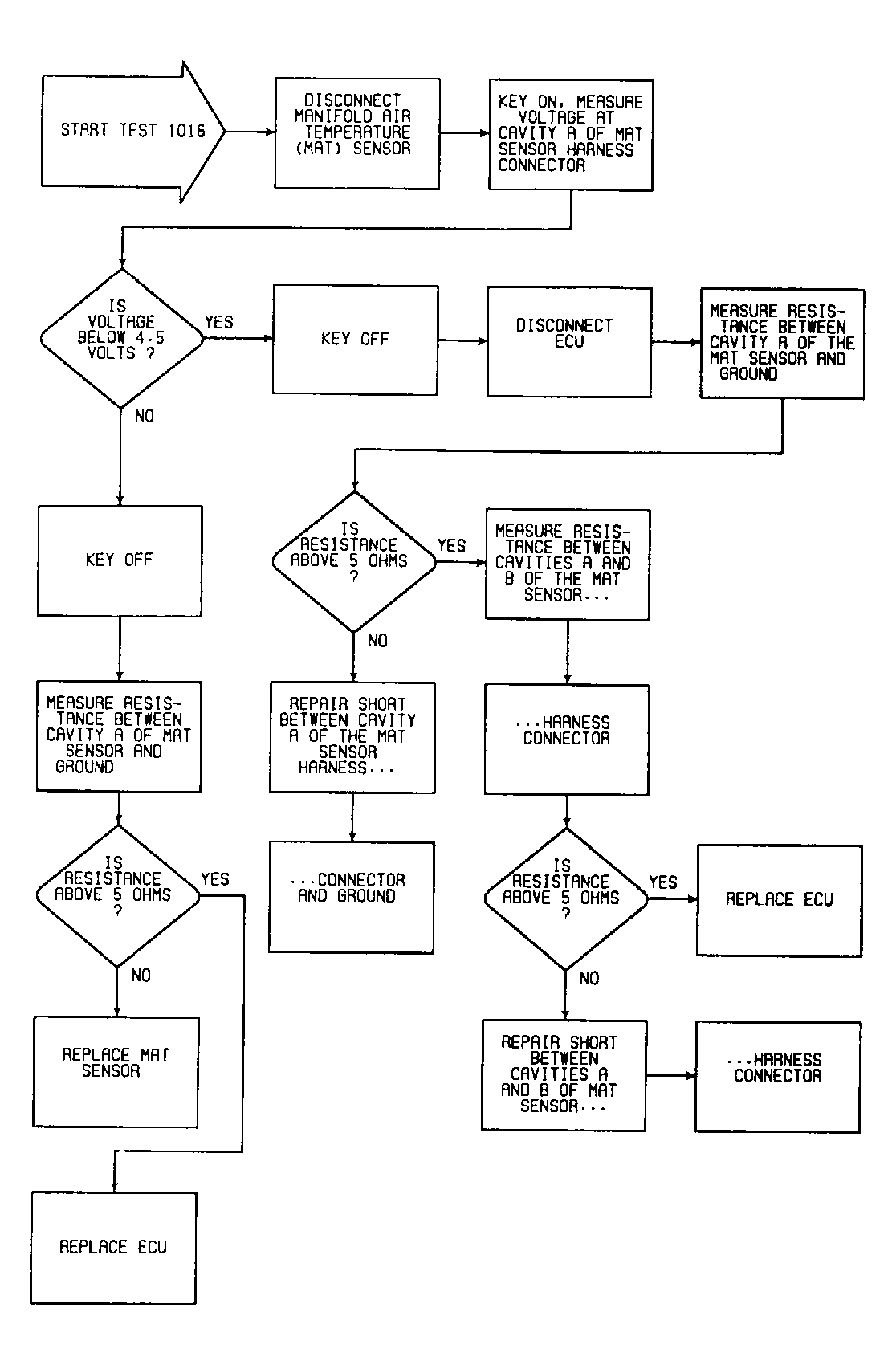

Fig 2: Fault 1016: Flow Chart

G90D03137
