Diagnosing With DRB-II & Adapter

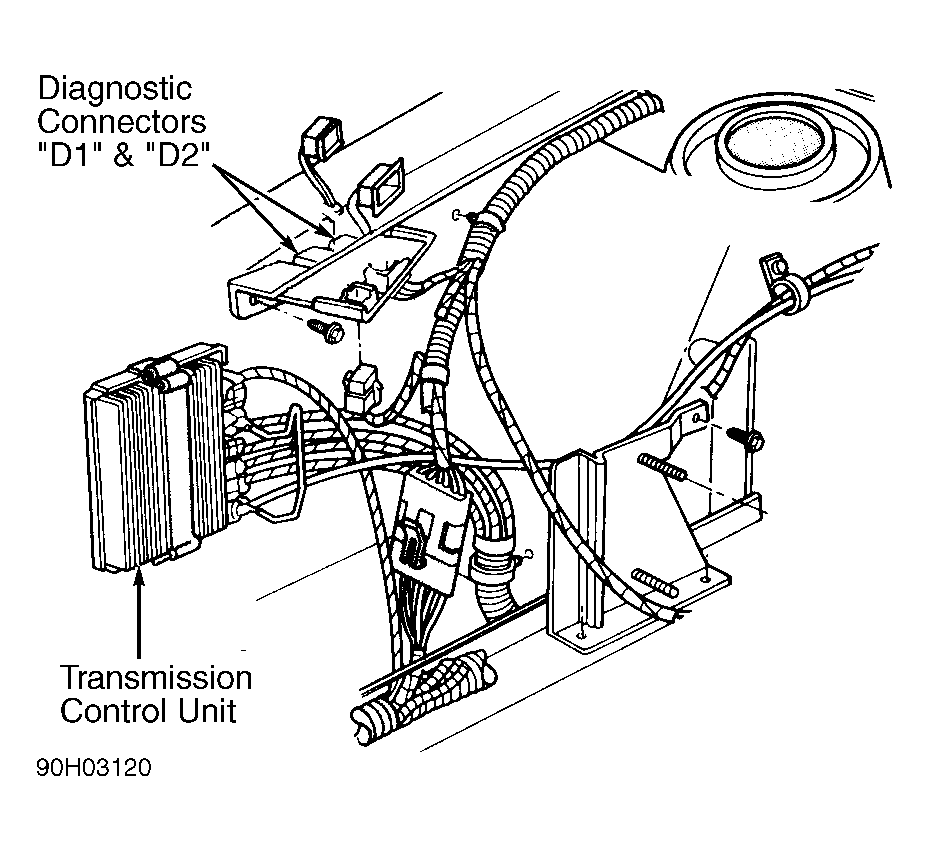

Diagnostic connectors "D1" and "D2" are located on right front fender panel. See Fig 1 . With DRB-II and Jeep/Eagle adapter connected to diagnostic connectors "D1" and "D2," all character positions will illuminate and copyright information will appear on screen for a few seconds. If DRB-II screen is blank, refer to DRB-II PROBLEMS & ERROR MESSAGES in this article. The DRB-II will offer 4 menus: VEHICLES TESTED, HOW TO USE, CONFIGURE and SELECT VEHICLE.
