Removal & Installation

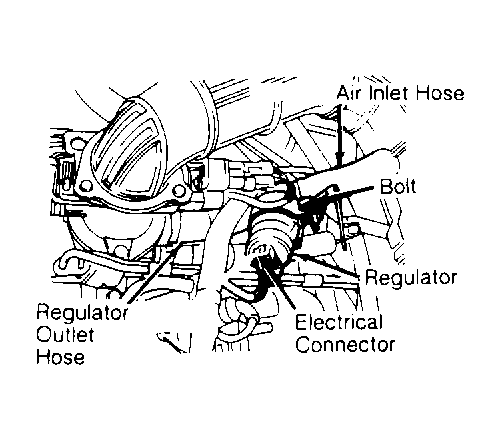

- Idle speed regulator is located on air intake bonnet near throttle body. Remove regulator electrical connector. Remove air inlet hose. Disconnect regulator outlet hose at regulator. Remove regulator clamp bolt. Remove idle speed regulator. See Fig 1 .
- To install, reverse removal procedure. Ensure regulator is installed with arrow on ports facing throttle body.
