Test 7A: Low Accumulator Fault

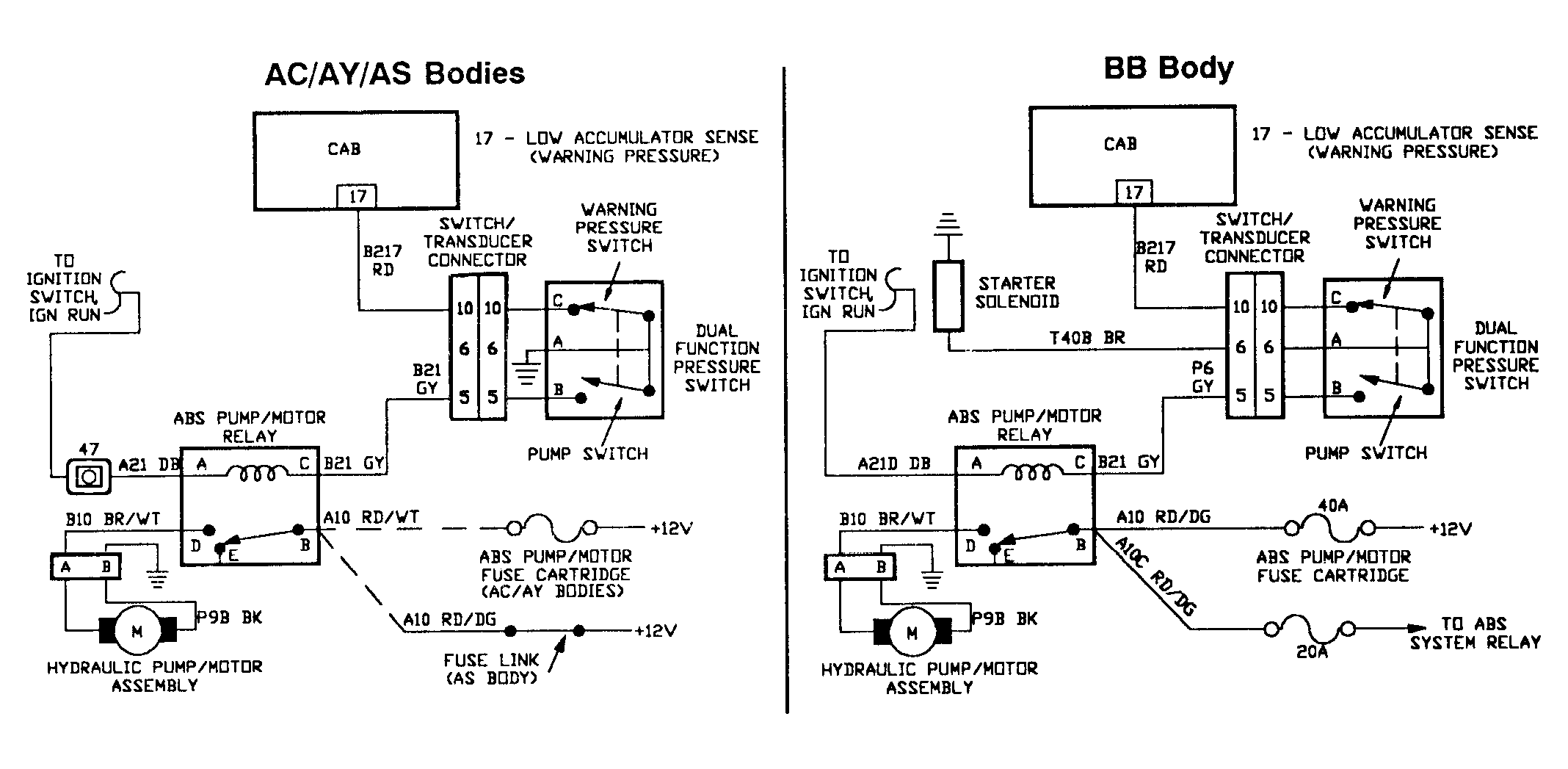

Fig 1: Test 7A - Low Accumulator Fault, Schematic

G91B10794

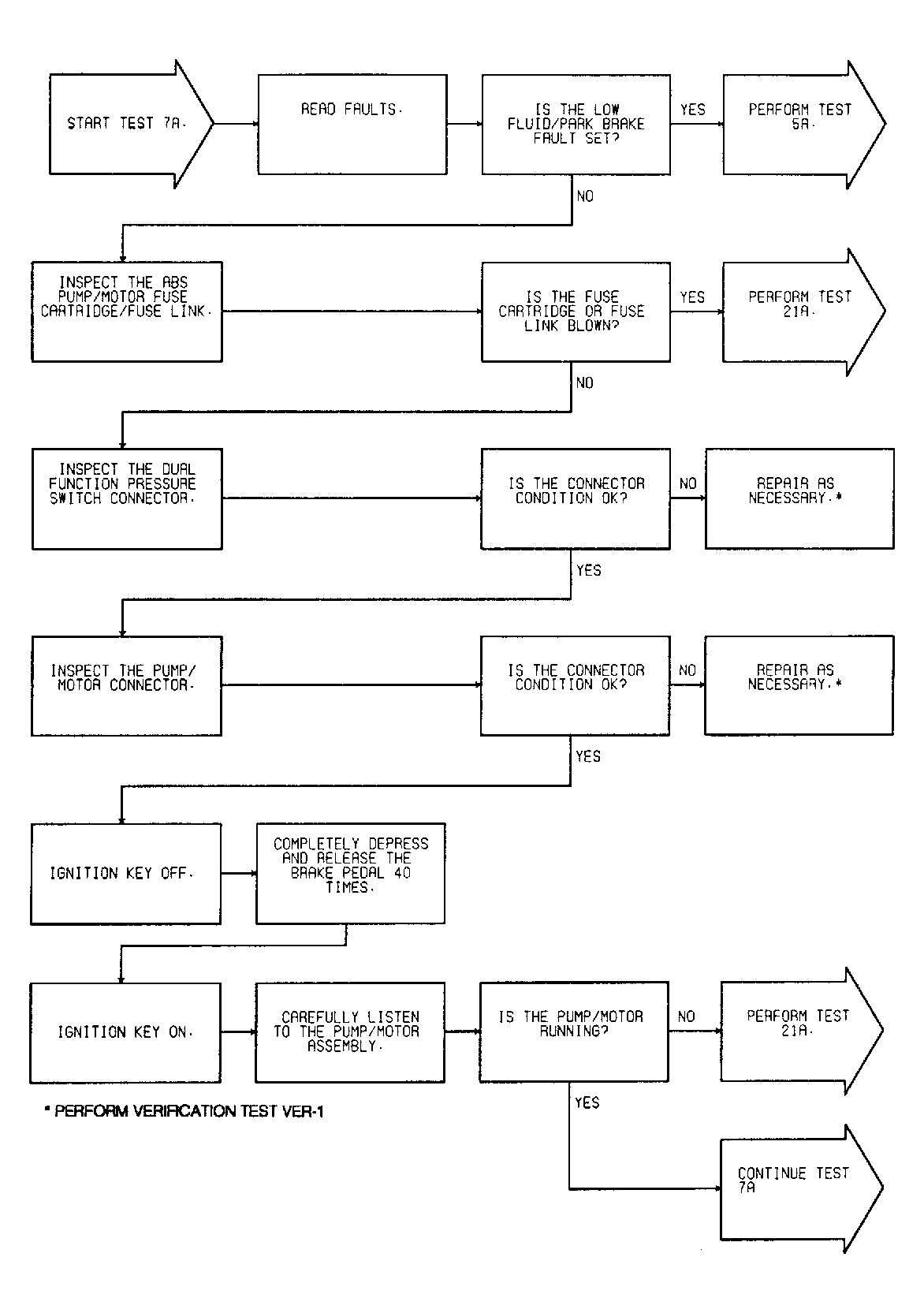

Fig 2: Test 7A - Low Accumulator Fault, Flow Chart

G91C10795

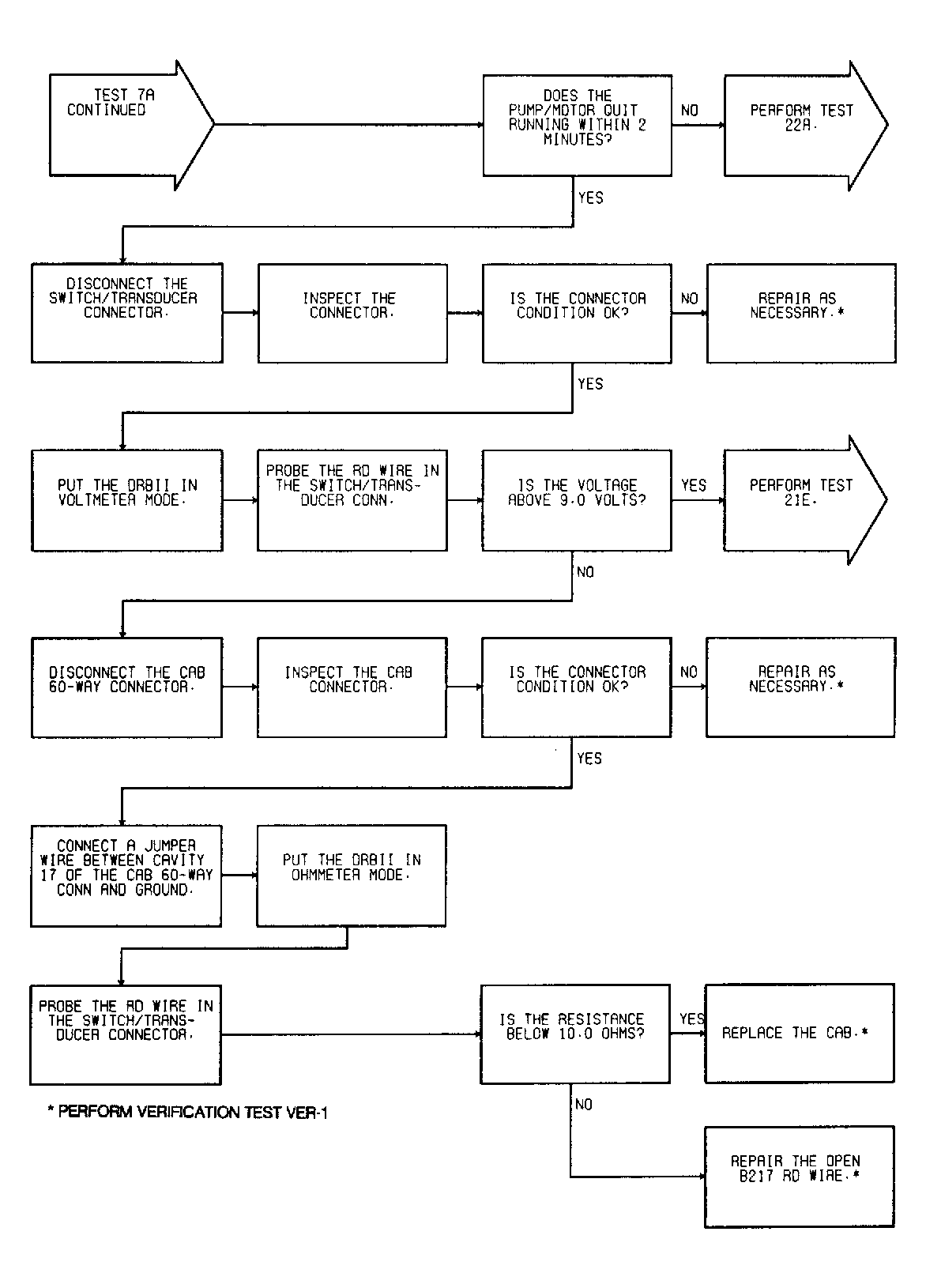

Fig 3: Test 7A - Low Accumulator Fault, Flow Chart

G91D10796
