Test 5B: Low Fluid/Parking Brake Fault

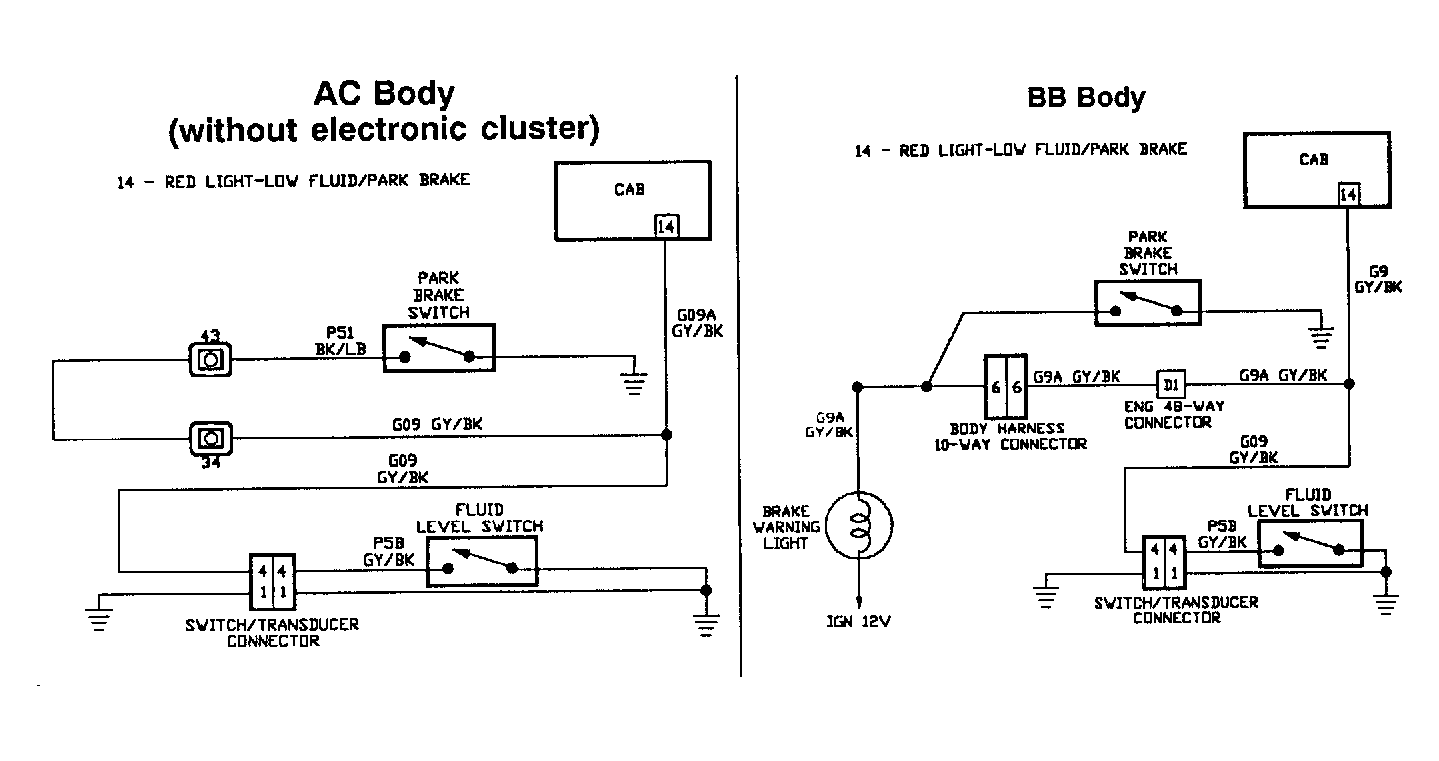

Fig 1: Test 5B - Low Fluid/Parking Brake, Schematic

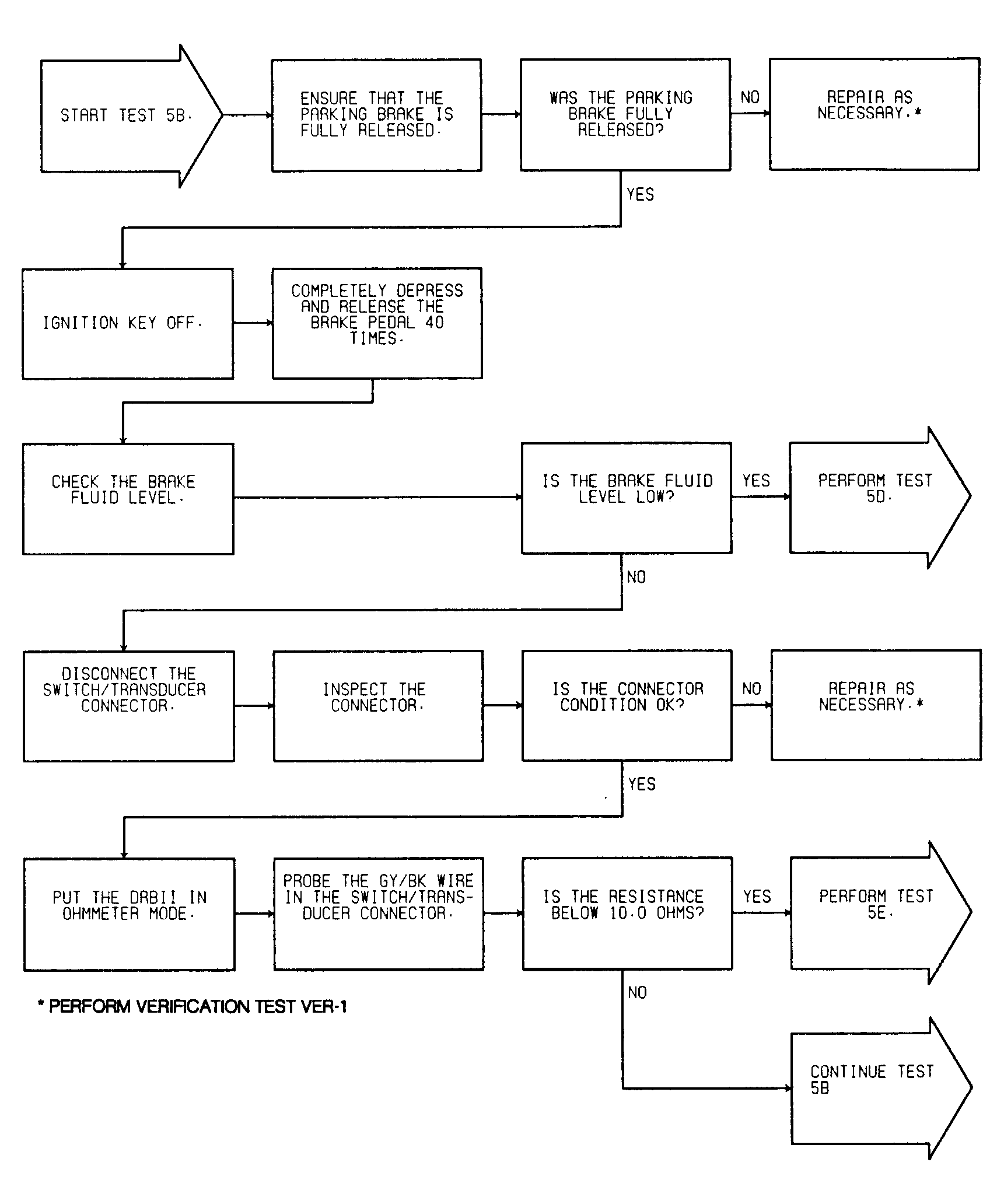

Fig 2: Test 5B - Low Fluid/Parking Brake, Flow Chart

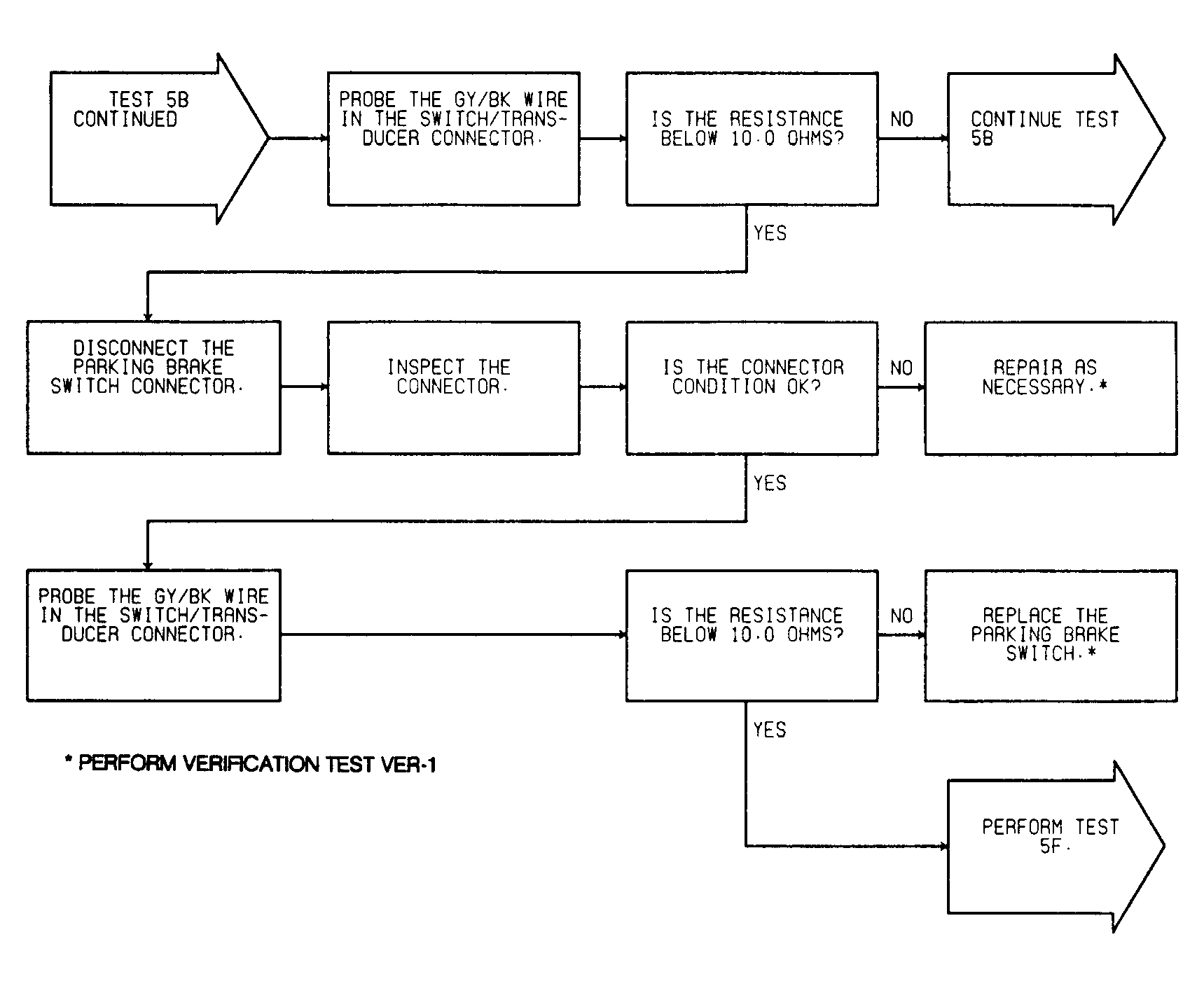

Fig 3: Test 5B - Low Fluid/Parking Brake, Flow Chart

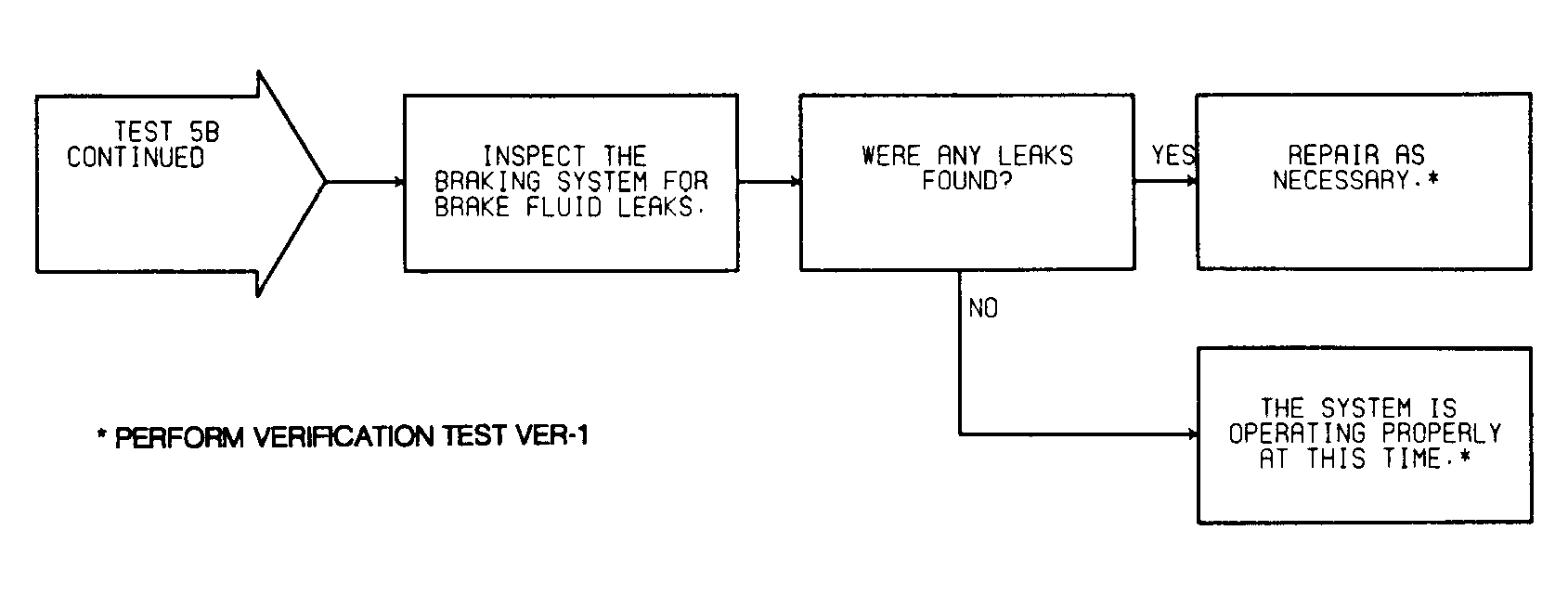

Fig 4: Test 5B - Low Fluid/Parking Brake, Flow Chart
