Test 22B: Hydraulic Pressure Performance Test
Test 22B: Hydraulic Pressure Performance Test

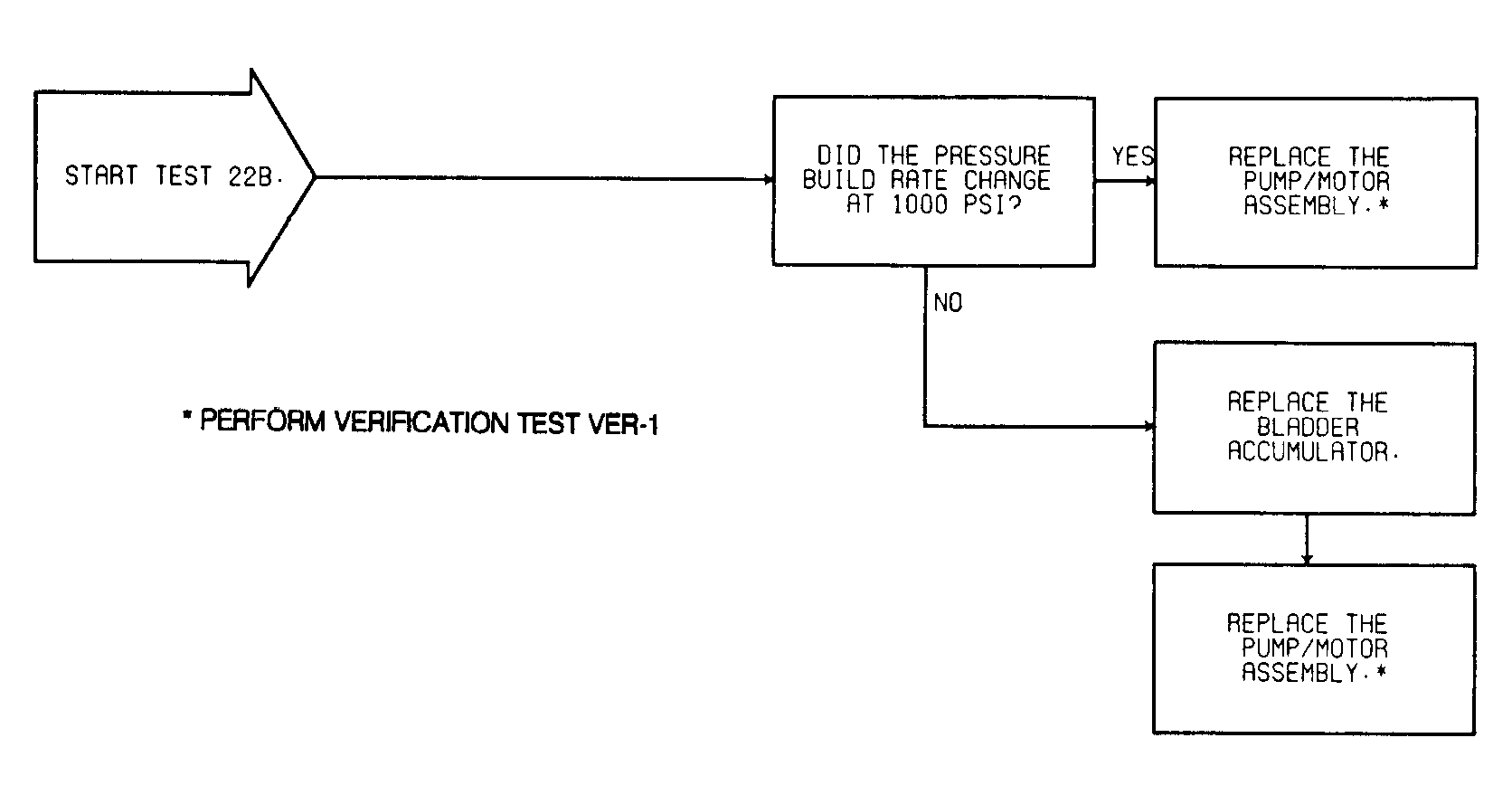

Fig 1: Test 22B - Hydraulic Pressure Performance Test
