Test 21F: Hydraulic Pump/Motor Circuit Test

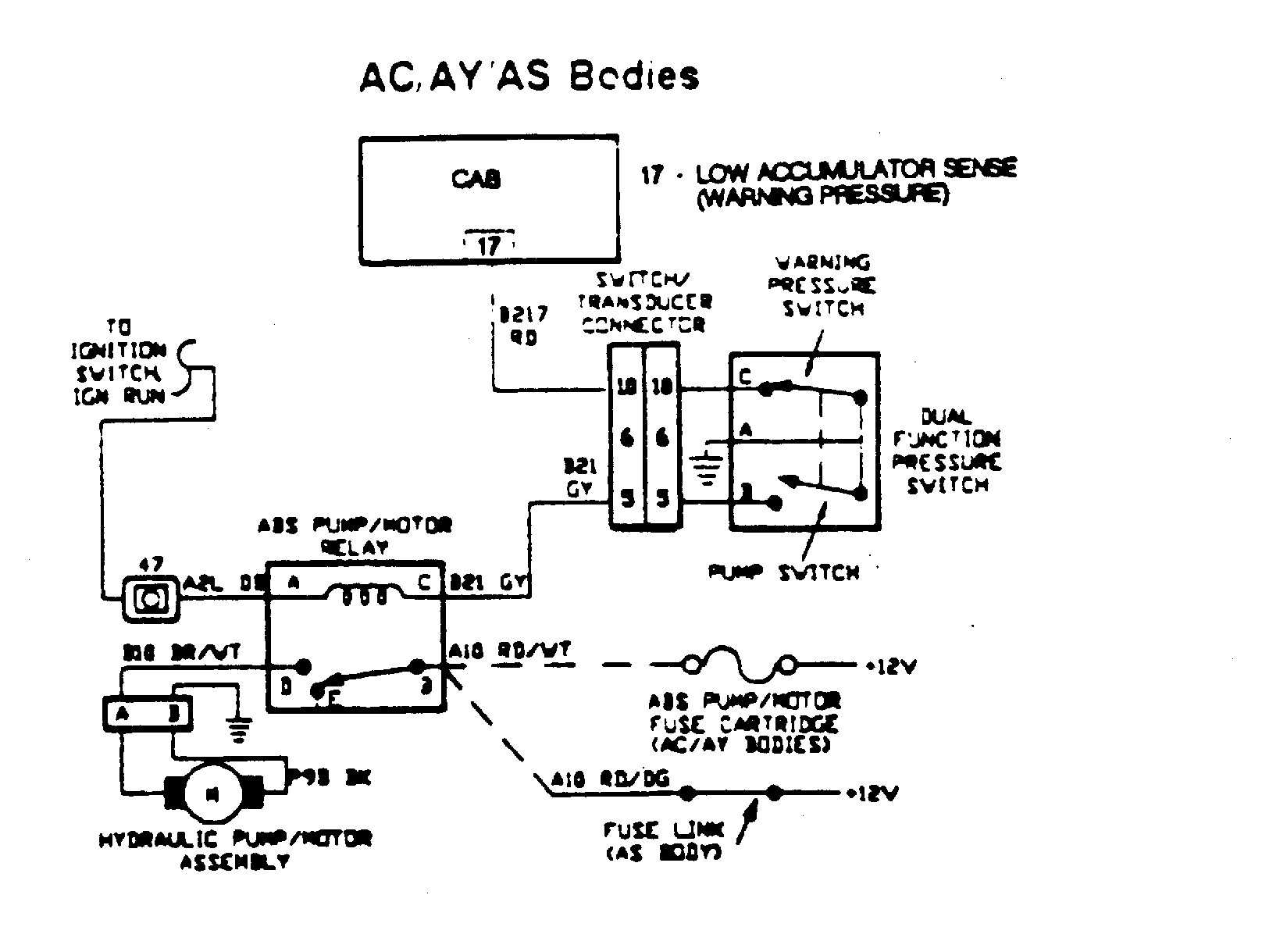

Fig 1: Test 21F - Hydraulic Pump/Motor Circuit Test, Schematic

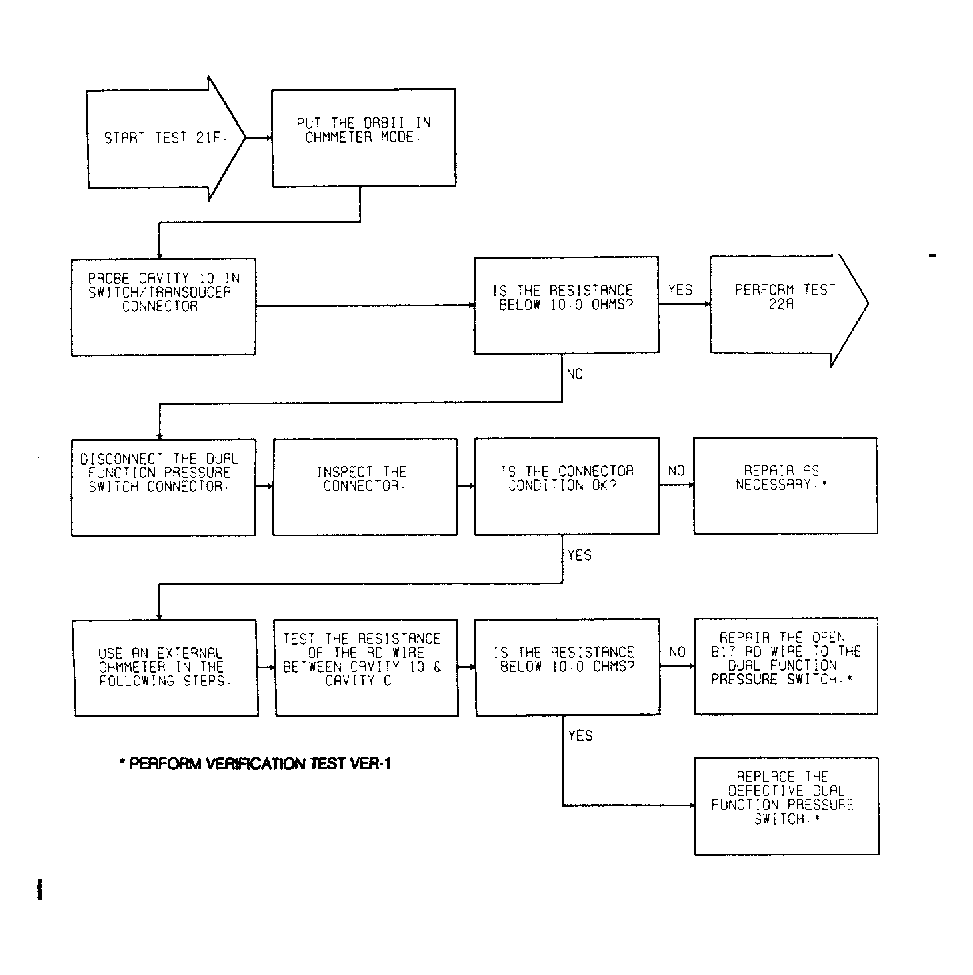

Fig 2: Test 21F - Hydraulic Pump/Motor Circuit Test, Flow Chart
