Test 21D: Hydraulic Pump/Motor Circuit Test

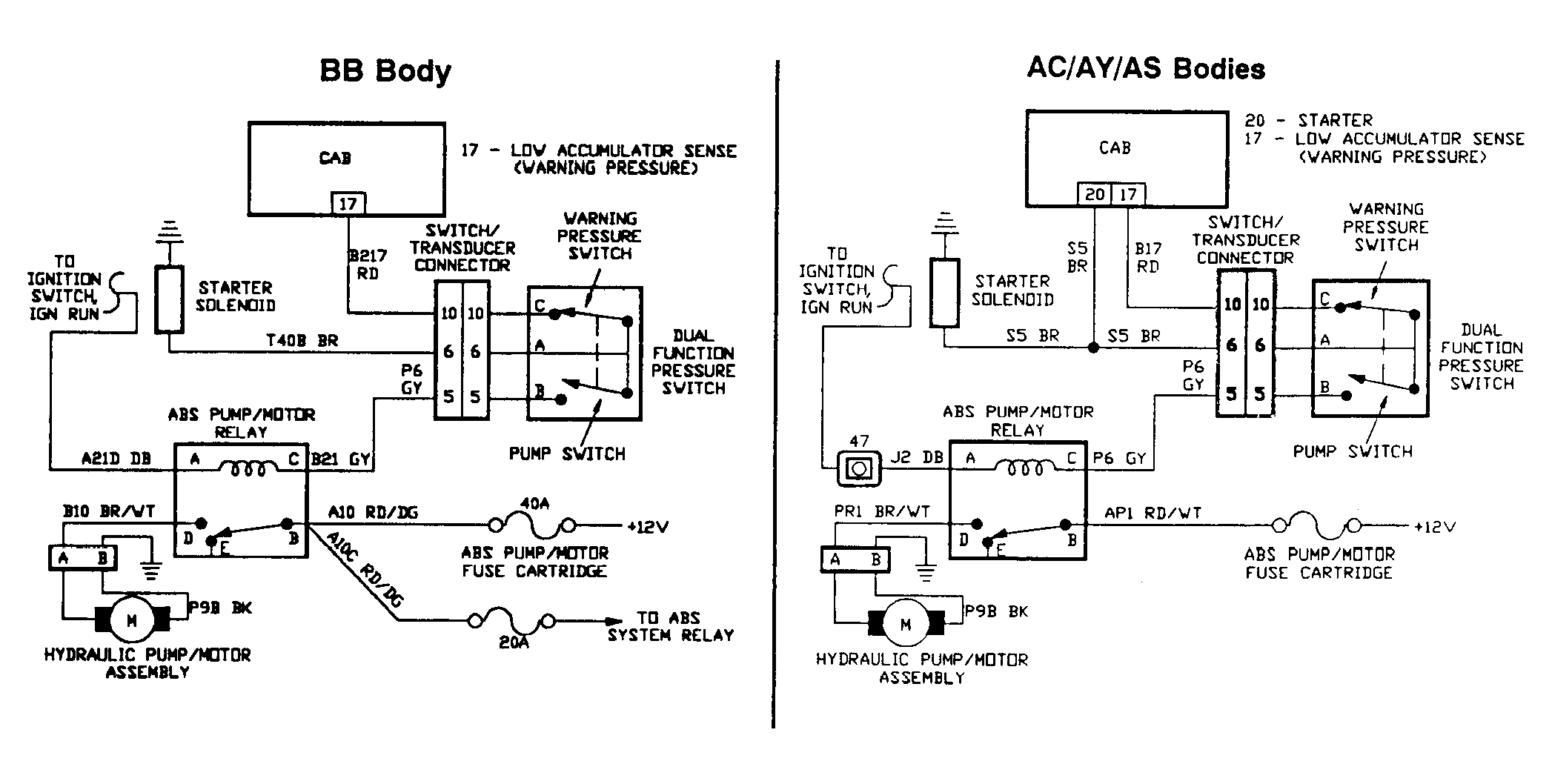

Fig 1: Test 21D - Hydraulic Pump/Motor Circuit Test, Schematic

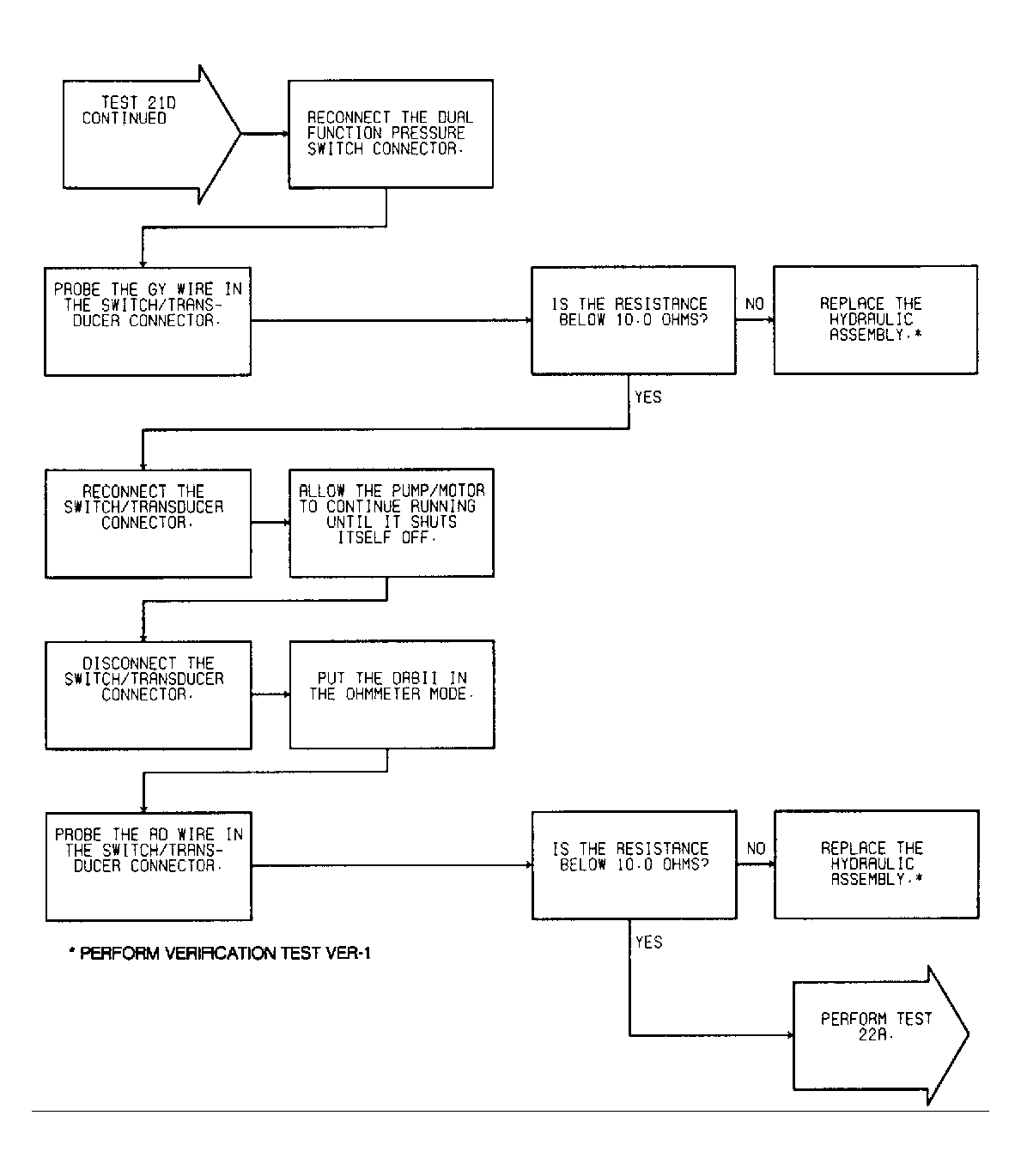

Fig 2: Test 21D - Hydraulic Pump/Motor Circuit Test, Flow Chart

Fig 3: Test 21D - Hydraulic Pump/Motor Circuit Test, Flow Chart
