Test 21C: Hydraulic Pump/Motor Circuit Test

Fig 1: Test 21C - Hydraulic Pump/Motor Circuit Test, Schematic
G91B10794

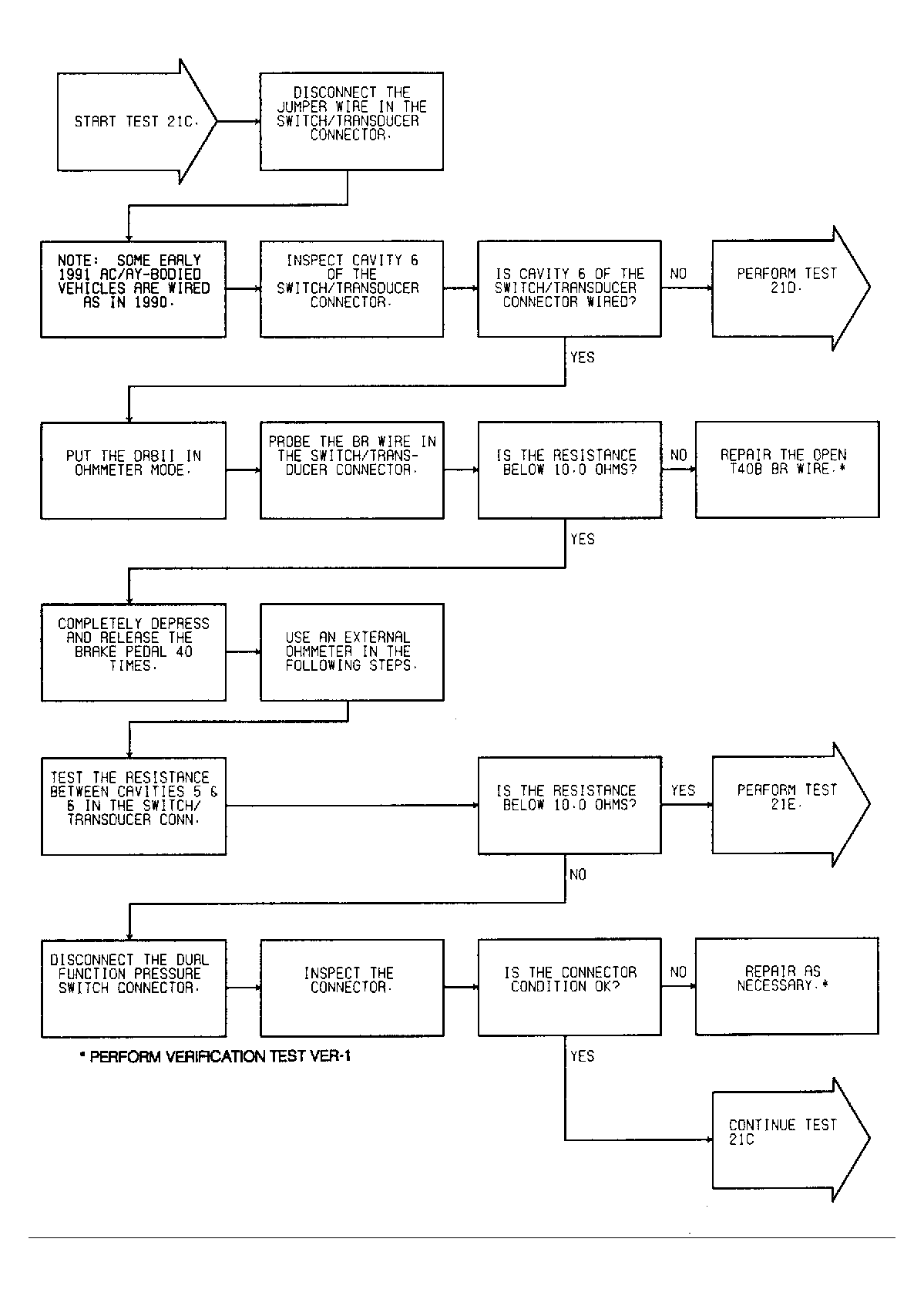

Fig 2: Test 21C - Hydraulic Pump/Motor Circuit Test, Flow Chart
G91E10870

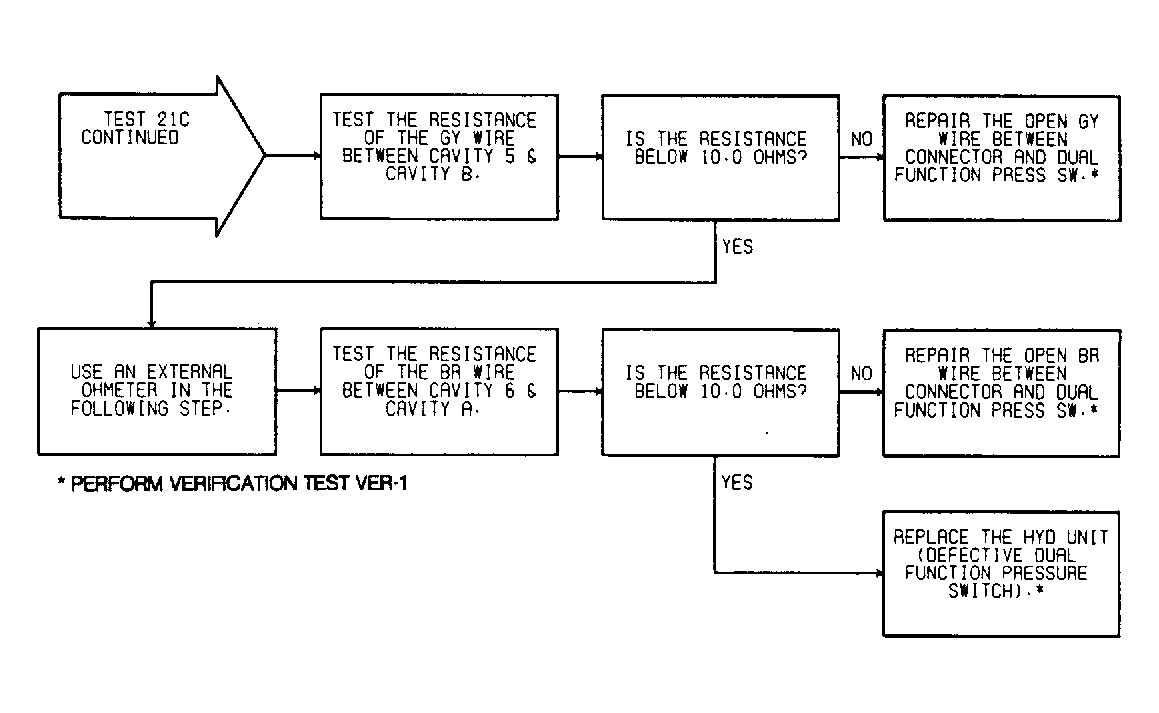

Fig 3: Test 21C - Hydraulic Pump/Motor Circuit Test , Flow Chart
G91F10871
