Test 20A: Excess Decay Fault

Fig 1: Test 20A - Excess Decay Fault, Schematic

G91I09165

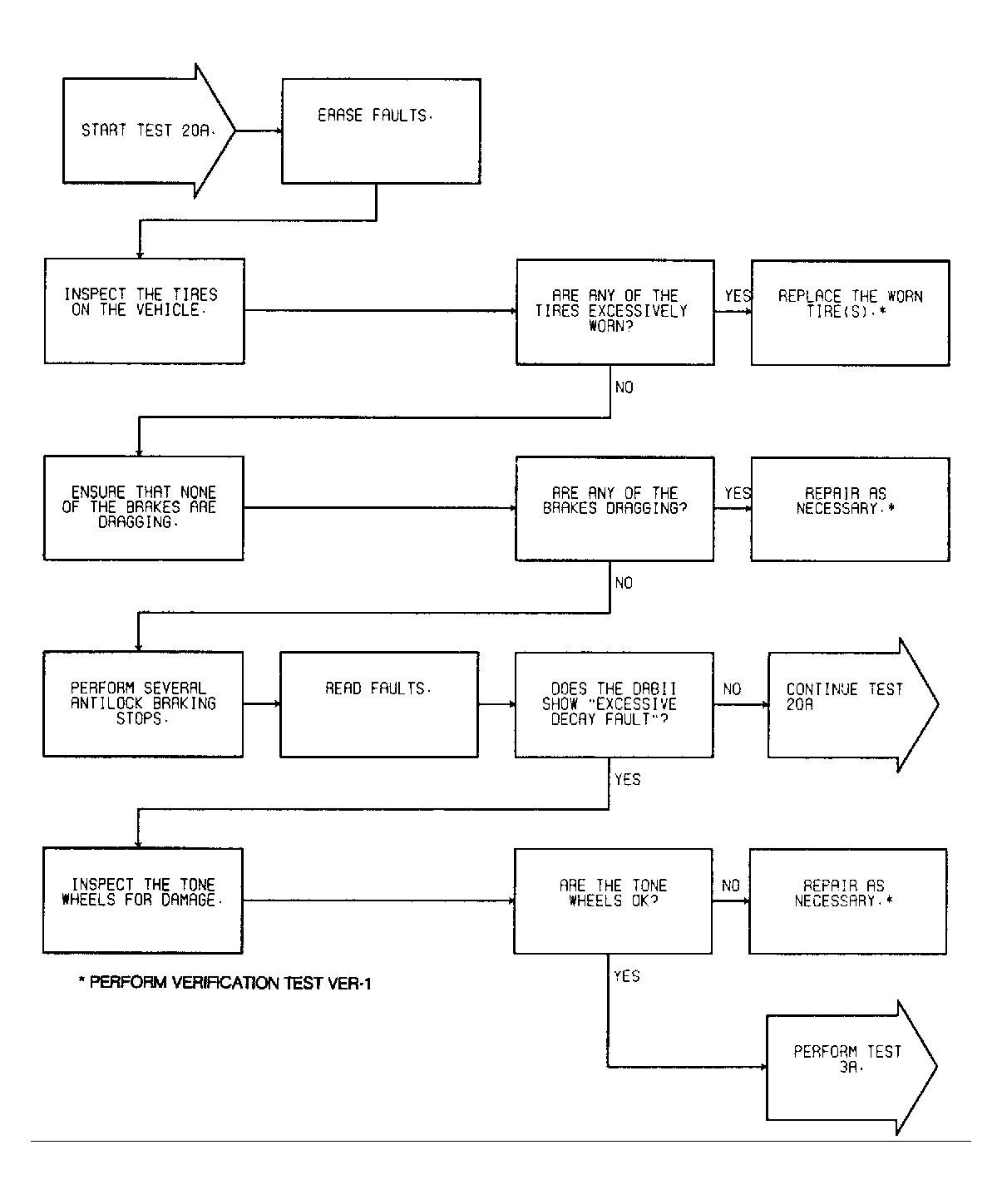

Fig 2: Test 20A - Excess Decay Fault, Flow Chart

G91D10861

Fig 3: Test 20A - Excess Decay Fault, Flow Chart

G91E10862
