Test 17A: Primary Pressure/Delta Pressure Fault

Fig 1: Test 17A - Primary & Delta Pressure Fault, Schematic

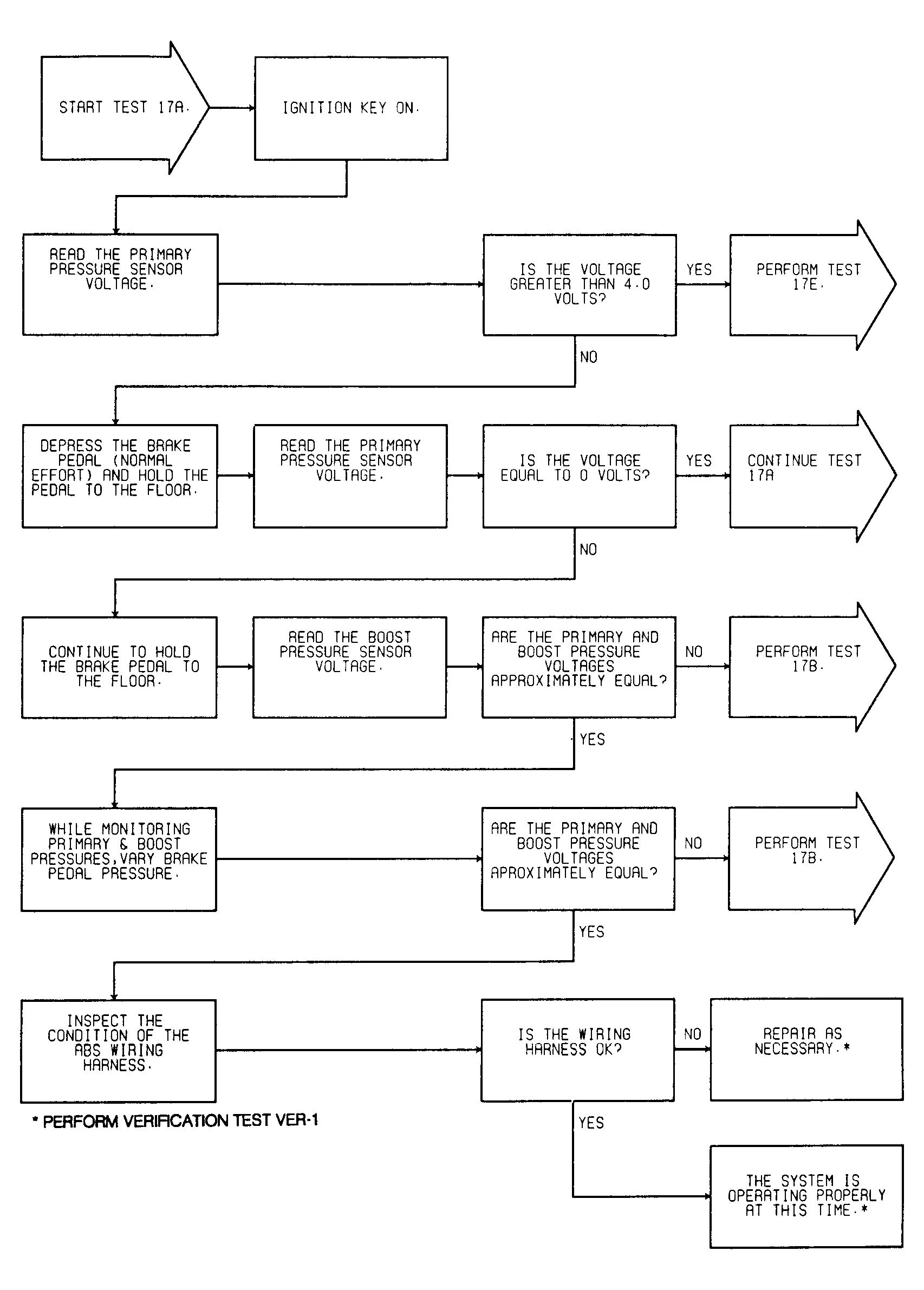

Fig 2: Test 17A - Primary & Delta Pressure Fault, Flow Chart

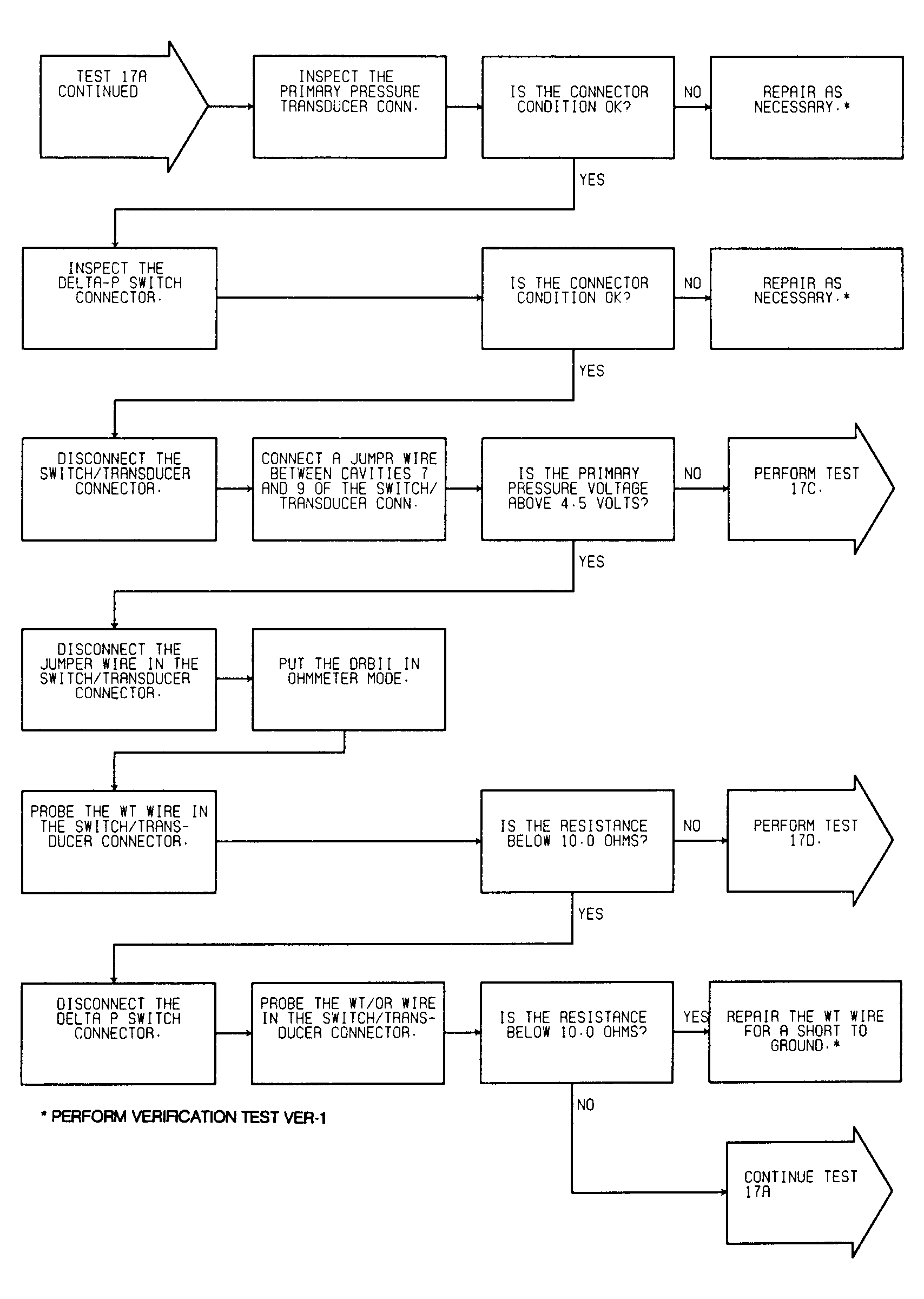

Fig 3: Test 17A - Primary & Delta Pressure Fault, Flow Chart

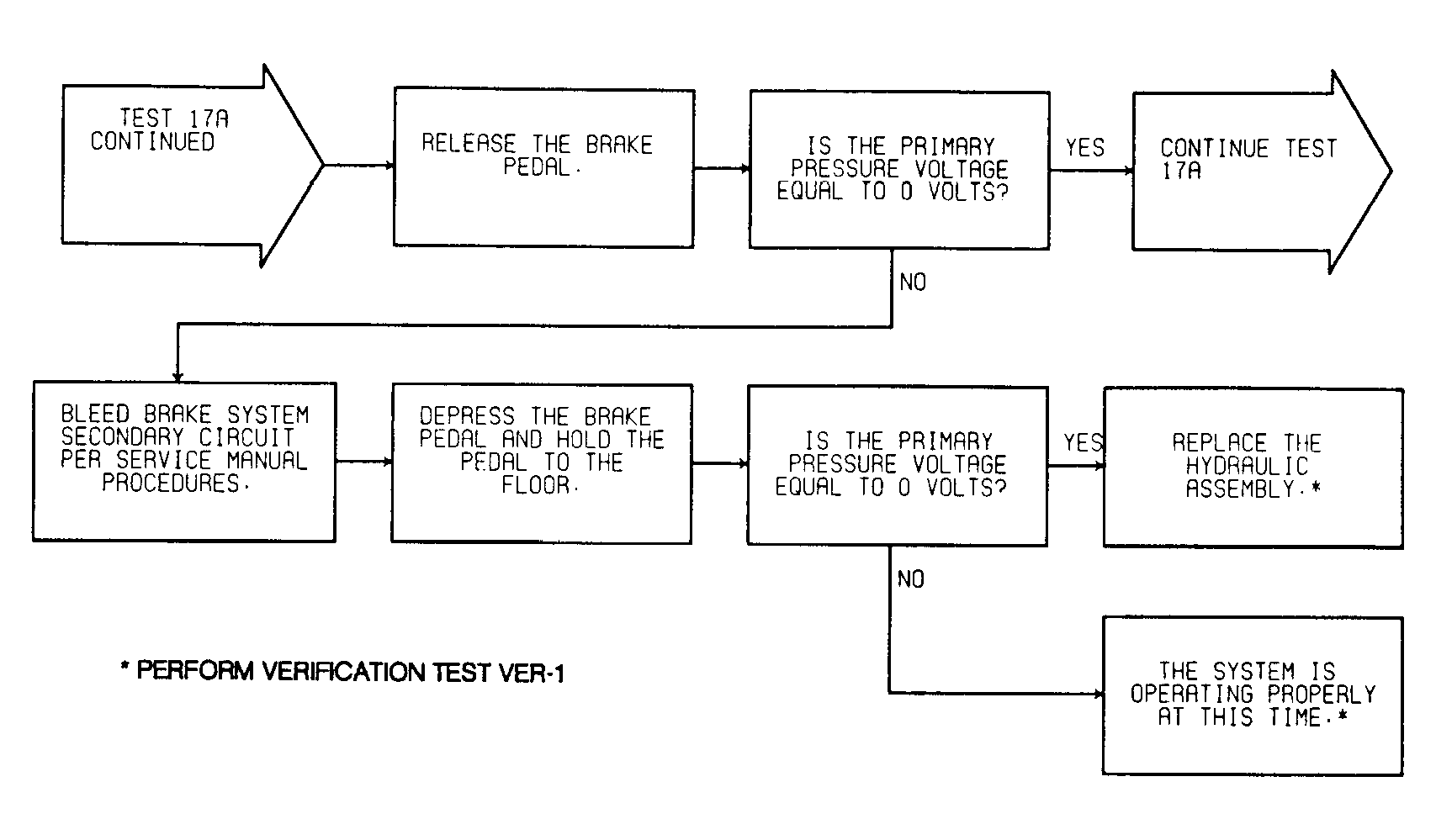

Fig 4: Test 17A - Primary & Delta Pressure Fault, Flow Chart

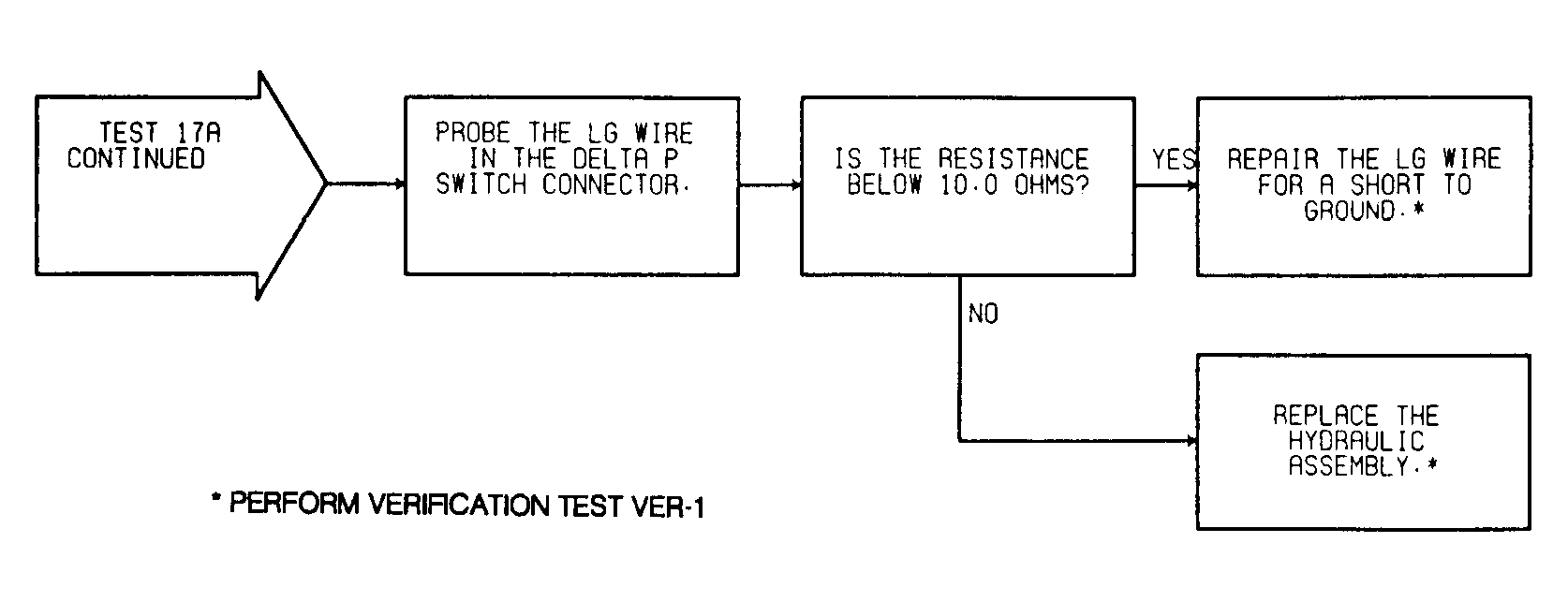

Fig 5: Test 17A - Primary & Delta Pressure Fault, Flow Chart
