Test 13A: RR Wheel Speed Sensor Fault

Fig 1: Test 13A - RR Wheel Speed Sensor Fault, Schematic

G91D10804

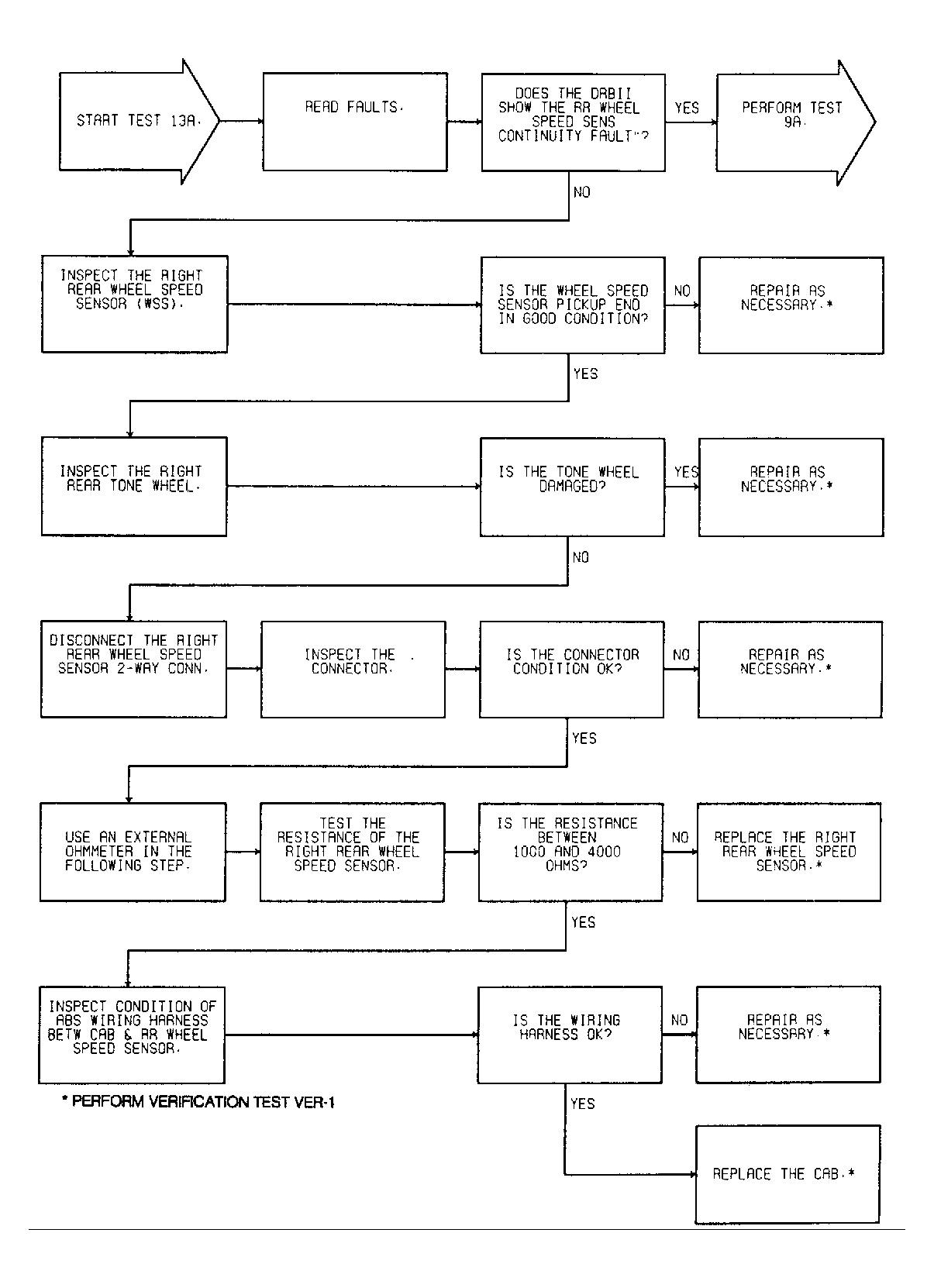

Fig 2: Test 13A - RR Wheel Speed Sensor Fault, Flow Chart

G91I10841
