Fault 1066: O2 Sensor Reads Lean
Fault 1066: O2 Sensor Reads Lean

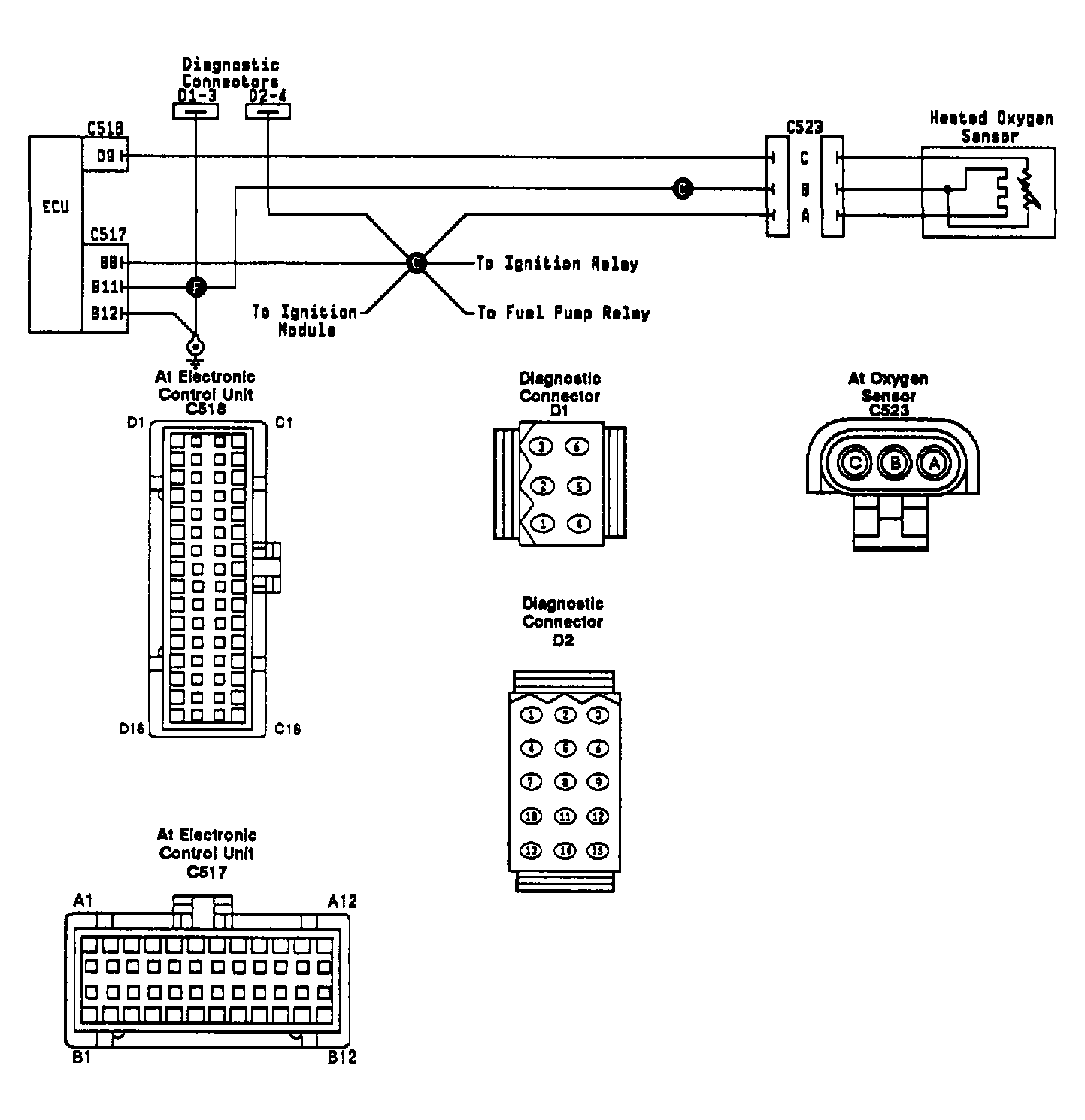

Fig 1: Fault 1066: Circuit Diagram

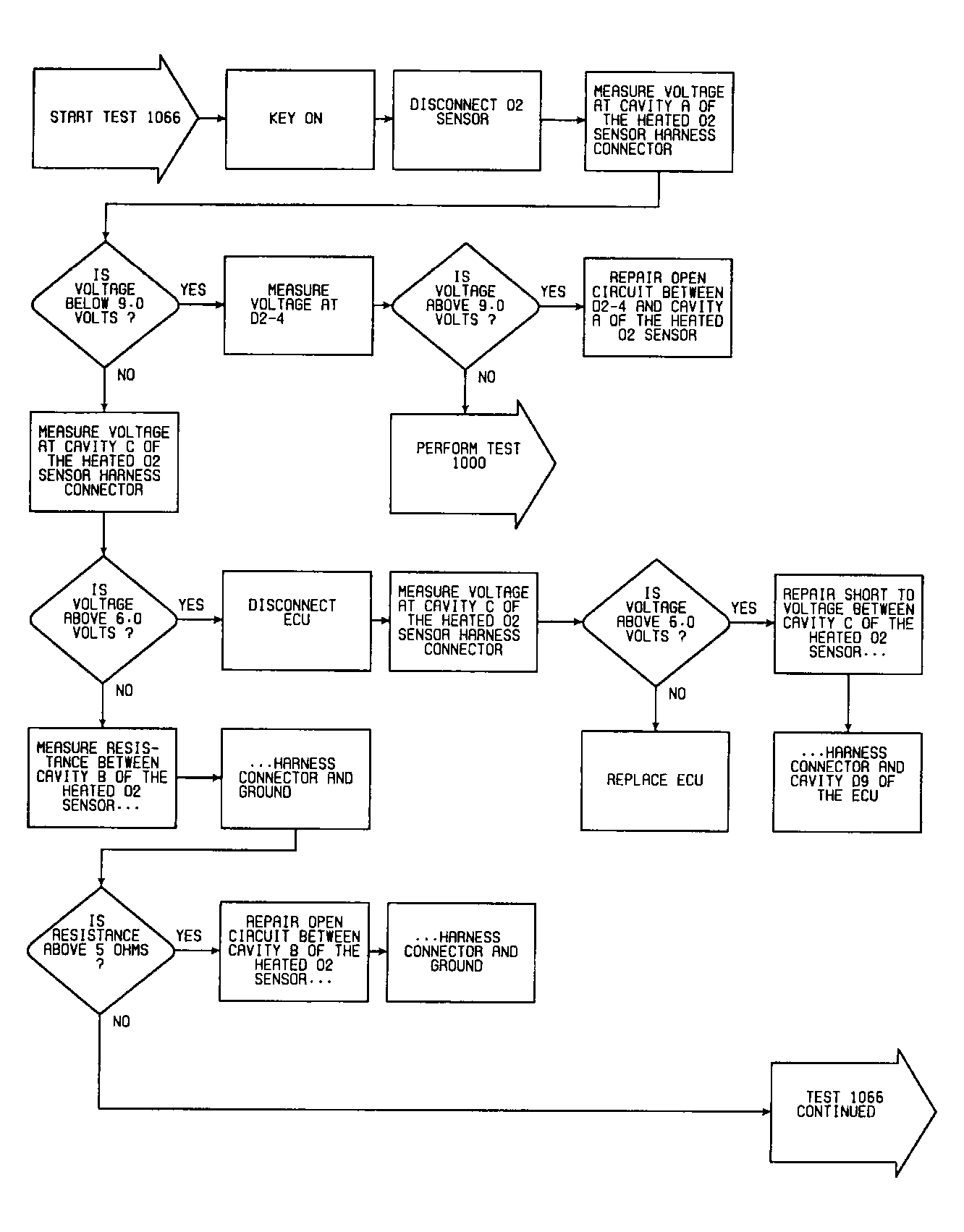

Fig 2: Fault 1066: Flow Chart (1 of 2)

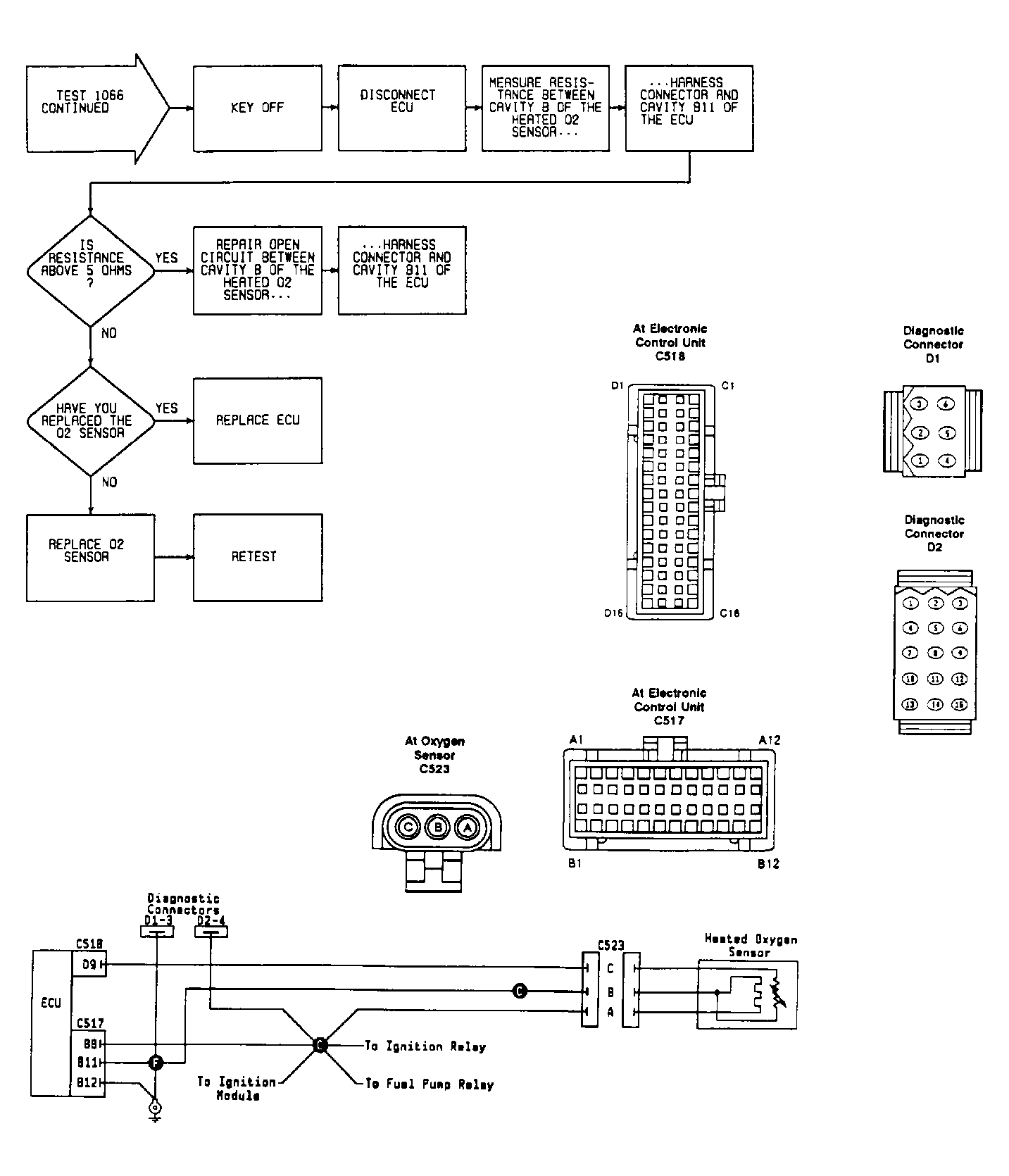

Fig 3: Fault 1066: Flow Chart (2 of 2)
