Neutral Safety Switch Adjustment

Place transmission control lever in Neutral. Loosen switch retaining bolts. Turn neutral switch body so neutral position aligning hole end of lever overlaps switch body flange. Tighten bolts to 90-102 INCH lbs. (10-12 N.m). See Fig 1 .

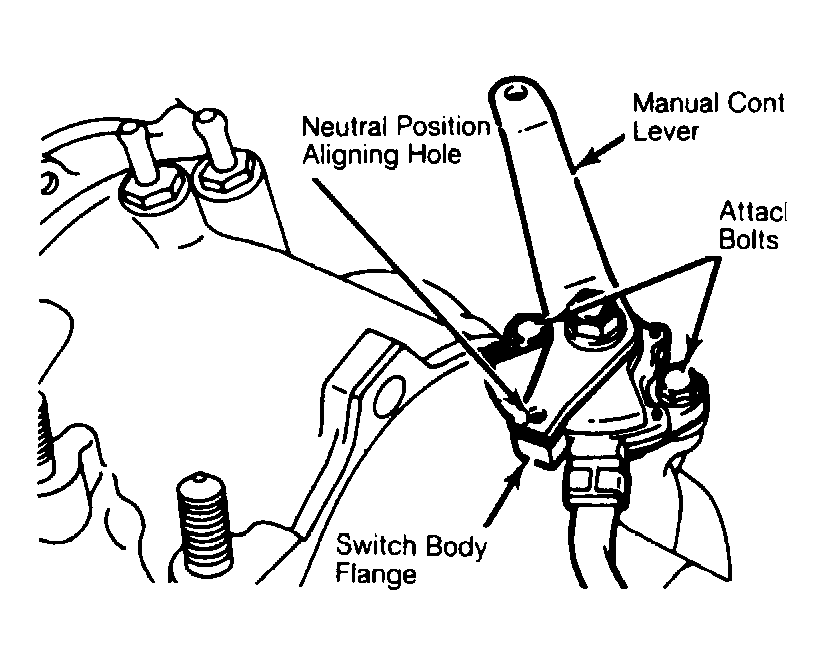

Fig 1: Adjusting Neutral Safety Switch
G90C01369Courtesy of CHRYSLER MOTORS.
