Diagnostic Fault Charts

NOTE: Replace the engine control unit if a malfunction code is output although the inspection reveals no problem with the check items.

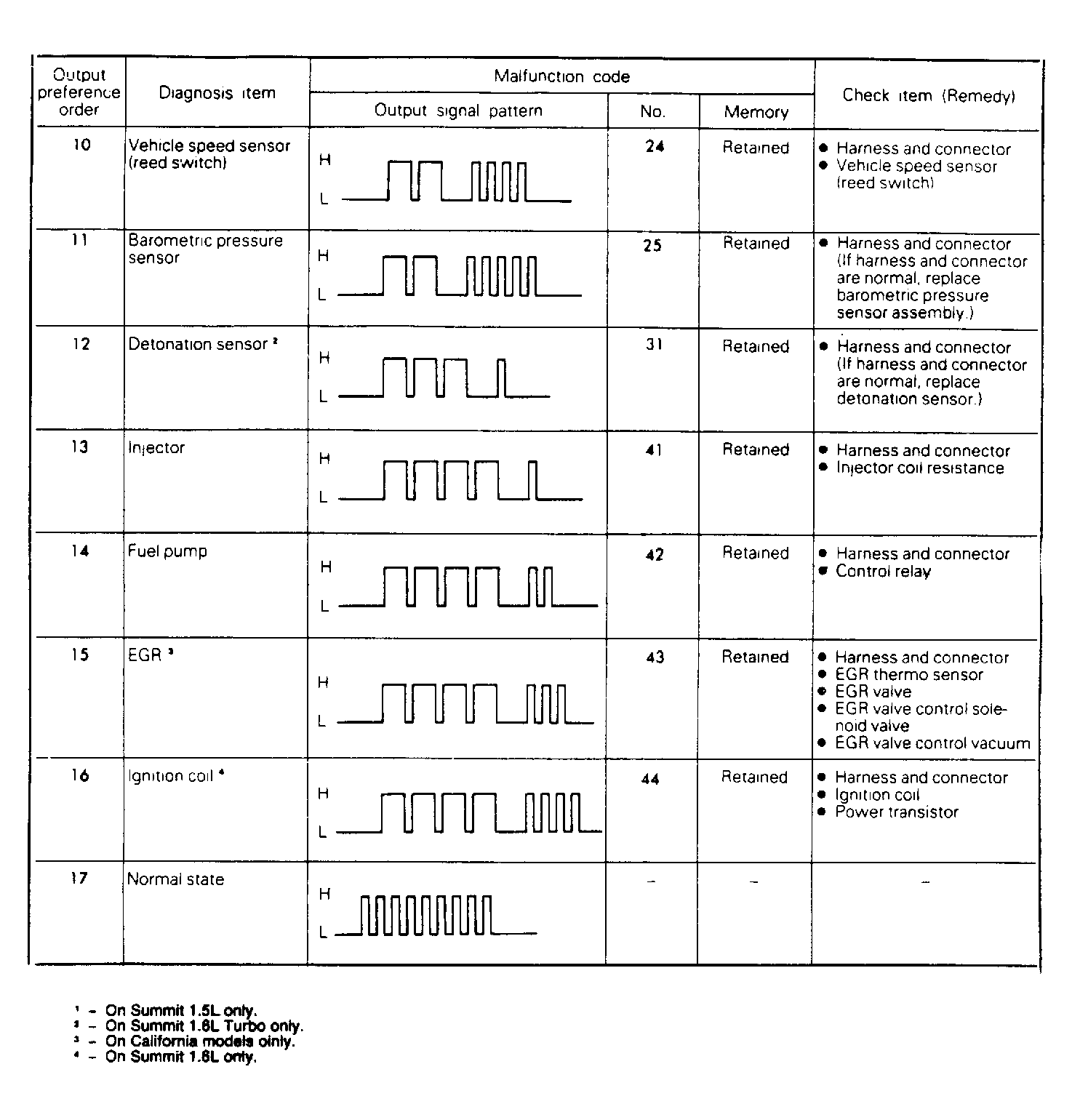

Fig 1: Diagnostic Fault Chart (1 of 2)

Fig 2: Diagnostic Fault Chart (2 of 2)
