Fault 1062 - A/C Select Line High

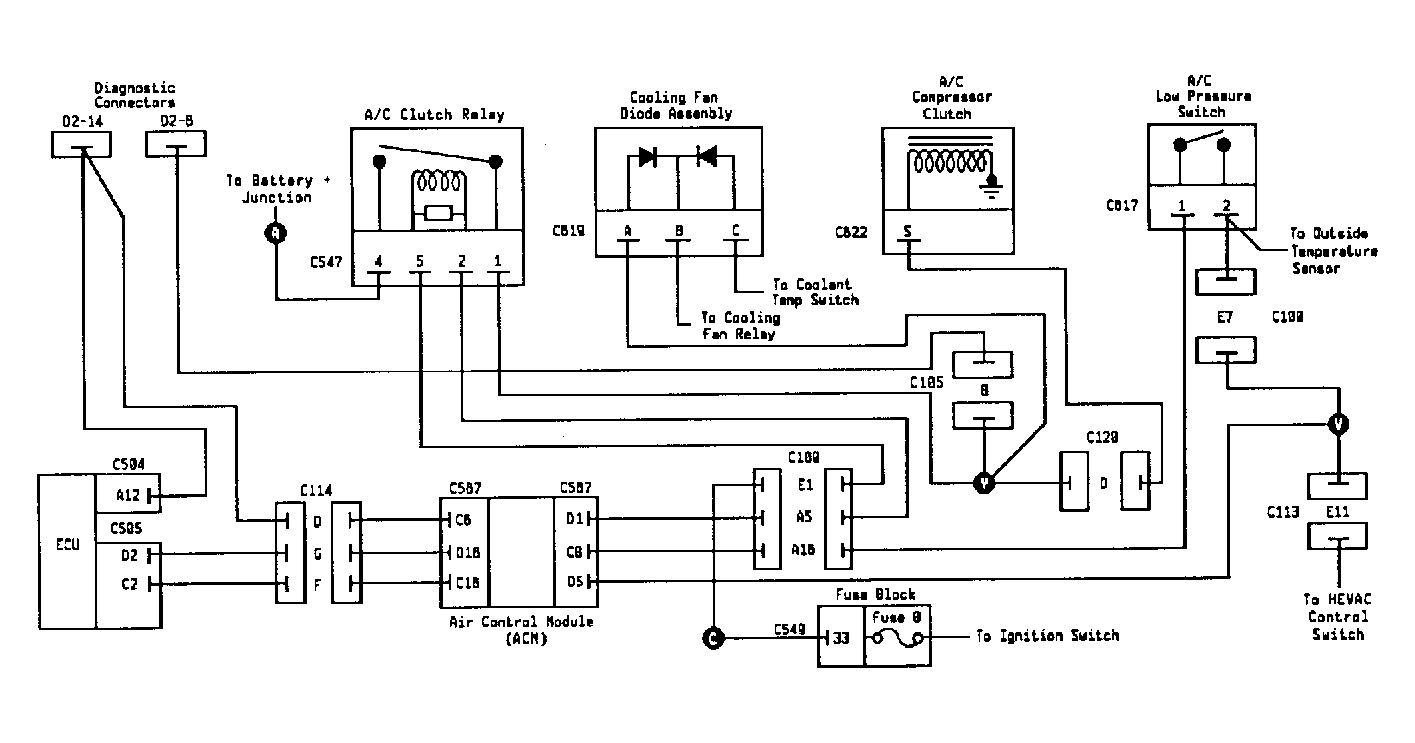

Fig 1: Fault 1062 - A/C Select Line High Schematic

G108444

Courtesy of CHRYSLER MOTORS

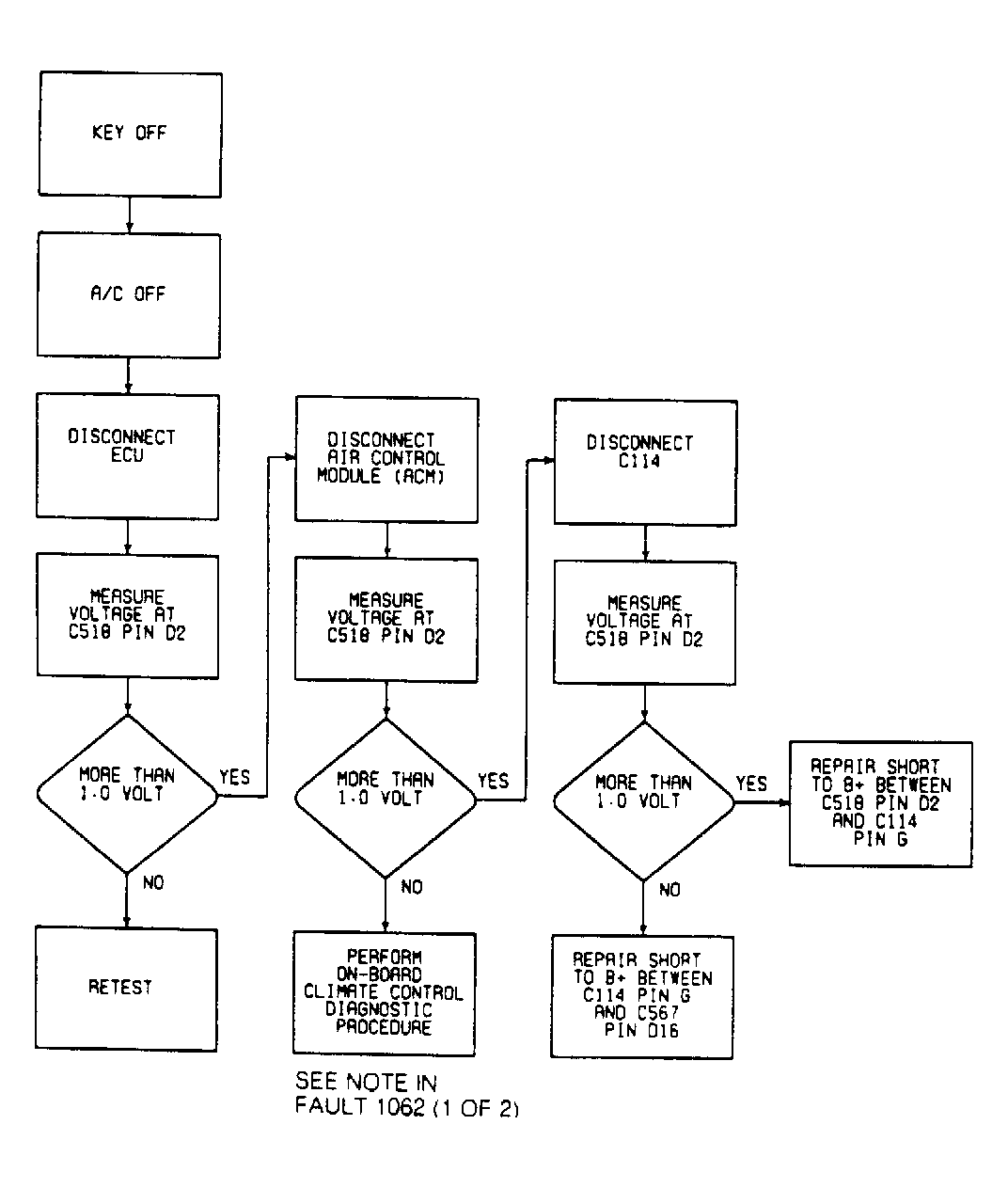

Fig 2: Fault 1062 - Flow Chart

G108445

Courtesy of CHRYSLER MOTORS
