Fault 1061 - A/C Select Line Low

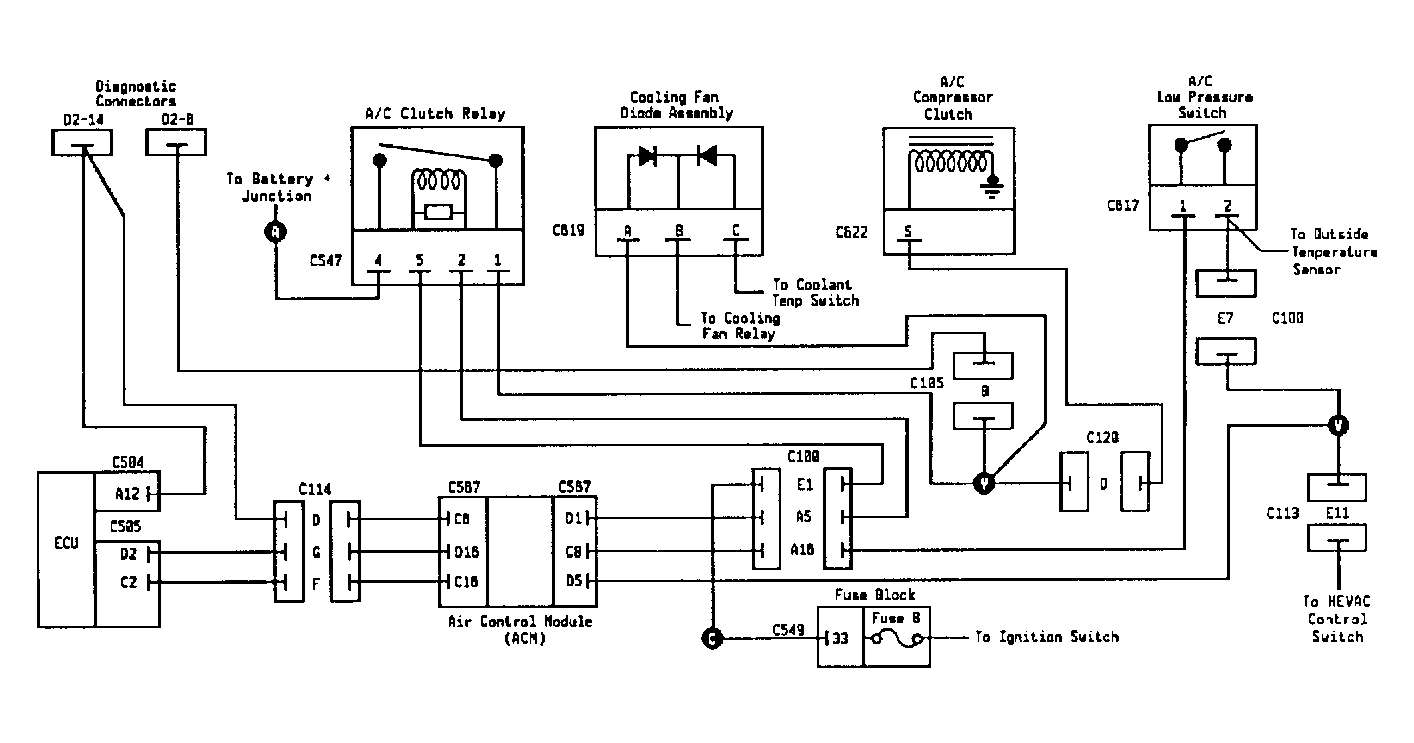

Fig 1: Fault 1061 - A/C Select Line Low Schematic

G108442

Courtesy of CHRYSLER MOTORS

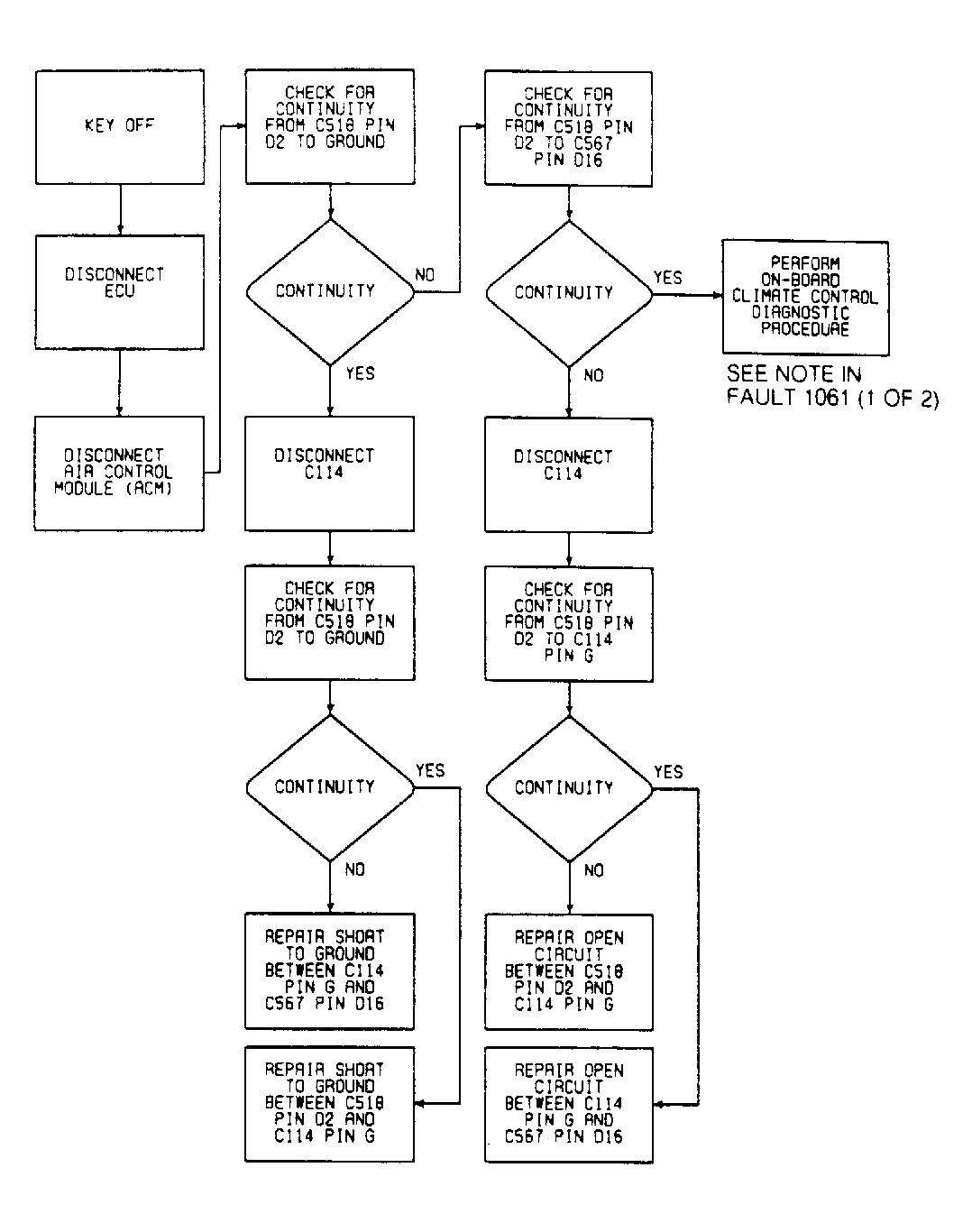

Fig 2: Fault 1061 - Flow Chart

G108443

Courtesy of CHRYSLER MOTORS
