Fault 1059 - A/C Request Line Low

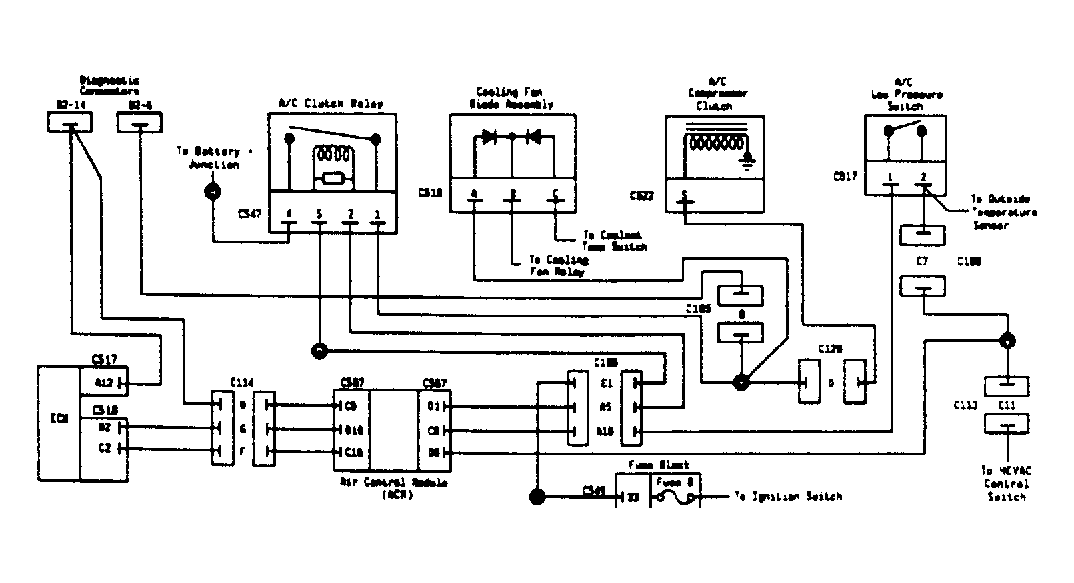

Fig 1: Fault 1059 - A/C Request Line Low Schematic

G108438

Courtesy of CHRYSLER MOTORS

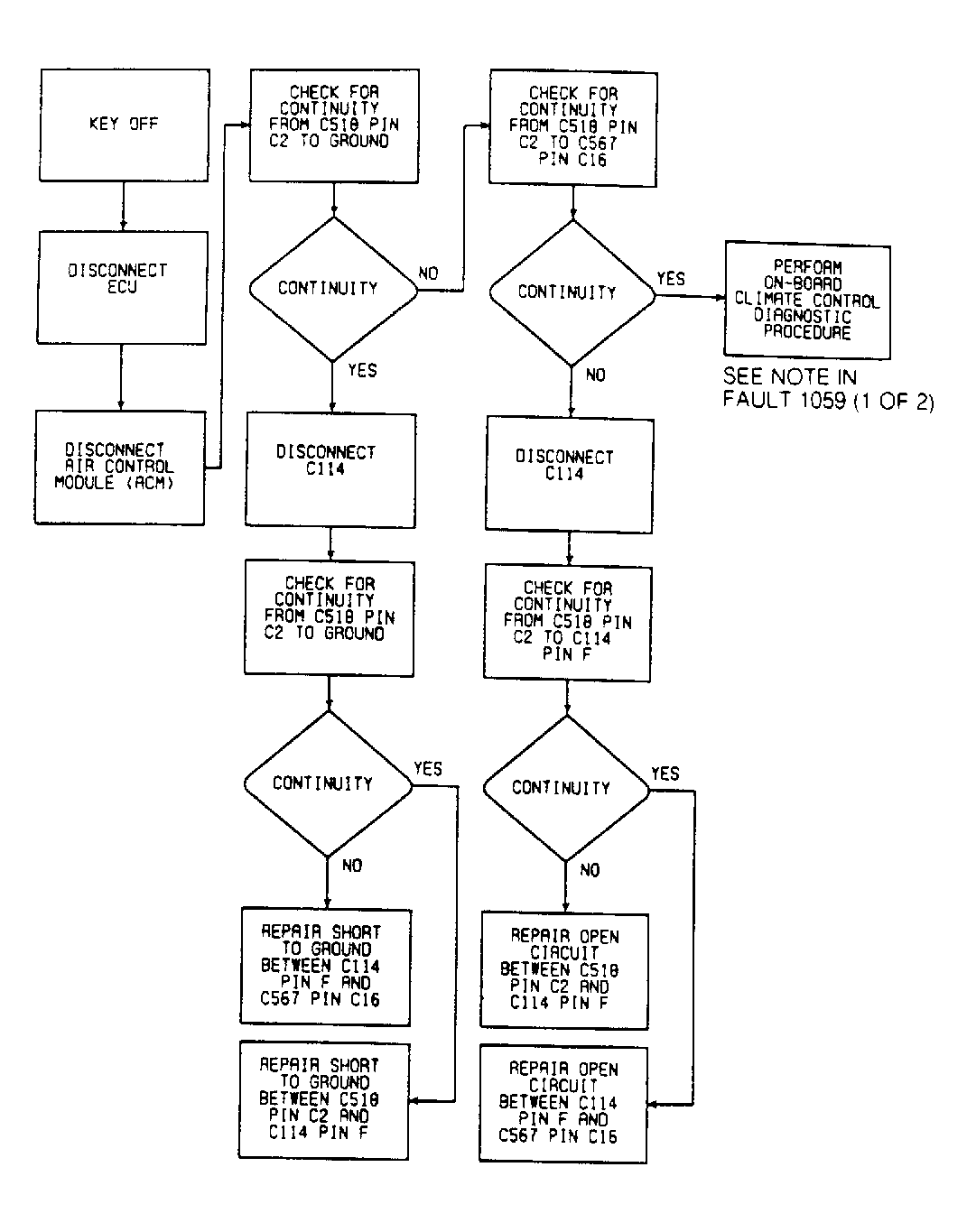

Fig 2: Fault 1059 - Flow Chart

G108439

Courtesy of CHRYSLER MOTORS
