Fault 1037 - Throttle Position Sensor Reads Low

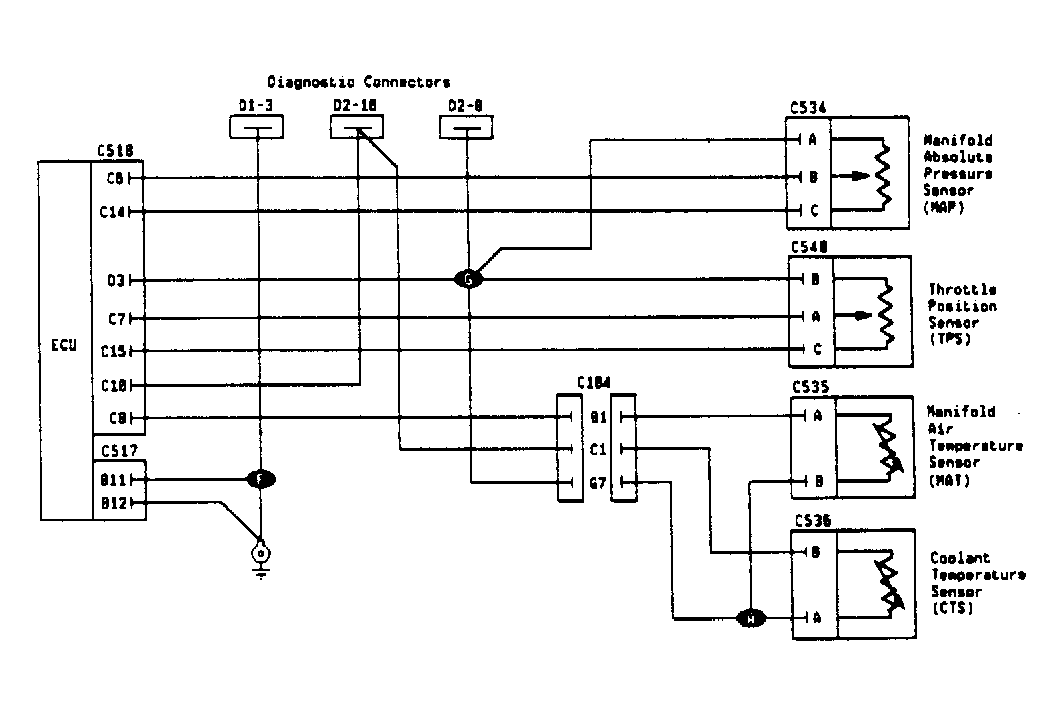

Fig 1: Fault 1037 - Throttle Position Sensor Reads Low Schematic

Courtesy of CHRYSLER MOTORS

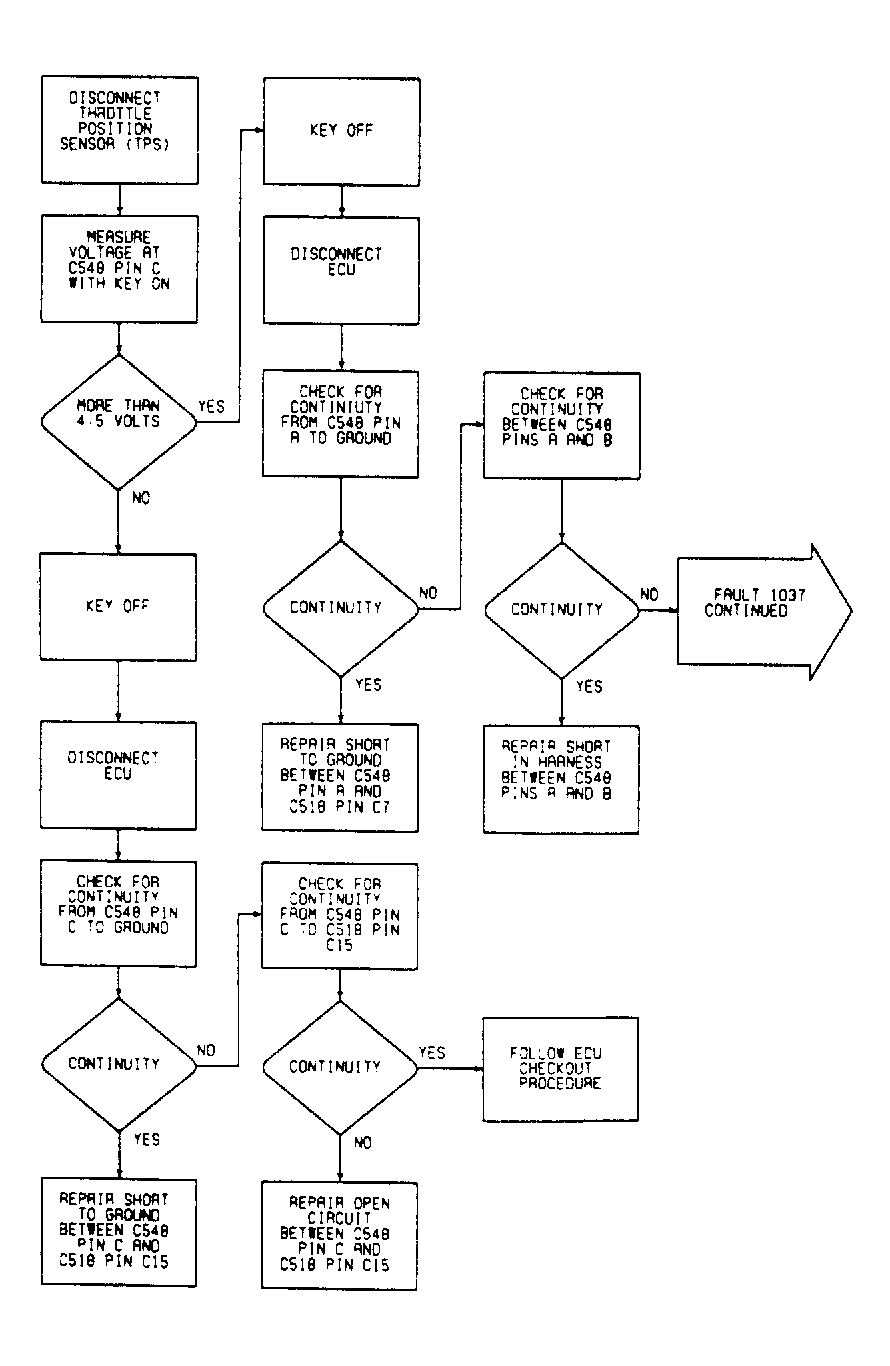

Fig 2: Fault 1037 (1 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS

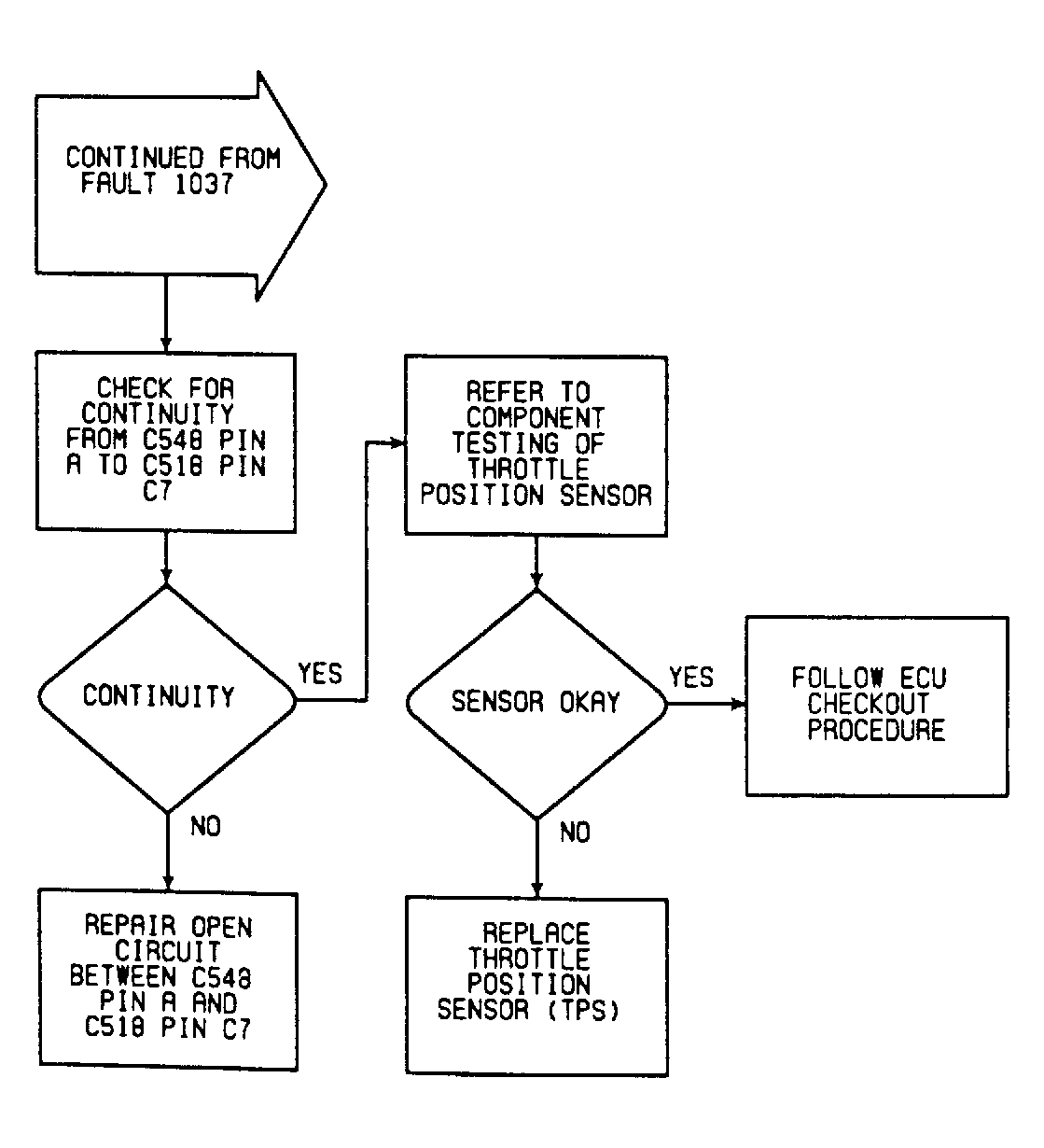

Fig 3: Fault 1037 (2 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS
