Fault 1013 - Ignition Control Module Line High

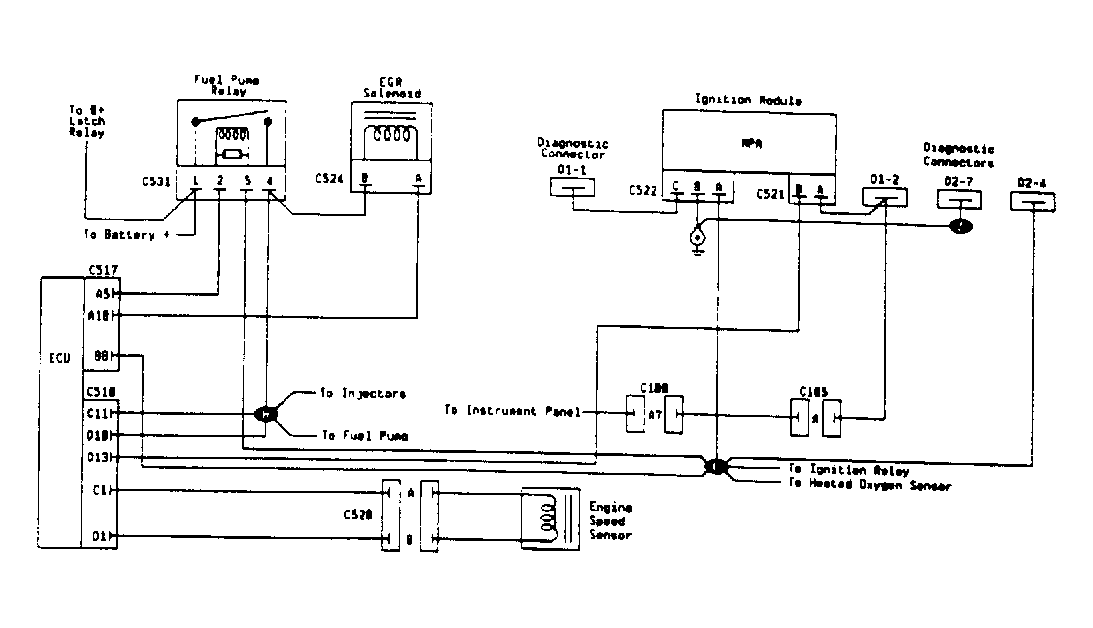

Fig 1: Fault 1013 - Ignition Control Module Line High Schematic

Courtesy of CHRYSLER MOTORS

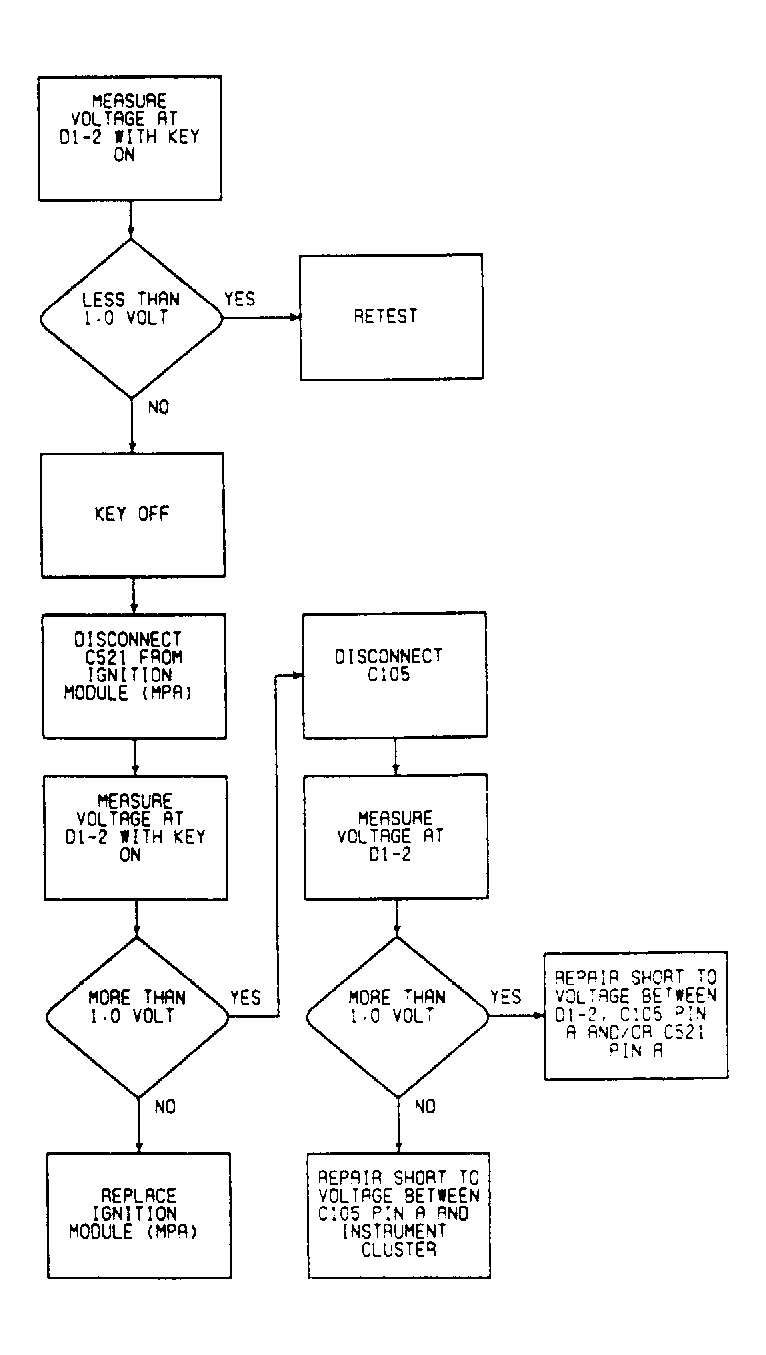

Fig 2: Fault 1013 - Flow Chart

Courtesy of CHRYSLER MOTORS
