Fault 1062 - High A/C Select Line

Fig 1: Fault 1062 (1 of 2) - A/C System Schematic

G108219

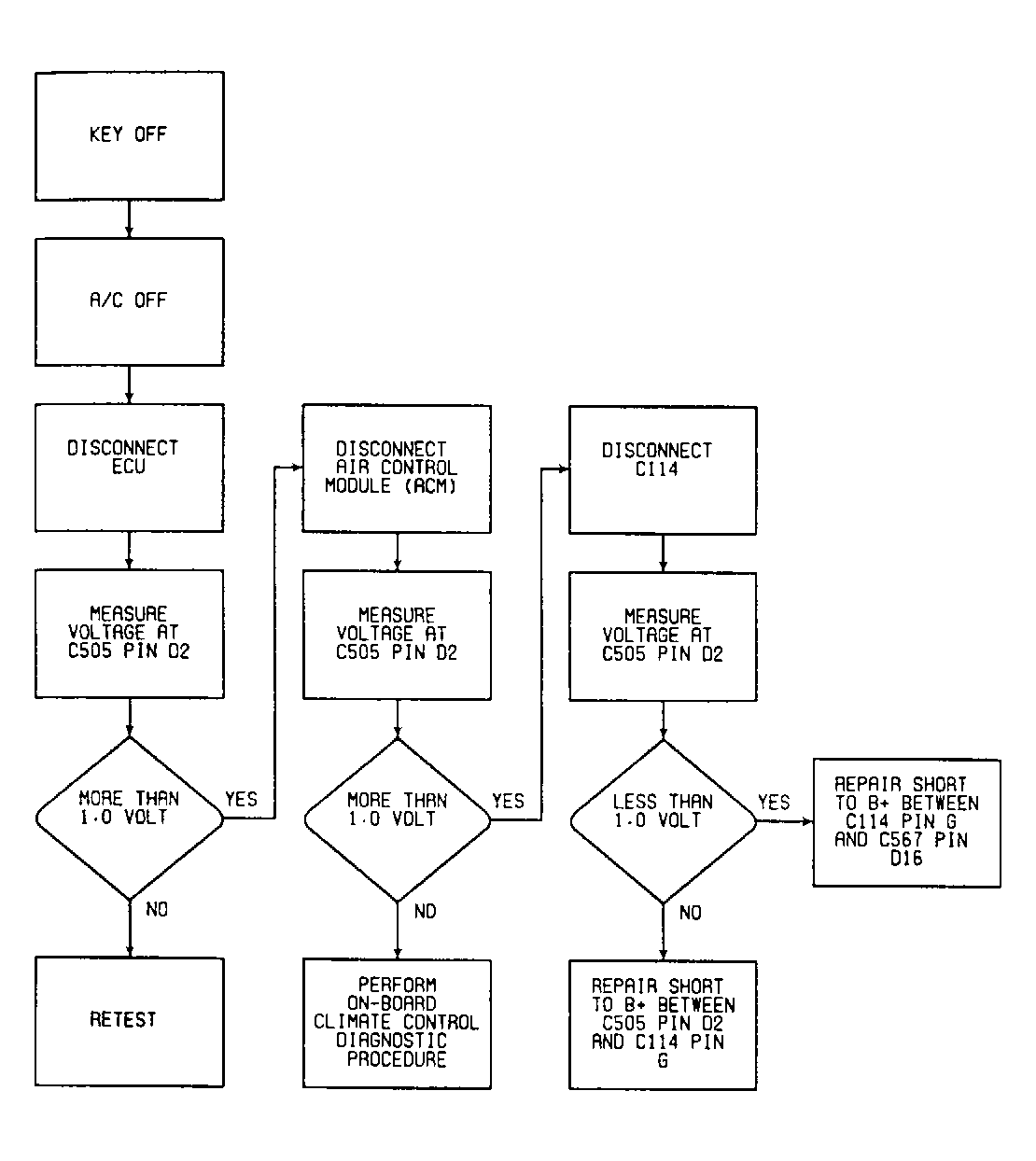

Fig 2: Fault 1062 (2 of 2) - A/C Select Line High Flow Chart

G108226
