Fault 1061 - Low A/C Select Line

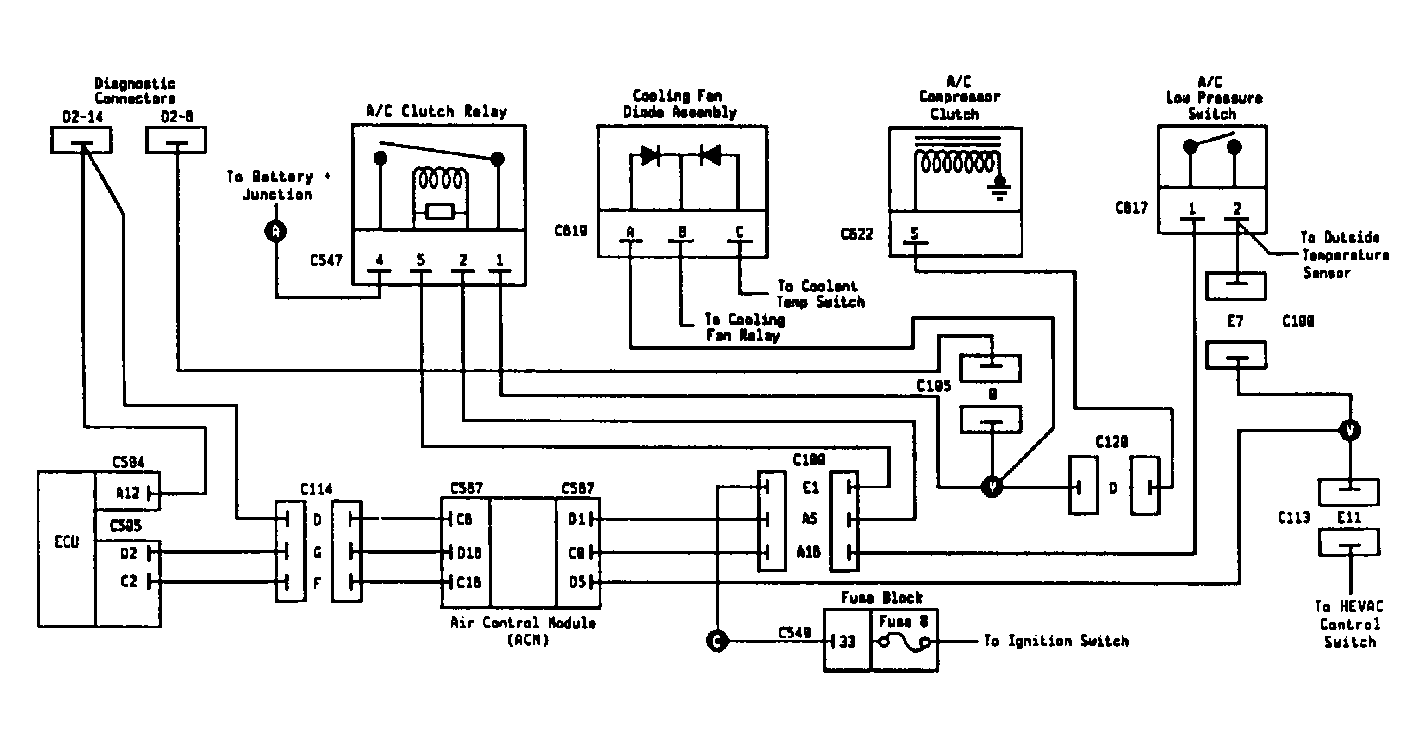

Fig 1: Fault 1061 (1 of 2) - A/C System Schematic

G108219

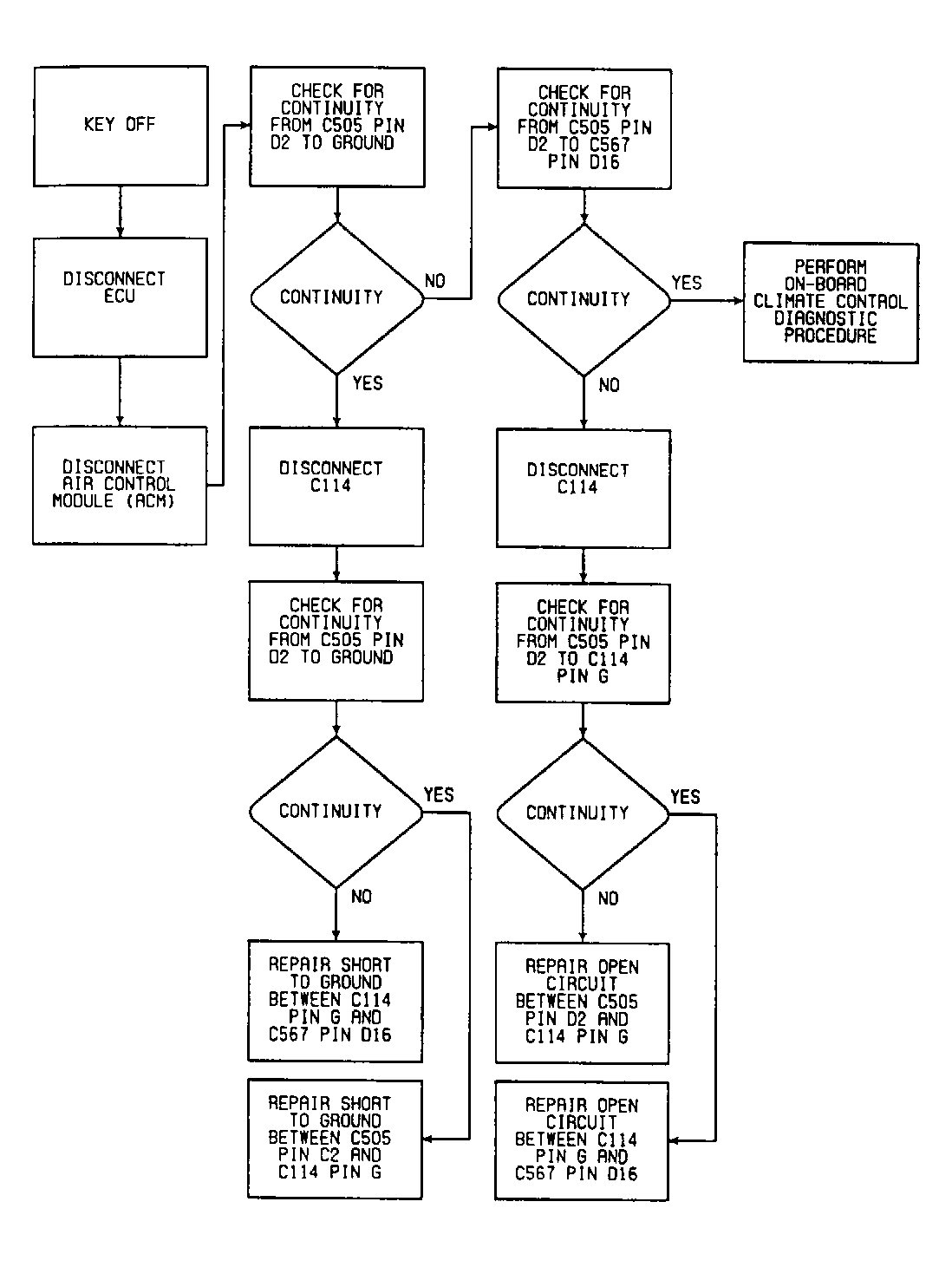

Fig 2: Fault 1061 (2 of 2) - A/C Select Line Low Flow Chart

G108224
