Fault 1060 - High A/C Request Line
Fault 1060 - High A/C Request Line
Fig 1: Fault 1060 (1 of 2) - A/C System Schematic

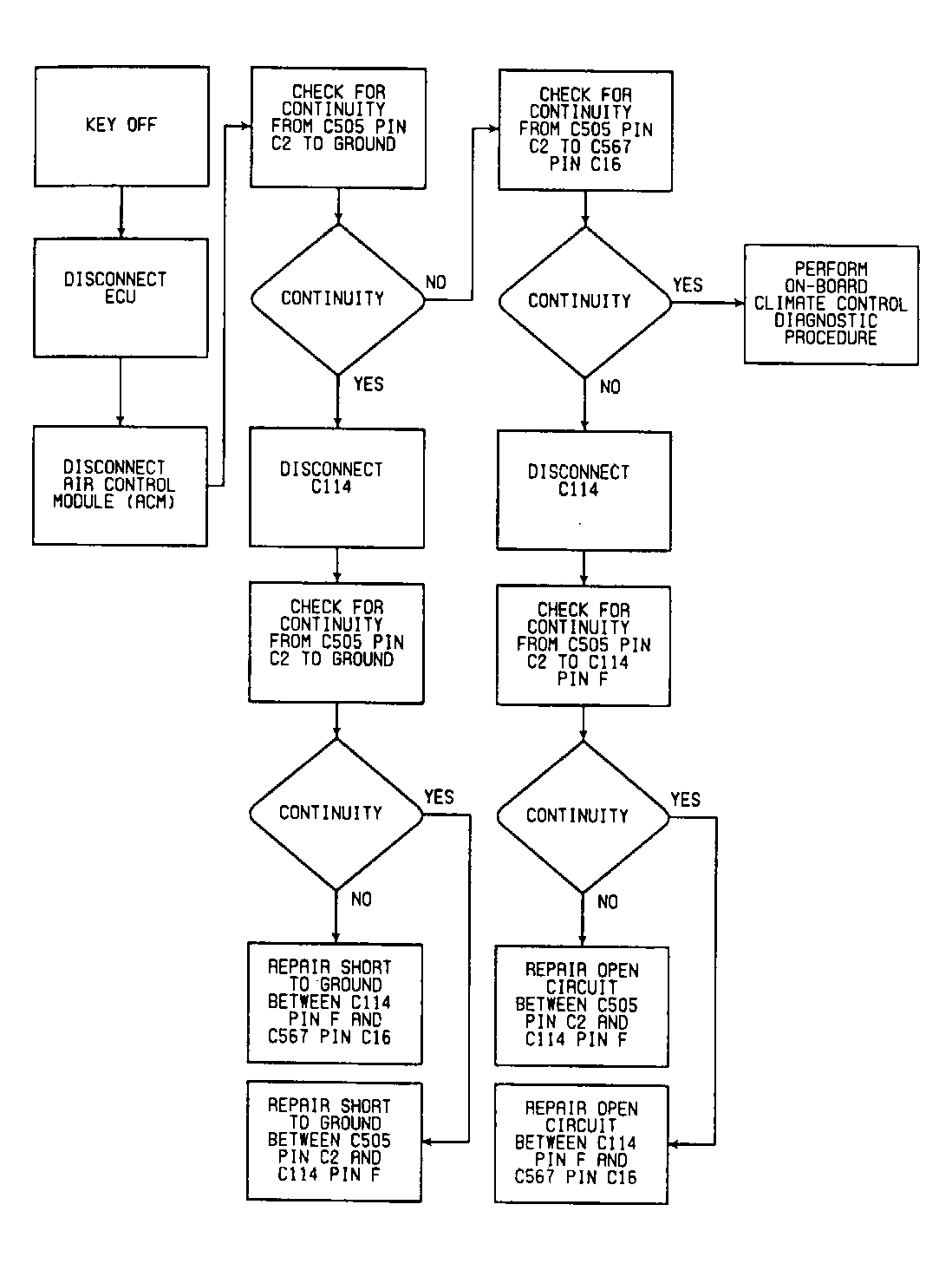

Fig 2: Fault 1060 (2 of 2) - A/C Request Line High Flow Chart
