Fault 1021 - Other Problems

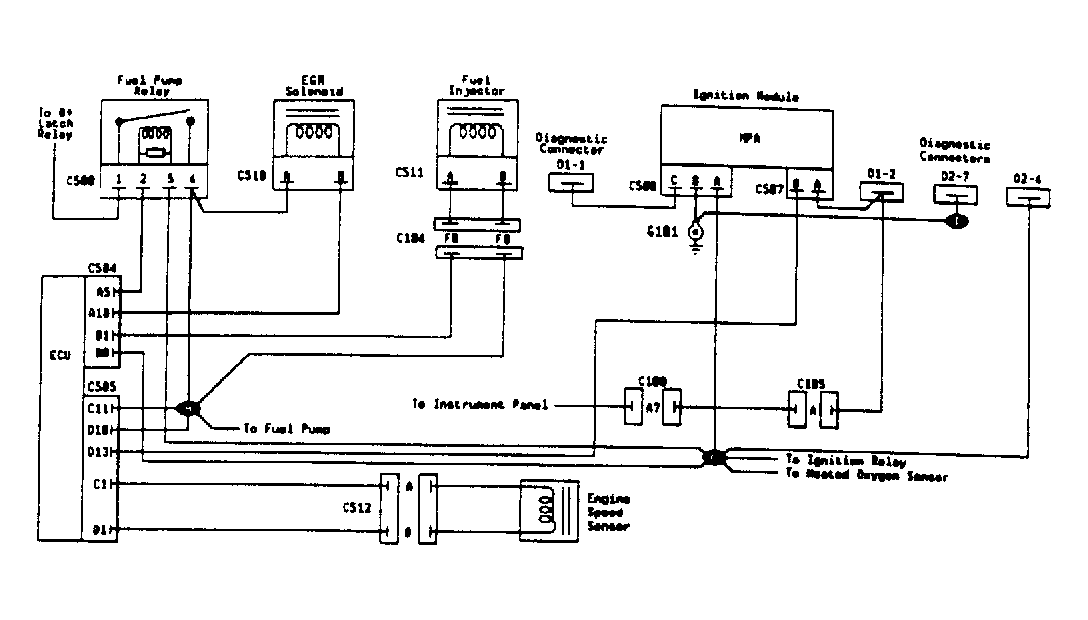

Fig 1: Fault 1021 (1 of 2) - ECU/Ignition System Schematic

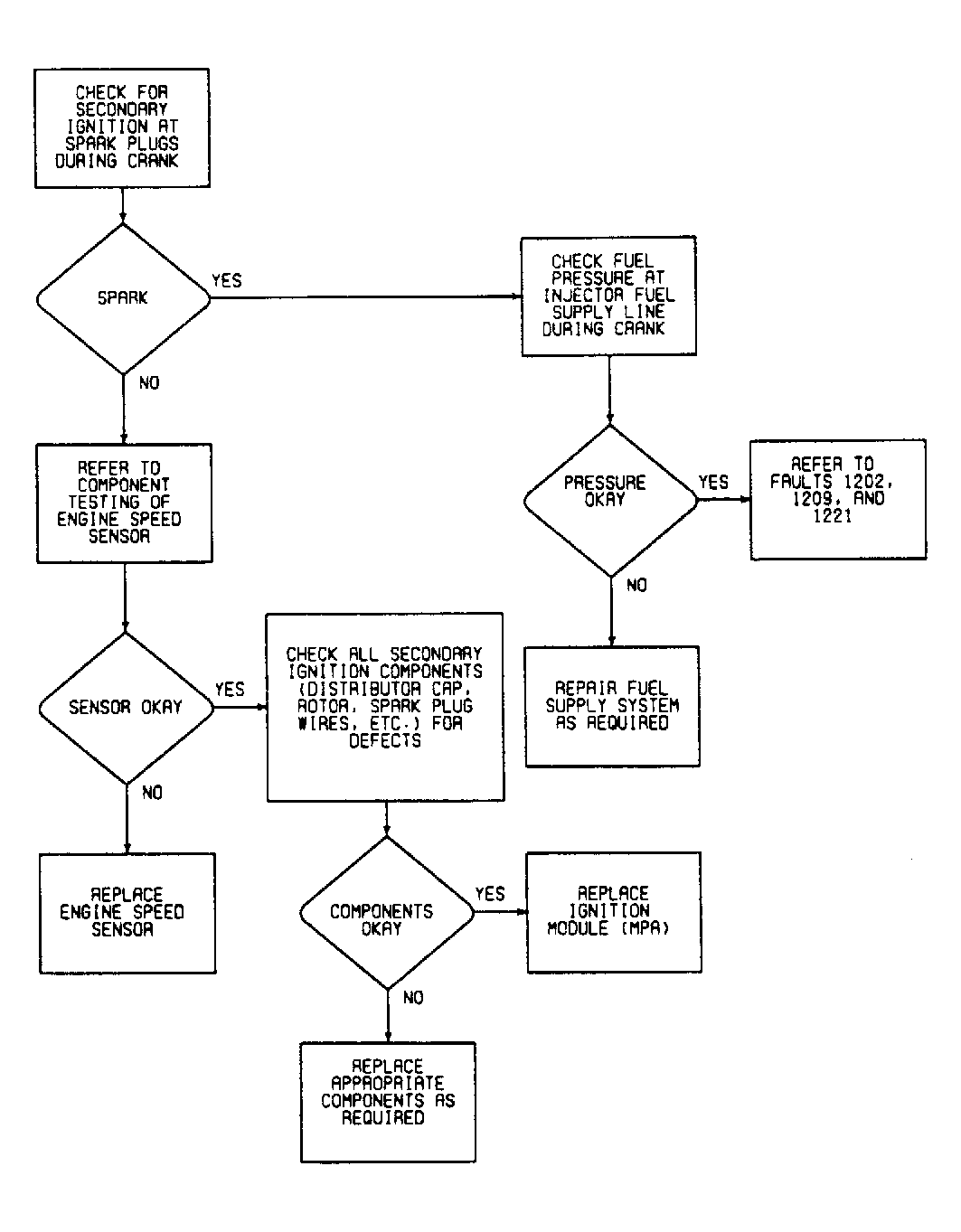

Fig 2: Fault 1021 (2 of 2) - Mechanical, Fuel or Ignition Problems Flow Chart
