Fault 1017 - High Mat Sensor Line

Fig 1: Fault 1017 (1 of 3) - MAT Sensor Schematic
G108152

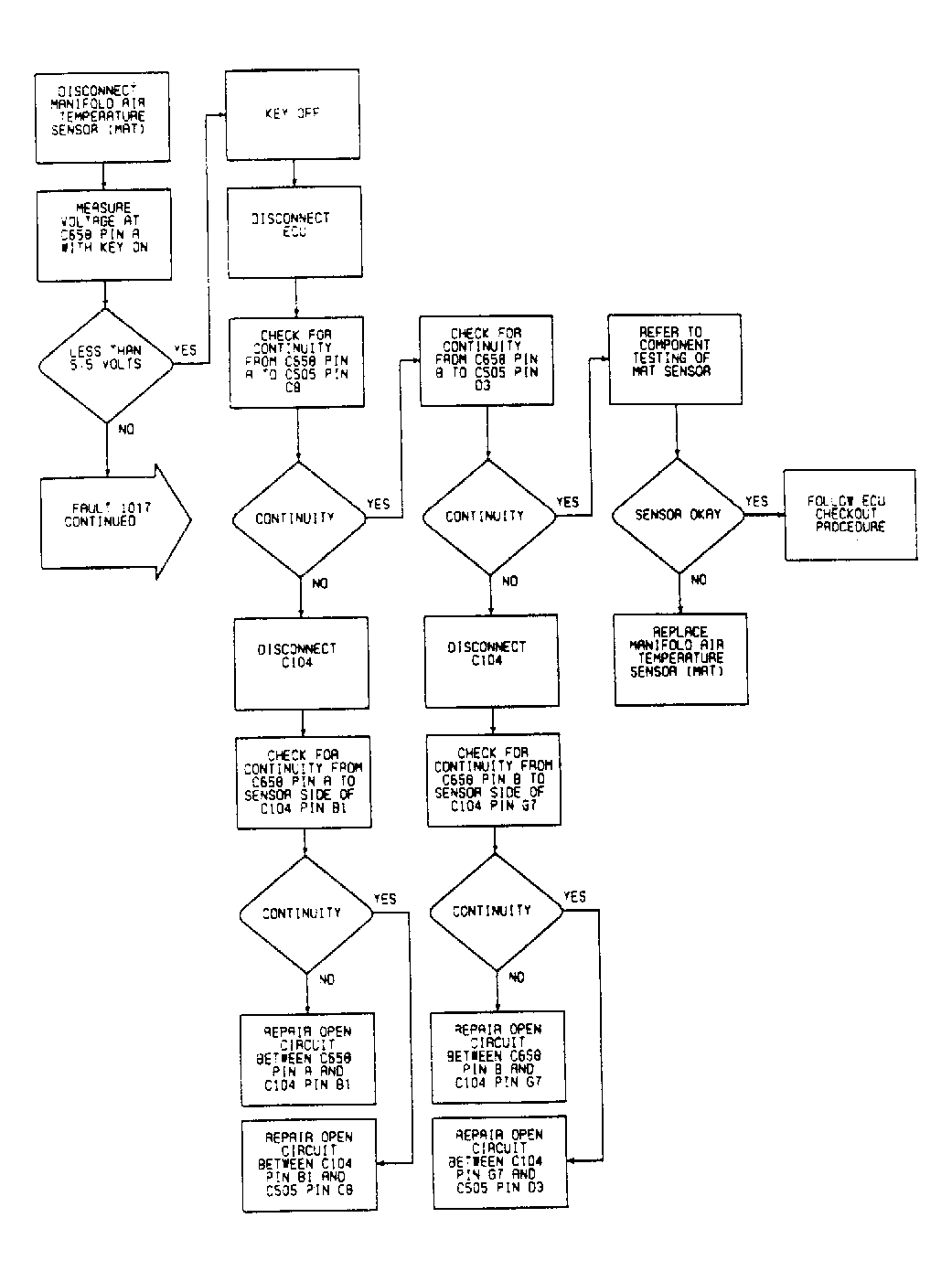

Fig 2: Fault 1017 (2 of 3) - MAT Sensor Line High Flow Chart
G108153

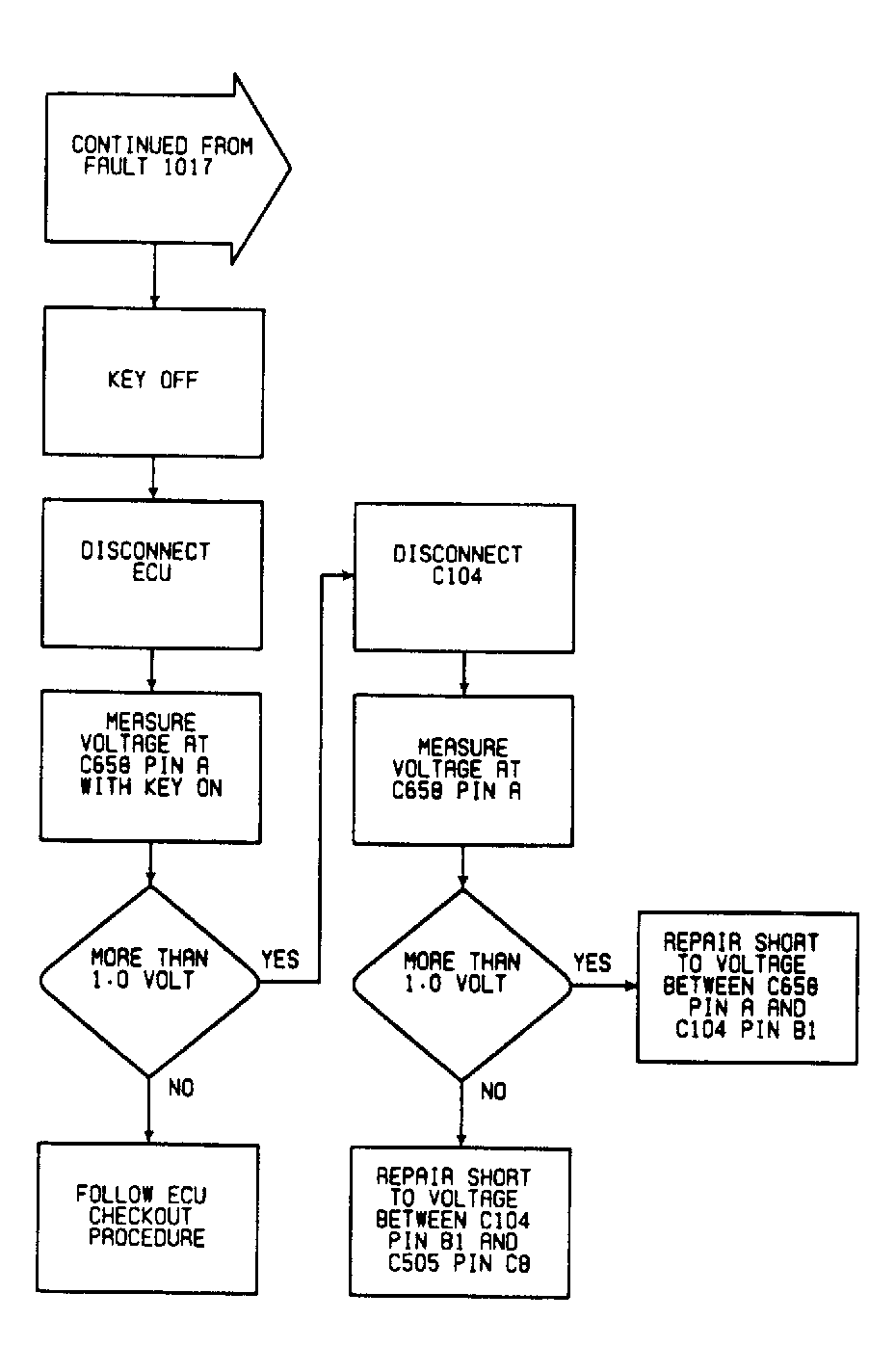

Fig 3: Fault 1017 (3 of 3) - MAT Sensor Line High Flow Chart
G108154
