ECU Connectors

The 2 ECU connectors can be disconnected after the ECU has been removed. The connectors contain 2 rows of terminals. See Fig 1 .

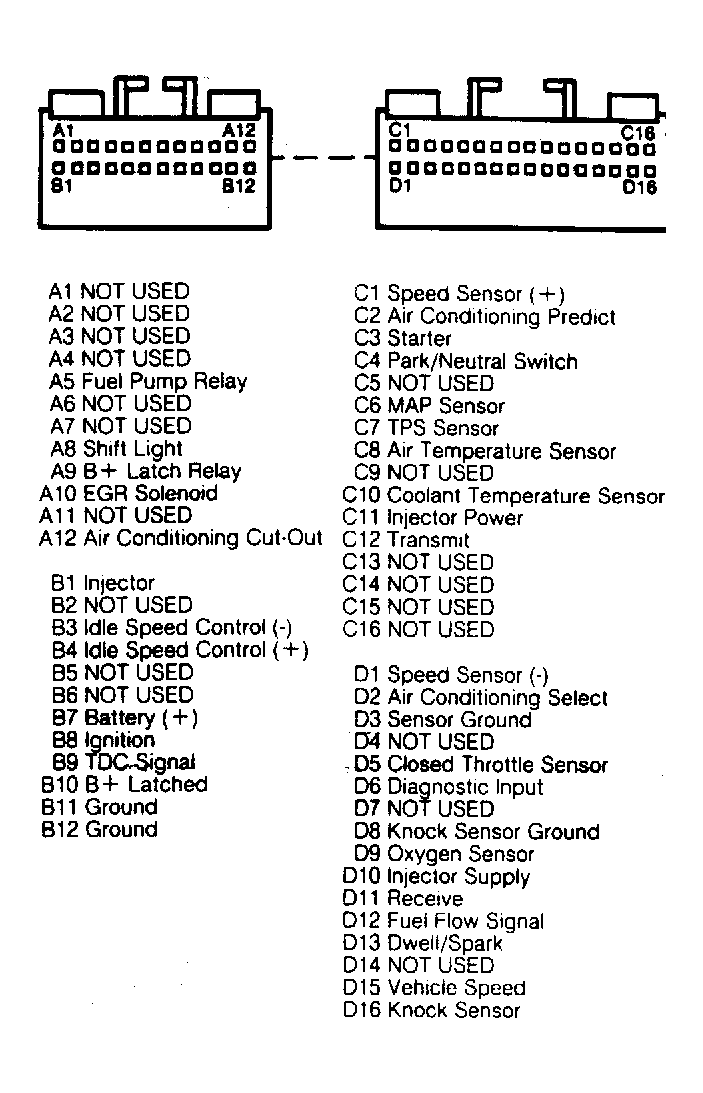

Fig 1: ECU Connector Terminal Location

Courtesy of CHRYSLER MOTORS.
