Diagnostic Connectors

The 2 diagnostic connectors are located on the right side inner fender panel. There is a 6-pin and 15-pin connector. See Fig 1 .

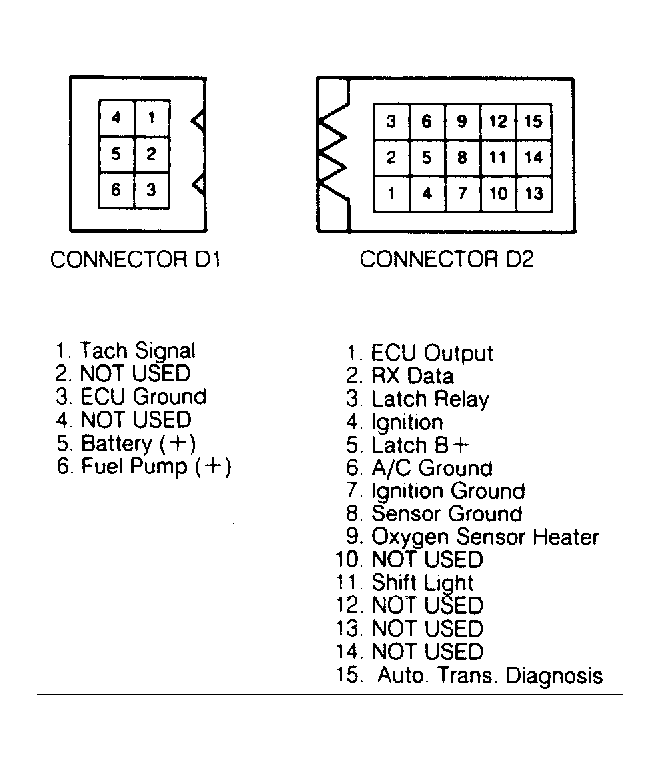

Fig 1: Diagnostic Connector Terminal Location

Courtesy of CHRYSLER MOTORS.
