Coil, Ignition: Installation: 3.6L
- Using compressed air, blow out any dirt or contaminants from around the top of spark plug.
- Check the condition of the ignition coil rubber boot (1). Inspect the opening of the boot (2) for any debris, tears or rips. Carefully remove any debris with a lint free cloth.CAUTION:
Do not apply a silicone based grease such as Mopar® Dielectric Grease to the ignition coil rubber boot. The silicone based grease will absorb into the boot causing it to stick and tear.

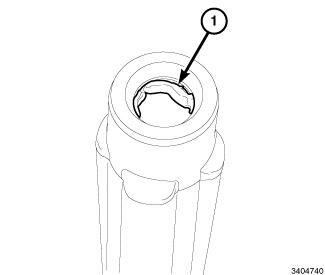

- Place a small, 360° bead of Mopar® Molykote G-5008
lubricant (1) along the inside opening of the coil boot approximately 1 to 2 mm (0.04-0.08 in.) from the chamfer edge but not on the chamfered surface.NOTE: The LH ignition coils are shown in illustration, the RH ignition coils are similar.

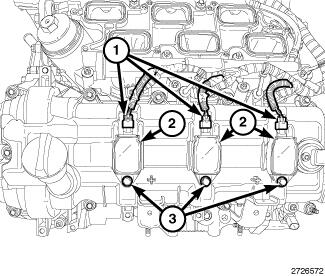

- Install the ignition coil (2) into the cylinder head cover opening. Using a twisting action, push the ignition coil onto the spark plug. Tighten the bolt(s) (3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the ignition coil wire harness connector (1) and install the connector lock.
- If removed, install the intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
- Install the air cleaner inlet tube. Refer to BODY, AIR CLEANER, INSTALLATION .
- Connect the negative battery cable.
