Isolator, Front CROSSMEMBER, Frame: Removal

Remove the engine cradle crossmember (2). Refer to CROSSMEMBER, CRADLE, ENGINE AND SUSPENSION, REMOVAL .
Remove the spacer (1).

Courtesy of CHRYSLER GROUP, LLC

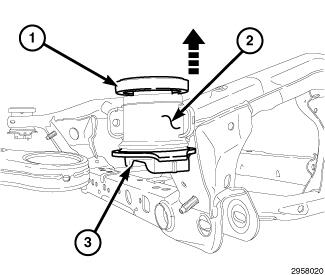

As an installation reference, carefully mark location of the isolator (3) requiring removal from the crossmember (1) (around isolator can flange) using a marker or crayon. Do not use a scratch awl to mark location.
NOTE: Prior to using the special tool, OTC puller 1182 or equivalent (1), lubricate the threads to provide ease of use and promote tool longevity.

Courtesy of CHRYSLER GROUP, LLC

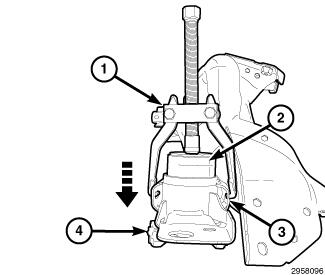

Assemble the tools over the isolator as shown in illustration.
- OTC Puller 1182 or equivalent (1)
- (special tool #6602, Remover/Installer, Bushing) (2)
- Front Engine Cradle (3)
- Isolator (4)
Courtesy of CHRYSLER GROUP, LLC
Using OTC puller 1182 or equivalent (1) and (special tool #6602-2, Remover/Installer, Bushing) (2), remove the isolator (4).
