CROSSMEMBER, Rear: Installation

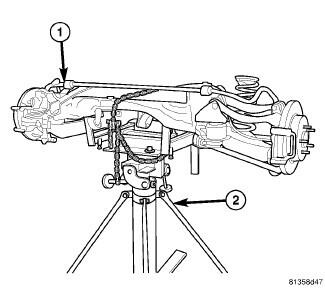

  1. Raise the crossmember (1) to the body mounting points. As the crossmember is raised, align the shocks with pockets in spring links. Do not install the bolts at this time.
    GC0209379Courtesy of CHRYSLER GROUP, LLC

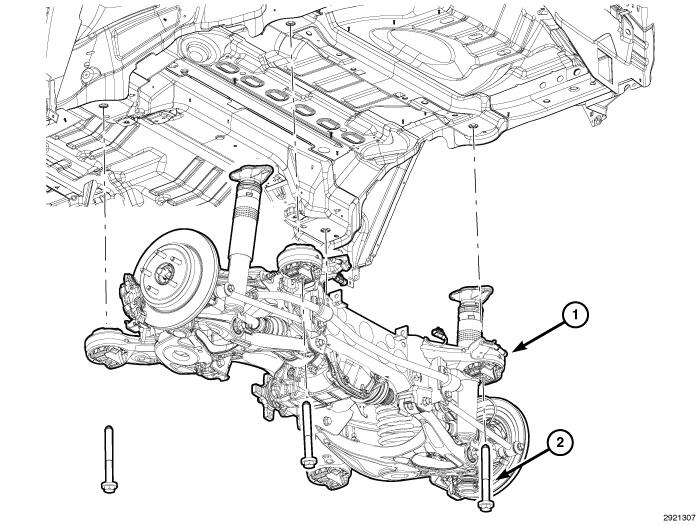

  2. Continue to raise the crossmember (1) with the jack until the crossmember is close to the marks previously made on the body.
    GC0209383Courtesy of CHRYSLER GROUP, LLC

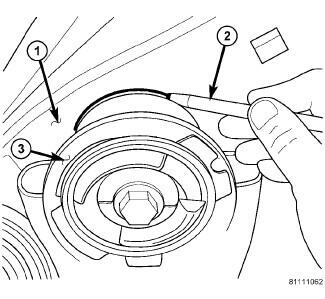

  3. Shift the crossmember as necessary to line up the mounts (3) with the location marks (2) drawn on the body (1) before removal.
    GC0209377Courtesy of CHRYSLER GROUP, LLC
  4. Continue to raise the crossmember (1) with the jack until the crossmember mounting bolts (2) can be installed.
    GC0209383Courtesy of CHRYSLER GROUP, LLC
  5. Install the left side crossmember mounting bolts, but not the right side bolts. It is not necessary to tighten the bolts at this point.
    CAUTION:

    To avoid damaging other components of vehicle, do not lower crossmember any further than necessary to install coil spring (2).

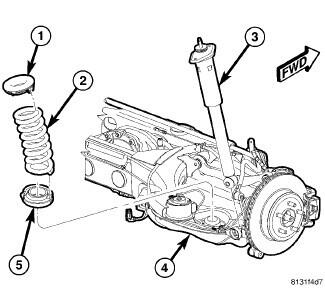

  6. Slowly  lower the jack allowing right side of the crossmember (4) to drop. Do not lower jack at a fast rate.  Lower jack just enough to allow for the coil spring (2) installation. Do not lower jack any further than necessary.
    NOTE: Before installing coil spring, be certain the isolators (1 and 5) are completely installed on the ends of the coil spring (2).
    GC0209378Courtesy of CHRYSLER GROUP, LLC
  7. Install the coil spring (2) with the isolators (1 and 5) into the spring pocket of the spring link, fitting the lower isolator to the shape of the pocket, then align top of spring with the body mount.

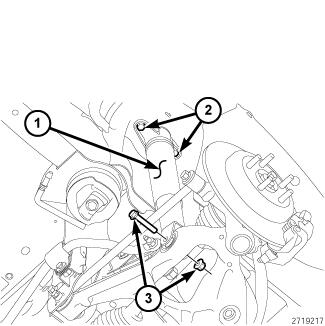

  8. Carefully raise the jack, guiding the coil spring and lower end of shock absorber (1) into the mounted positions. Once the shock absorber (1) lower mounting hole lines up with the hole in the control arm, stop jacking.
    GC0209384Courtesy of CHRYSLER GROUP, LLC
  9. Install the lower shock clevis bolt/nut (3).
  10. Raise the support, on the lower control arm, to normal ride height and tighten the lower shock clevis bolt/nut (3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  11. Raise the right side of the crossmember (1) into mounted position. Install right side crossmember mounting bolts (2). Snug, but do not fully tighten bolts at this time.
    GC0209383Courtesy of CHRYSLER GROUP, LLC
  12. Remove both front and rear crossmember mounting bolts (2) on the left  side of vehicle.
    CAUTION:

    To avoid damaging other components of vehicle, do not lower crossmember any further than necessary to install coil spring (2).

  13. Slowly  lower the jack, allowing the left side of the crossmember (4) to drop. Do not lower jack at a fast rate.  Lower the jack just enough to allow the coil spring (2) installation. Do not lower jack any further than necessary.
    NOTE: Before installing coil spring, be certain the isolators (1 and 5) are completely installed on ends of the coil spring (2).
    GC0209378Courtesy of CHRYSLER GROUP, LLC
  14. Install coil spring (2) with the isolators (1 and 5) into the spring pocket of the spring link, fitting the lower isolator to the shape of the pocket, then align top of spring with the body mount.
  15. Carefully raise the jack, guiding the coil spring and lower end of the shock absorber (1) into mounted positions. Once the shock absorber (1) lower mounting hole lines up with hole in the control arm, stop jacking.
    GC0209384Courtesy of CHRYSLER GROUP, LLC
  16. Install the lower shock clevis bolt/nut (3).
  17. Raise the support on the lower control arm to normal ride height and tighten the lower shock clevis bolt/nut (3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  18. Raise the left side of the crossmember (1) into mounted position.
    GC0209383Courtesy of CHRYSLER GROUP, LLC
  19. Install the left side crossmember mounting bolts (2). Snug, but do not fully tighten bolts at this time.
  20. Once the mounts are lined up with location marks, on both sides of vehicle, tighten all four rear suspension crossmember support bolts (2) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

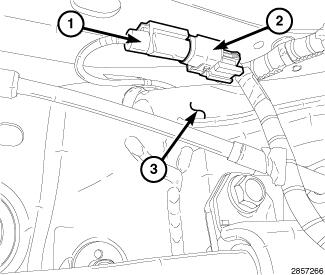

  21. Route the wheel speed sensor and connect the wheel speed sensor wiring connector (1) to the wiring harness connector (2).
    GC0210192Courtesy of CHRYSLER GROUP, LLC
  22. Attach the wheel speed sensor (1) wiring routing clip (not shown) to the top of the cradle (3).
  23. Connect the brake cable end (2) to the equalizer (3).
    NOTE: Front brake rotor shown in illustration, rear brake rotor similar.
    NOTE: Brake caliper slide pins (1) should be free from debris.
    GC0210156Courtesy of CHRYSLER GROUP, LLC

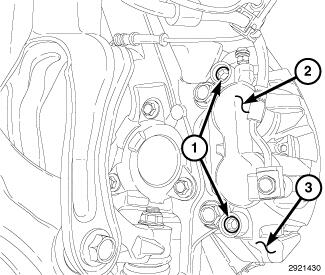

  24. Position the brake caliper/pads and tighten the brake caliper slide bolts (guide pins) (1) to the proper torque specifications. Refer to TORQUE SPECIFICATION .
    GC0209382Courtesy of CHRYSLER GROUP, LLC
  25. Install the caliper slide bolt dust shields.

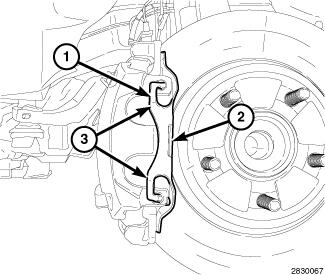

  26. Install the brake caliper tension clip (3).
    GC0210303Courtesy of CHRYSLER GROUP, LLC
  27. Install the tire and wheel assembly. Refer to WHEEL INSTALLATION .
  28. Install the rear driveshaft. Refer to SHAFT, DRIVE, REAR, INSTALLATION .
  29. Pump brake pedal several times to ensure vehicle has a firm brake pedal before moving vehicle.
  30. Perform wheel alignment, paying special attention to thrust angle. If rear crossmember needs to be shifted to align thrust angle. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
