Description And Operation: Description

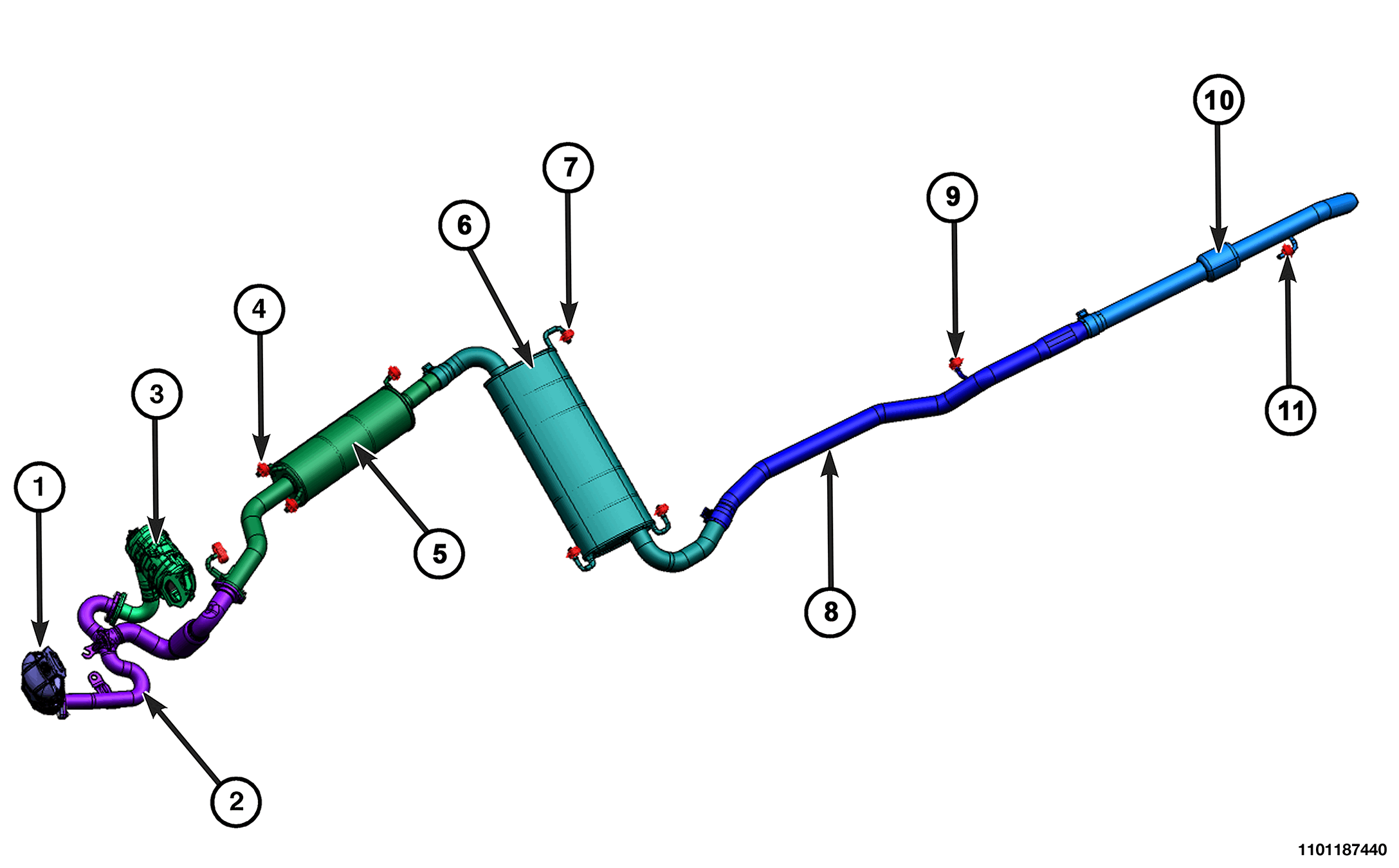

 Courtesy of CHRYSLER GROUP, LLC
|
| 1 - Front Catalytic Converter |
| 7 - Exhaust Isolator |
| 2 - Exhaust Cross Under Pipe |
| 8 - Exhaust Extension Pipe |
| 3 - Rear Catalytic Converter |
| 9 - Exhaust Isolator |
| 4 - Exhaust Isolator |
| 10 - Exhaust Tail Pipe |
| 5 - Exhaust Resonator |
| 11 - Exhaust Isolator |
| 6 - Exhaust Muffler |
| |

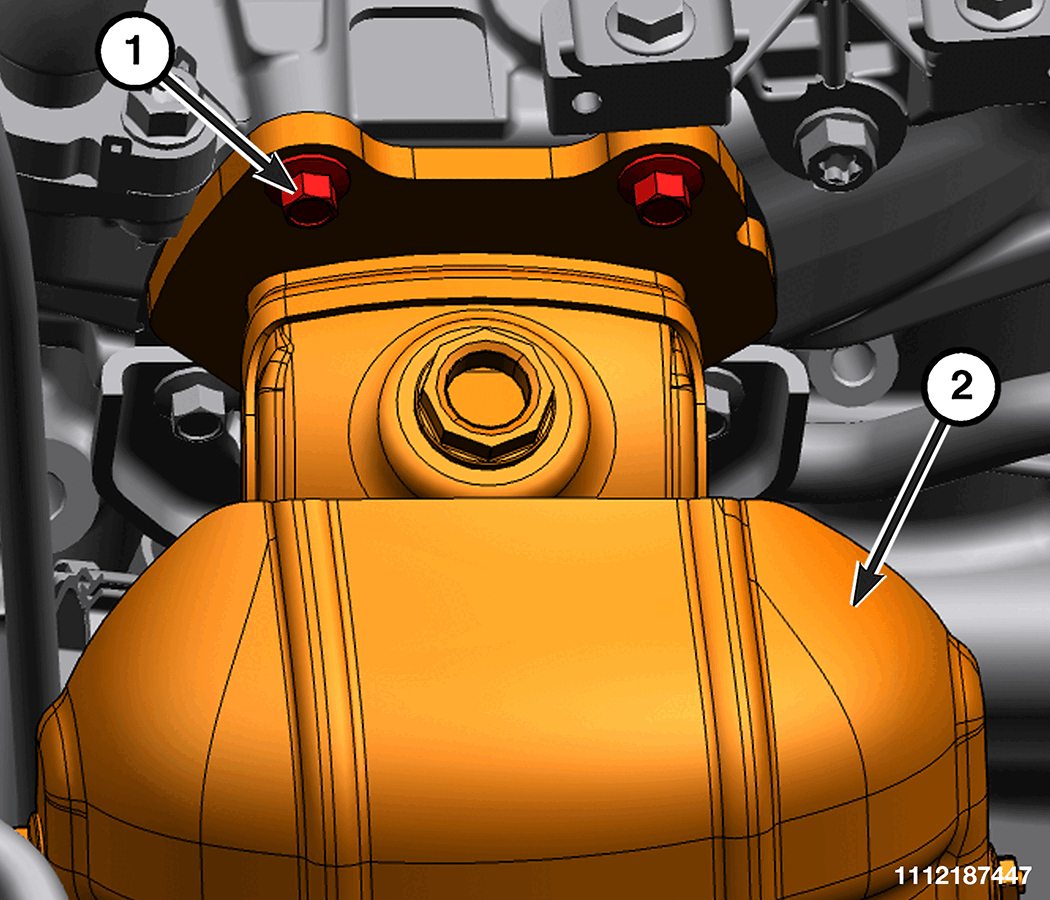

 Courtesy of CHRYSLER GROUP, LLC
|
| 1 - Catalytic Converter to Cylinder Head Bolts |
| 2 - Catalytic Converter |
The 3.6L catalytic converters are bolted to the cylinder head. A catalytic convertor bracket is used to hold the lower section of the flange while catalytic converter to cylinder head bolts are used to secure the flange to the cylinder head.
