Hoisting Points

The four points for lifting the vehicle are located in the underbody aerodynamic guards and are closed with special guards that must be removed as described below.

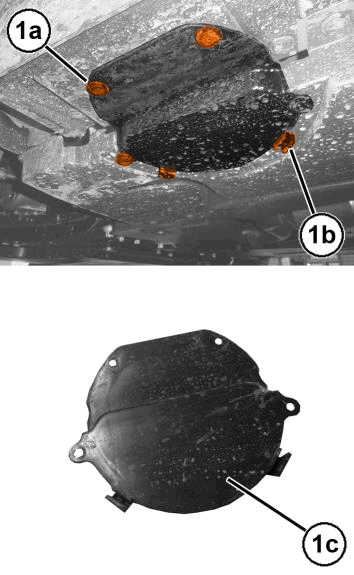

GC0216524Courtesy of CHRYSLER GROUP, LLC

Using the appropriate tool, remove the buttons (1a) and open the clips (1b) to remove the guard (1c).

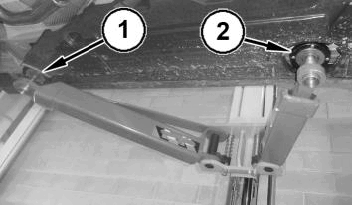

GC0216523Courtesy of CHRYSLER GROUP, LLC

Be careful to select the correct size lift pads and properly position the pads to the dedicated openings (1 and 2) as indicated in the figure.
