Sensor, Dynamics: Removal

NOTE:

If the dynamics sensor is replaced, it must be initialized using the scan tool.

  1. Disconnect and isolate the negative battery cable. Wait two minutes for the system capacitor to discharge before continuing service.
  2. Remove the center console. Refer to CONSOLE, FLOOR, END CAP, REMOVAL .

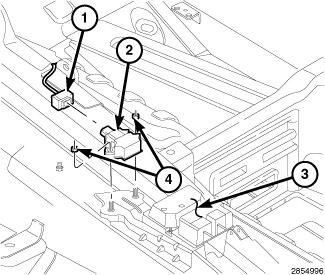

    GC0210195Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect wire harness connector (1) from the dynamics sensor (2).
  4. Remove the nuts (4) securing the sensor to the floor and remove the sensor.
