Sensor, Crankshaft Position: Installation

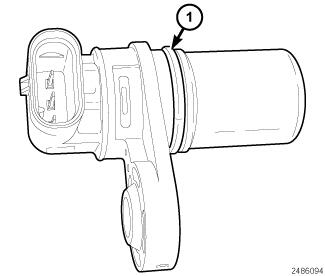

- Check the condition of the Crankshaft Position (CKP) sensor O-ring (1), and replace if necessary.
- Clean the machined hole in the engine block.

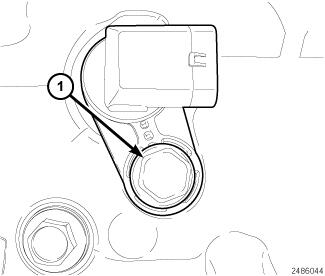

- Apply a small amount of engine oil to the CKP sensor O-ring (1).CAUTION:
Before tightening the CKP sensor mounting bolt (1), be sure the sensor is completely flush to the cylinder block. If sensor is not flush, damage to the sensor mounting tang may result.
- Install the CKP sensor into the engine block. Tighten bolt (1) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS
.

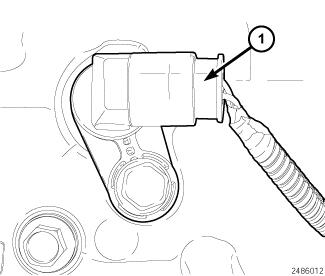

- Connect the CKP sensor wire harness connector (1).
- Install the starter. Refer to STARTER, INSTALLATION .
- Remove support and lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
NOTE:
The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
