Wheel, Steering: Installation
CAUTION:
When installing the steering wheel, the clockspring must be centered in its travel to avoid overextending the clockspring inner parts, causing the clockspring to become inoperative. If removed and handled properly using the correct procedures, it should be in the "centered" position at this time. If there is any question as to whether the clockspring is in the "centered" position of travel, perform the clockspring centering procedure before proceeding to avoid damaging clockspring.
- Install the Electronic Vehicle Information Center (EVIC) switches. Refer to SWITCH, EVIC CONTROL, INSTALLATION .
- Install the remote audio control switches. Refer to SWITCH, REMOTE RADIO, INSTALLATION
.

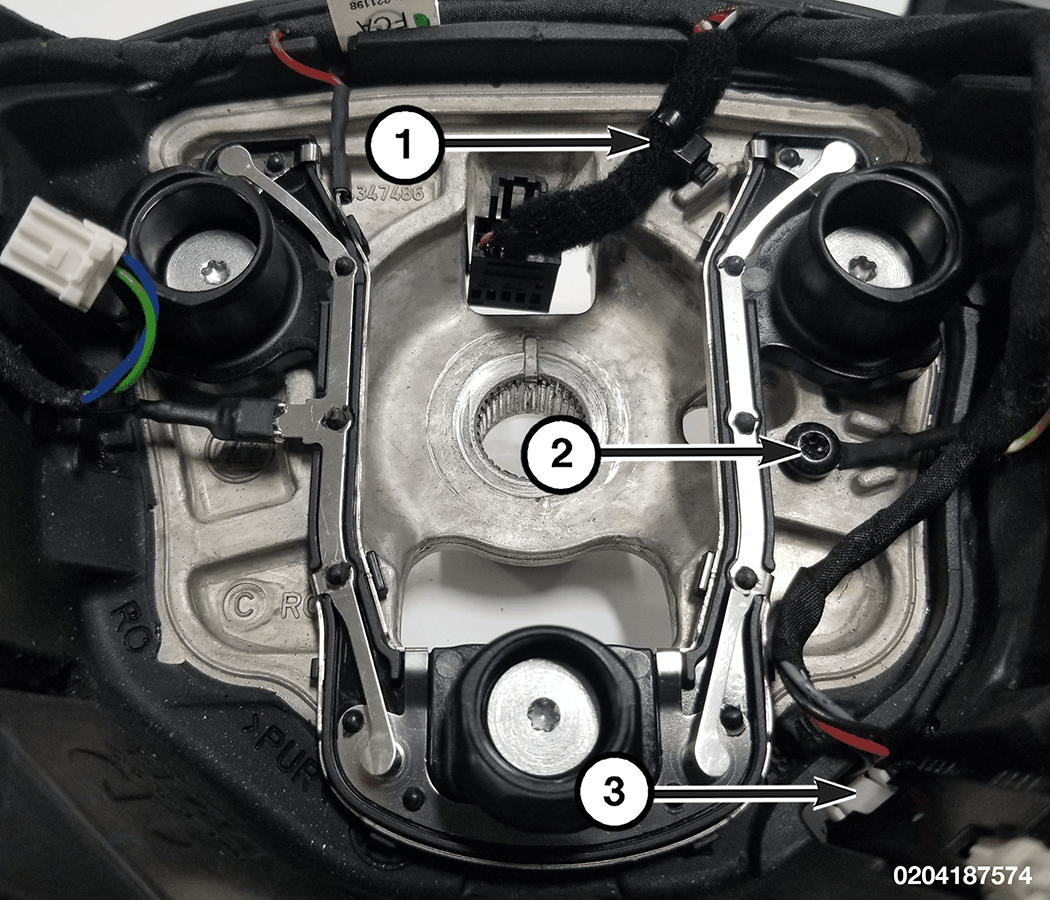

- Connect the heated steering wheel module wire harness connector (3).
- Install the steering wheel bezel. Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .
- Install the screw (2) and tighten securely.
- Secure the wire harness routing clip (1).
- Install the horn switch. Refer to SWITCH, HORN, INSTALLATION .
- Position the steering wheel on the steering column shaft.

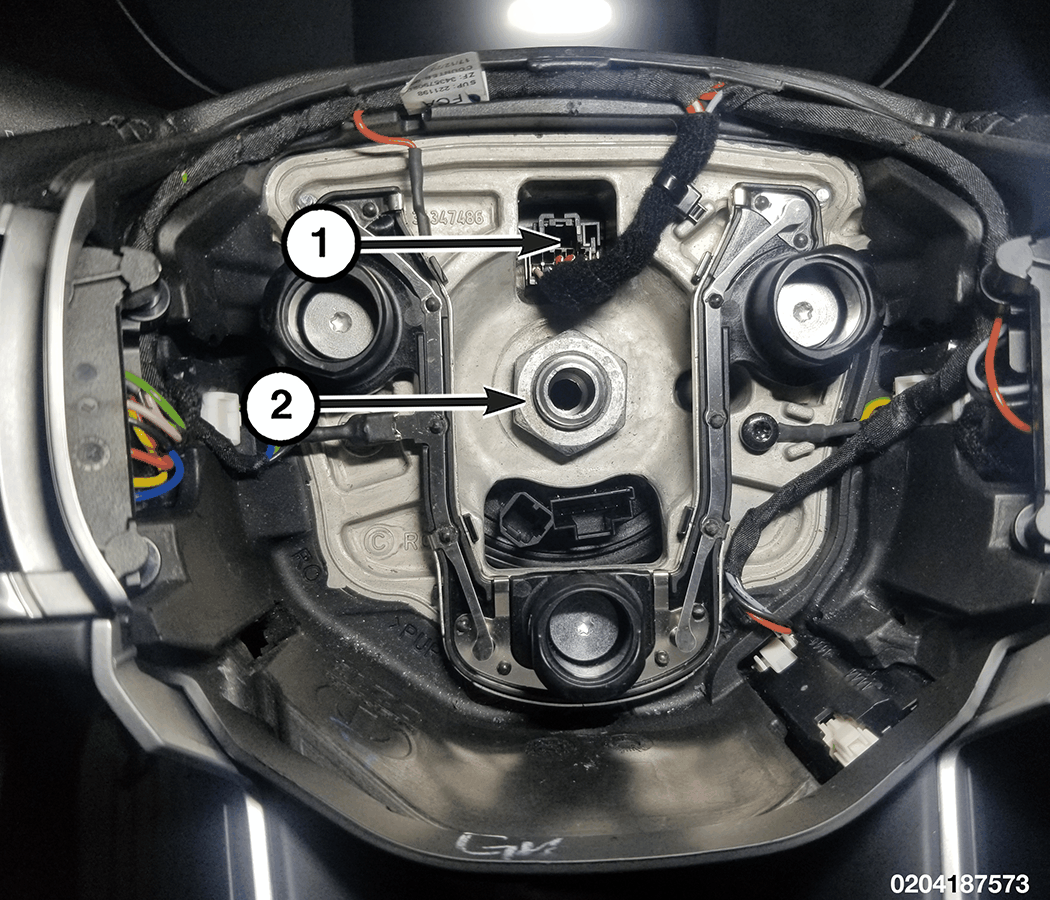

- Install a NEW steering wheel nut (2) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Connect the steering wheel wire harness connector (1).

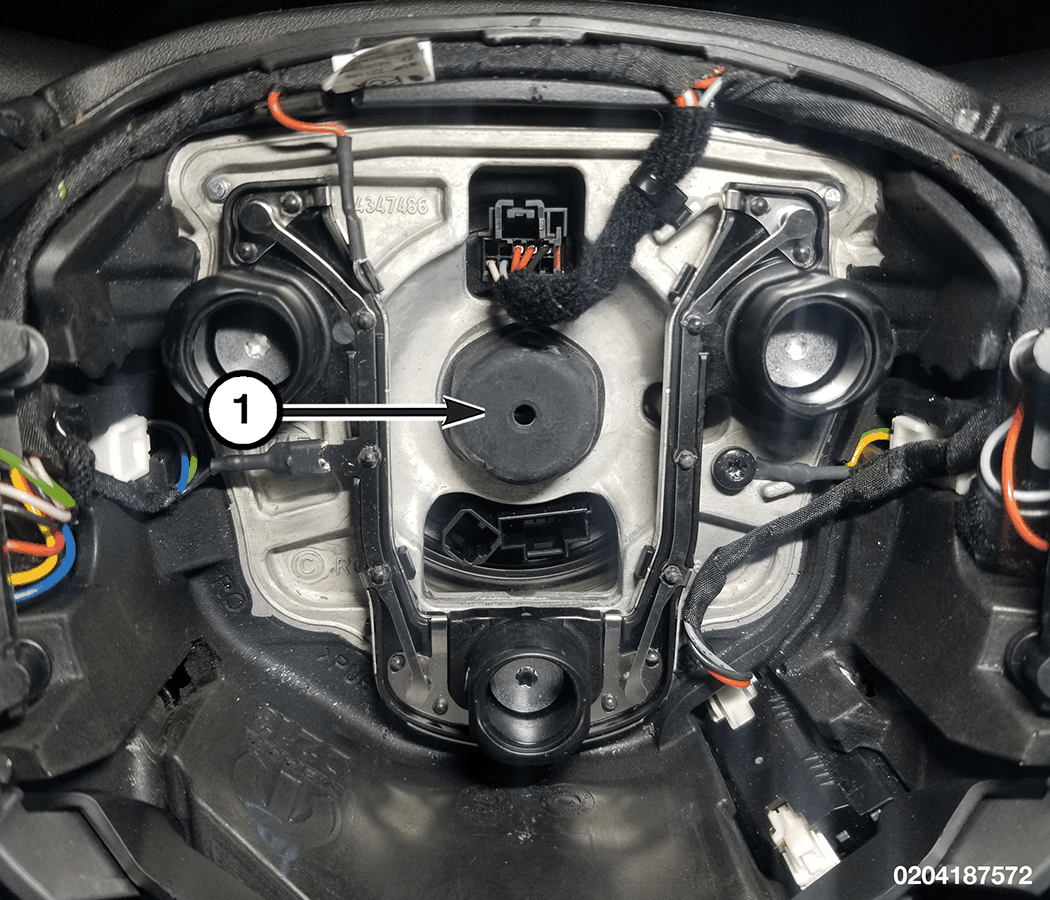

- Install the steering wheel nut cover (1).
- Install the driver airbag. Refer to AIR BAG, DRIVER, INSTALLATION .
- Reconnect the battery ground terminal.
