Sensor, Manifold Absolute Pressure (Map): Installation

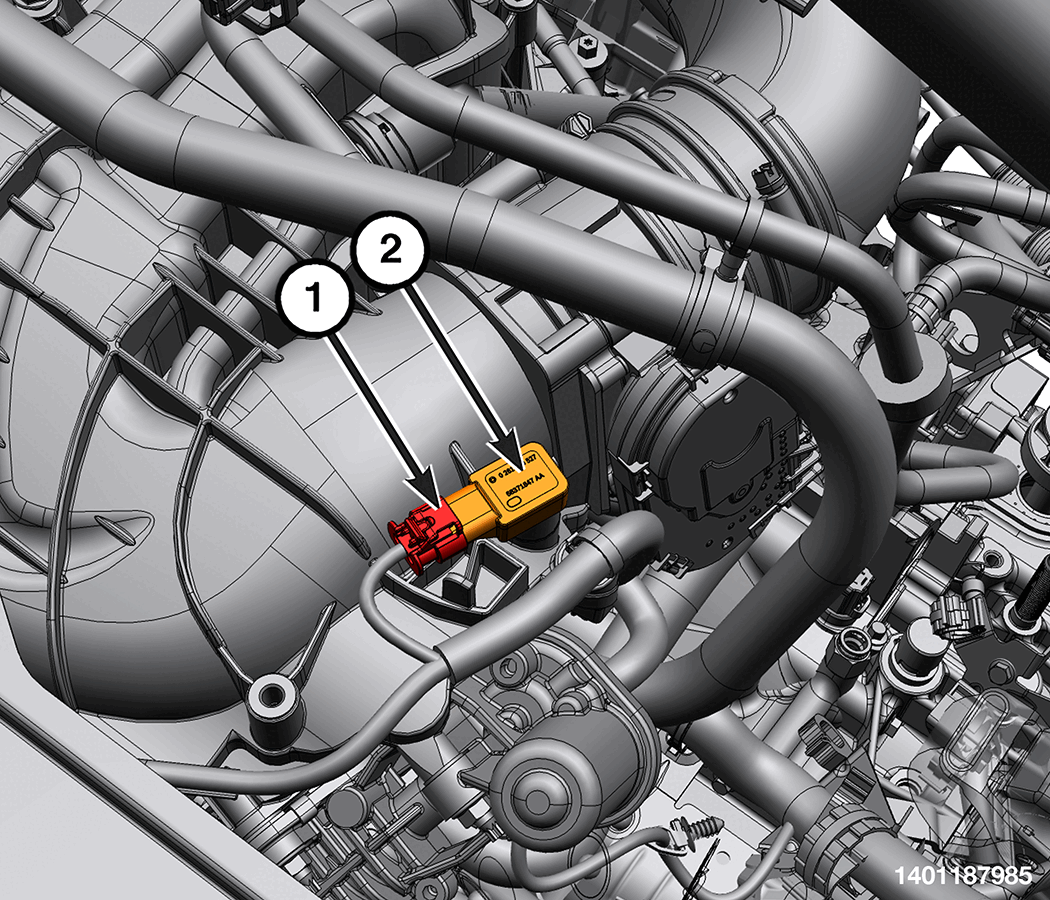

Courtesy of CHRYSLER GROUP, LLC

The manifold air pressure (MAP) sensor O-ring (1) can be reused if not damaged.
Apply a small amount of engine oil to the sensor O-ring (1).

Courtesy of CHRYSLER GROUP, LLC
Install the MAP sensor (2) into the upper intake manifold and rotate 1/4 turn clockwise.
Connect and lock the MAP sensor wire harness connector.
