Sensor, Air Temperature, Inlet: Installation

  1. Inspect the outlet air temperature sensor sealing washer and replace if necessary.

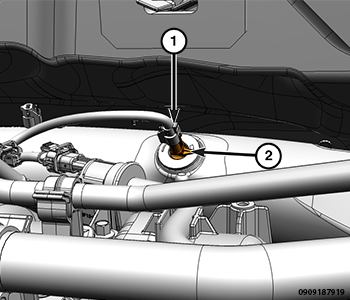

    GC0203841Courtesy of CHRYSLER GROUP, LLC
  2. Install the outlet air temperature sensor (2).
  3. Connect the outlet air temperature sensor wire harness connector (1).
