Sensor, Active Damping: Removal: Front

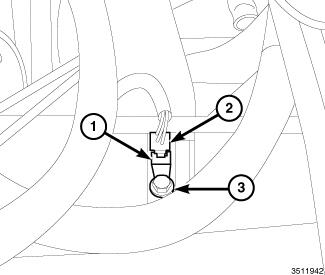

GC0210291Courtesy of CHRYSLER GROUP, LLC
NOTE:

Left side shown, right side similar.

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Release the terminal locking tab (1).
  3. Disconnect the wiring harness connector (2).
  4. Remove the sensor retaining bolt (3) and remove the sensor from the vehicle.
