Sensor, Knock: Installation: 6.2L

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Over or under tightening the knock sensor mounting bolts will affect knock sensor performance, possibly causing improper spark control.

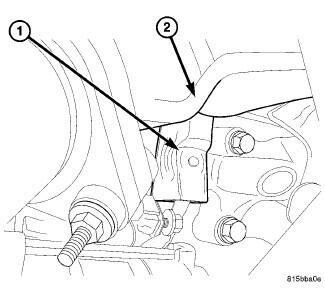

Install the knock sensor (1) onto the cylinder block.
Tighten the bolt (2) to the proper specification. Refer to TORQUE SPECIFICATIONS .
Connect the knock sensor wire harness connector (5).

Courtesy of CHRYSLER GROUP, LLC
Snap the heat shield (1) onto the knock sensor.
Install the front skid plate. Refer to PLATE, SKID, FRONT, INSTALLATION .
Connect the negative battery cable.
