Bushing(S), Lower Control Arm: Removal

  1. Remove the lower control arm. Refer to ARM, LOWER CONTROL, REMOVAL .
    NOTE:

    For reference only.

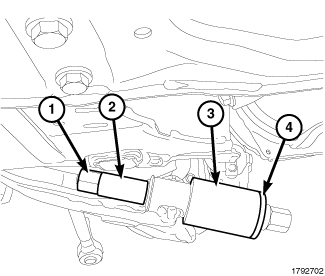

    GC0124378Courtesy of CHRYSLER GROUP, LLC
  2. Using (special tool #10141, Remover/Installer, LCA Bushing) along with (special tool #8839, Screw Assembly), and adapters (special tool #10141-4, Remover/Installer), (2), (special tool #10141, Remover/Installer, LCA Bushing) 2-1 (3), and (special tool #10141, Remover/Installer, LCA Bushing) 2-2 (4), press the bushing out of the lower control arm.
