Shroud, Steering Column, Upper: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Position the upper steering column shroud to the steering column.

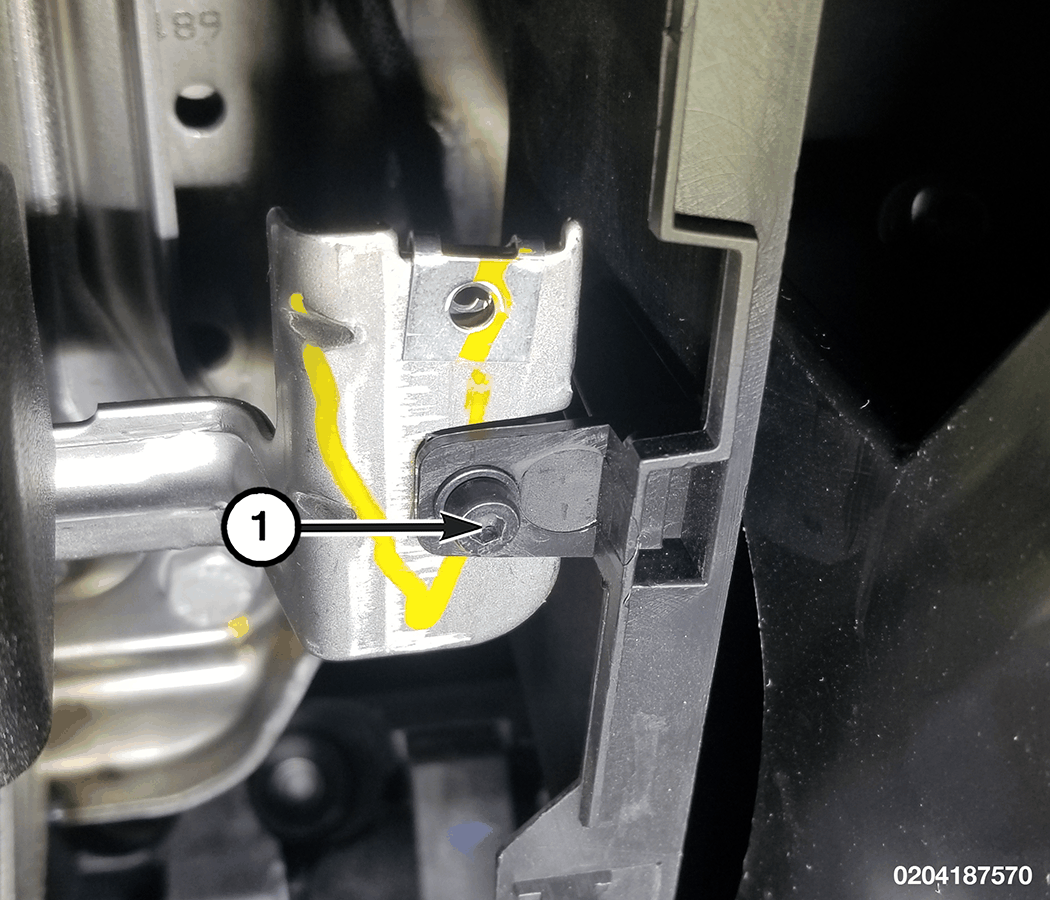

2. Install the upper steering column shroud screw (1) and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

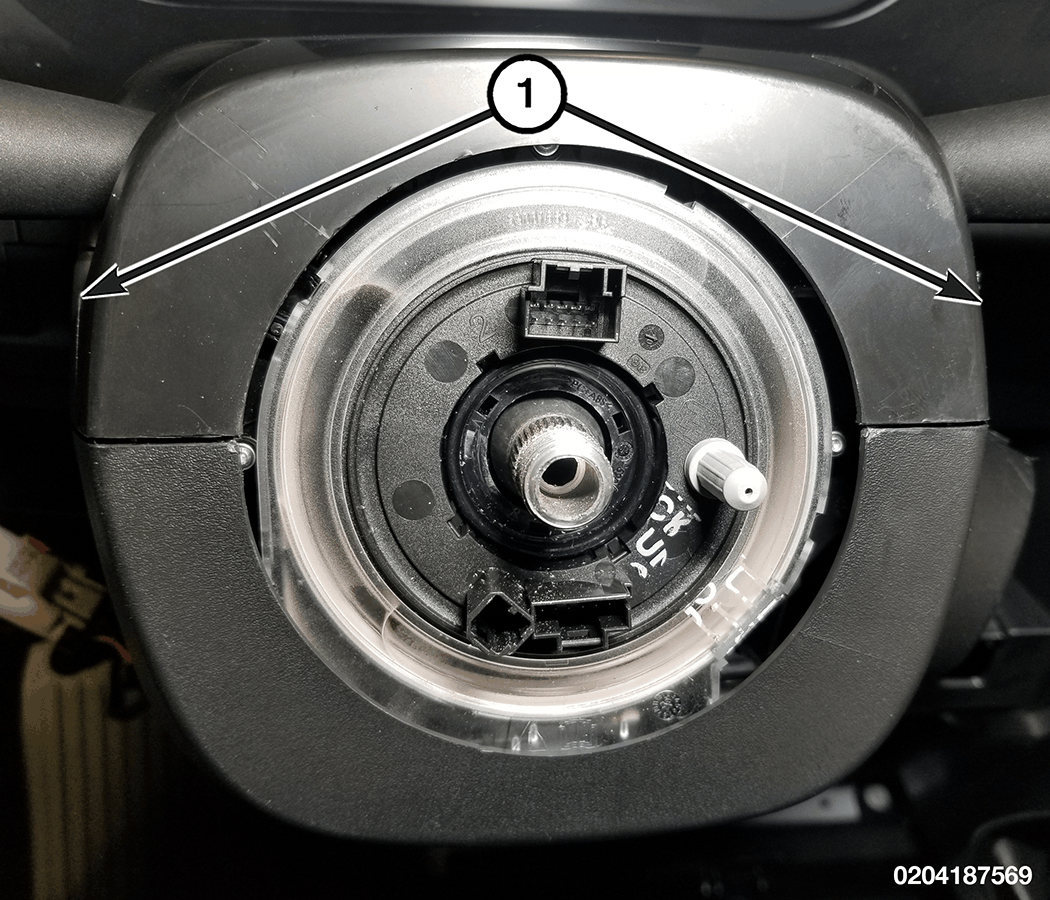

3. Install the two close out panels (1).

   Courtesy of CHRYSLER GROUP, LLC

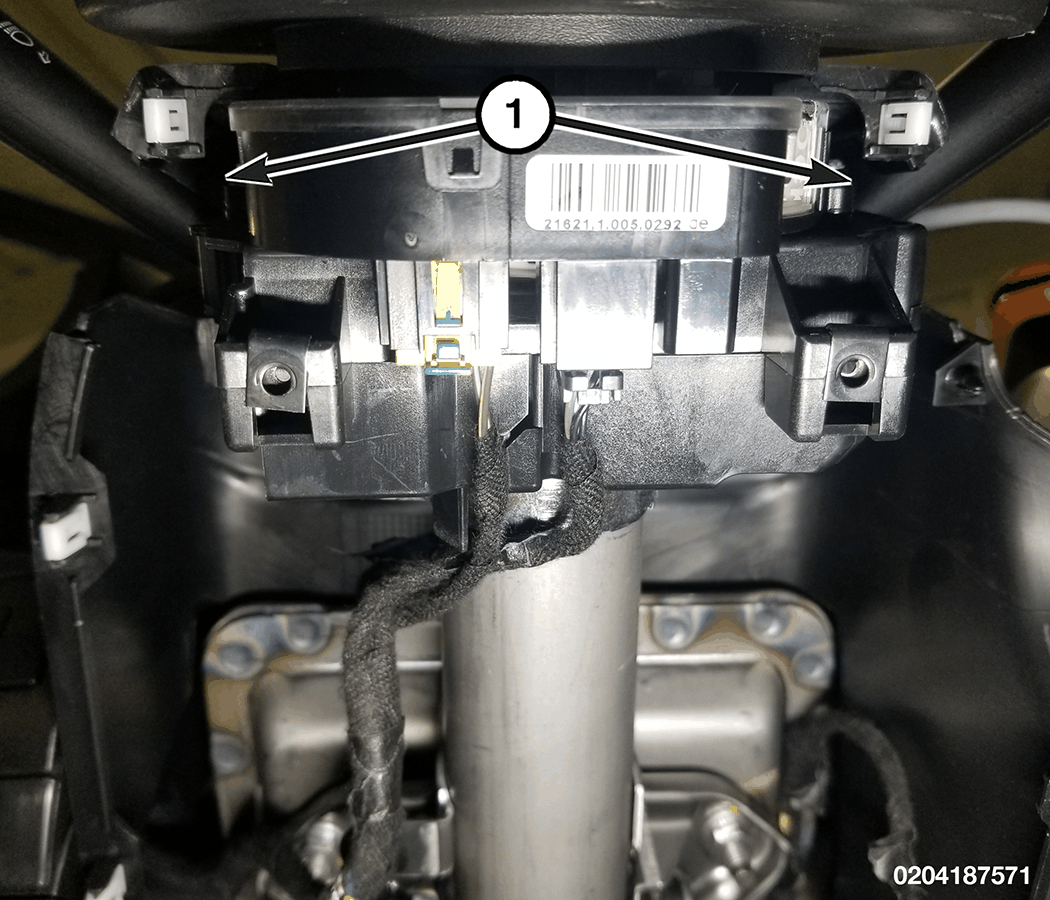

4. Install the two upper steering column shroud screws (1) and tighten securely.
5. Install the lower steering column lower shroud. Refer to SHROUD, STEERING COLUMN, UPPER, INSTALLATION .
6. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
