Shroud, Steering Column, Lower: Installation

Courtesy of CHRYSLER GROUP, LLC

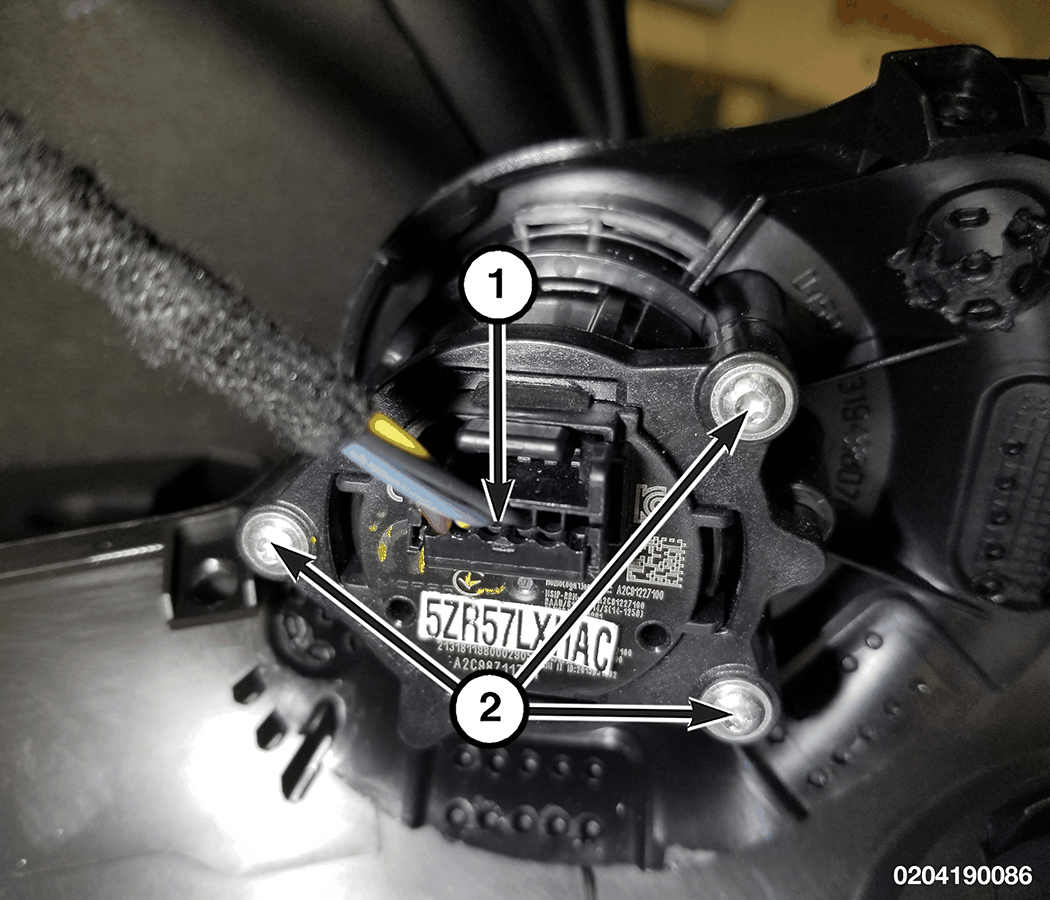

1. Position the Keyless Ignition Node (KIN) to the shroud.
2. Install the KIN screws (2) and tighten securely.
3. Position the shroud near the steering column.
4. Connect the KIN wire harness connector (1).
5. Install the lower shroud over the tilt lever and onto the column.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the four screws and tighten securely.
7. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
