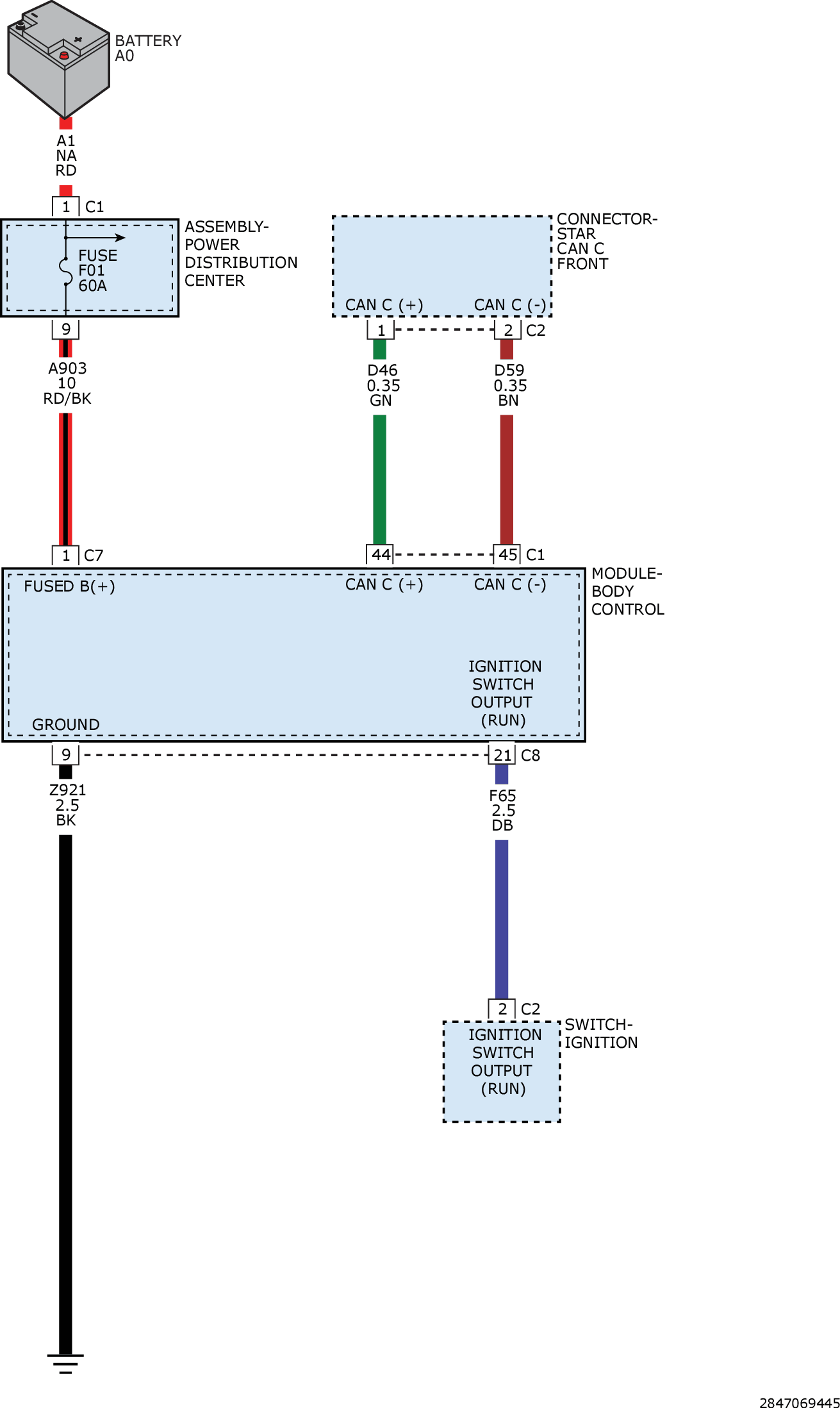

No Response From BCM (Body Control Module): Notes
WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|
| Possible Causes |
| FUSED B(+) CIRCUIT OPEN OR SHORTED |
| IGNITION SWITCH OUTPUT (RUN) CIRCUIT OPEN |
| GROUND CIRCUIT OPEN |
| CAN C BUS (+) CIRCUIT OPEN |
| CAN C BUS (-) CIRCUIT OPEN |
| BODY CONTROL MODULE (BCM) |
