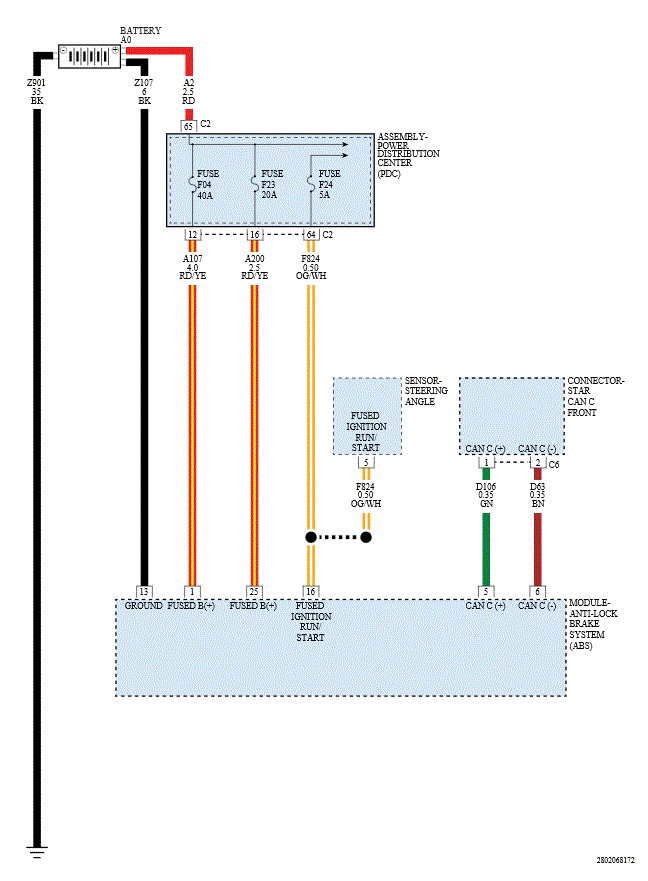

No Response From Abs (Anti-Lock Brake System) Module: Notes
WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|
| Possible Causes |
| FUSED B(+) CIRCUITS OPEN OR SHORTED |
| FUSED RUN/START RELAY OUTPUT CIRCUIT OPEN OR SHORTED |
| GROUND CIRCUITS OPEN OR HIGH RESISTANCE |
| CAN C BUS (+) CIRCUIT OPEN OR HIGH RESISTANCE |
| CAN C BUS (-) CIRCUIT OPEN OR HIGH RESISTANCE |
| ANTI-LOCK BRAKE SYSTEM (ABS) MODULE |
