Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.

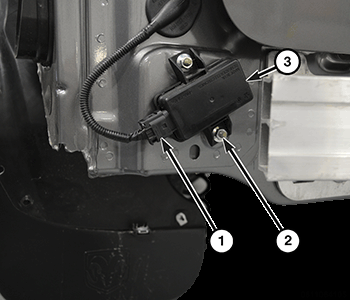

GC0171912Courtesy of CHRYSLER GROUP, LLC
  1. Position the Tire Pressure Module (TPM) (3) to the body.
  2. Install the TPM to body nuts (2), and tighten them securely.
  3. Connect the TPM wiring harness connector (1).
  4. Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION .
