Removal And Installation: Installation

  1. Position the stabilizer bar to the crossmember.
  2. Install the stabilizer bar brackets.

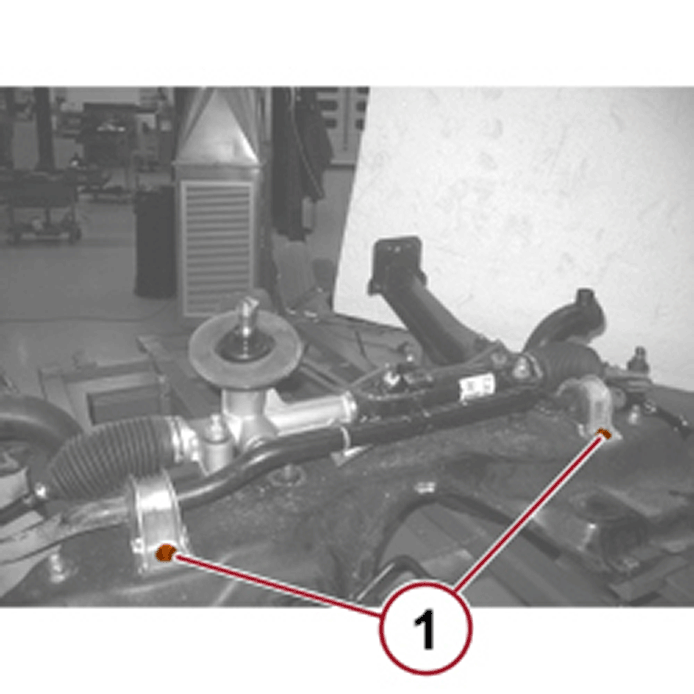

    GC0190610Courtesy of CHRYSLER GROUP, LLC
  3. Install the stabilizer bar bracket bolts (1). Tighten the stabilizer bar bracket bolts (1) to the proper torque specification. Refer to SPECIFICATIONS  .
  4. Install the stabilizer bar link to the stabilizer bar. Tighten the stabilizer bar link nut to the proper torque specification. Refer to SPECIFICATIONS  .
  5. Install the front crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
  6. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  7. Lower the vehicle.
